Datasheet TL431, TL431A, TL432, TL432A (Texas Instruments) - 9
| 制造商 | Texas Instruments |
| 描述 | Adjustable precision shunt regulators |
| 页数 / 页 | 32 / 9 — PARAMETER MEASUREMENT INFORMATION. Input. VKA. IKA. Vref. Figure 2. Test … |
| 文件格式/大小 | PDF / 520 Kb |
| 文件语言 | 英语 |

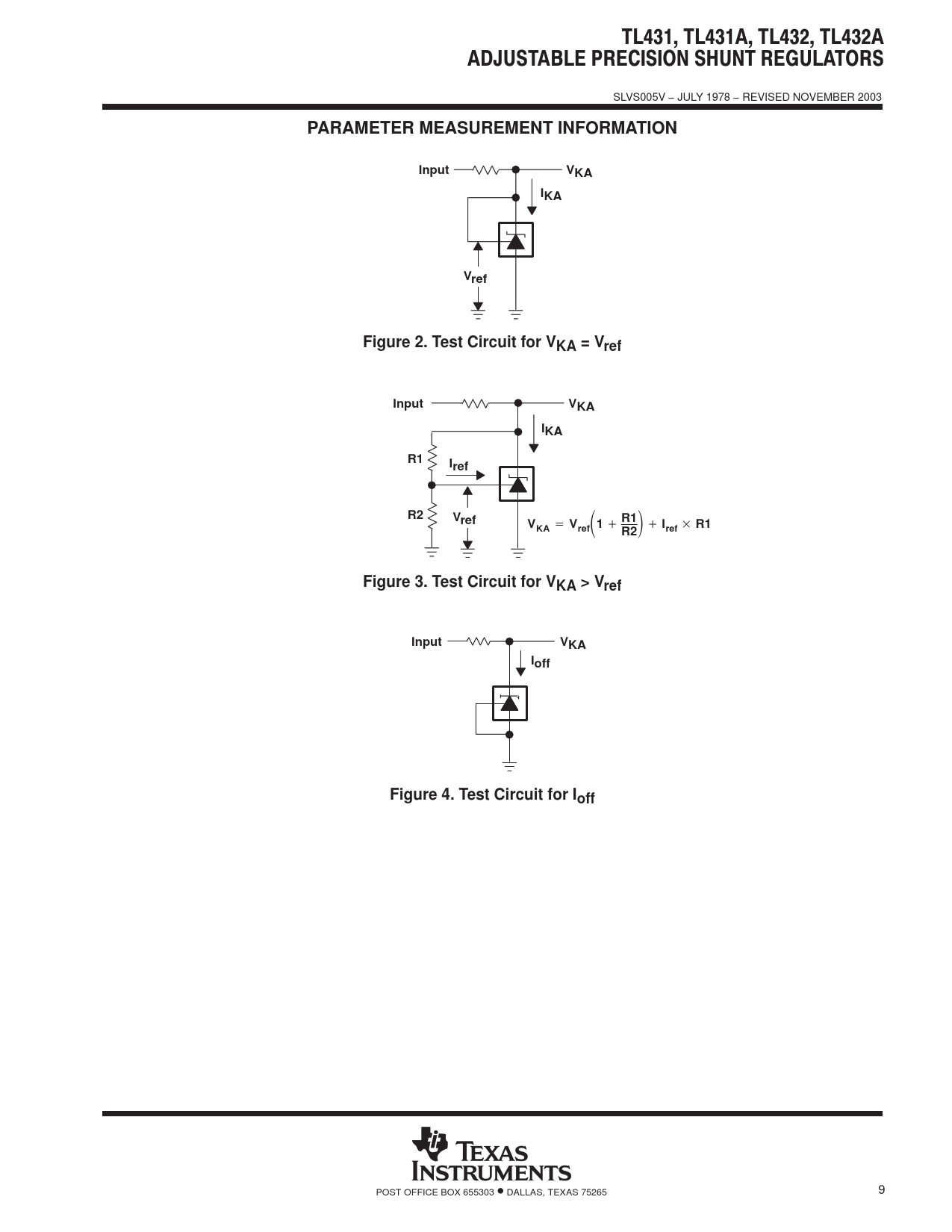

PARAMETER MEASUREMENT INFORMATION. Input. VKA. IKA. Vref. Figure 2. Test Circuit for VKA = Vref. Iref. ref
该数据表的模型线
TL431A
文件文字版本
SLVS005V − JULY 1978 − REVISED NOVEMBER 2003
PARAMETER MEASUREMENT INFORMATION Input VKA IKA Vref Figure 2. Test Circuit for VKA = Vref Input VKA IKA R1 Iref R2 Vref V
+
V
ǒ
1
)
R1
Ǔ )
I R1 KA ref R2 ref Figure 3. Test Circuit for VKA > Vref Input VKA Ioff Figure 4. Test Circuit for Ioff
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265 9
PARAMETER MEASUREMENT INFORMATION Input VKA IKA Vref Figure 2. Test Circuit for VKA = Vref Input VKA IKA R1 Iref R2 Vref V
+
V
ǒ
1
)
R1
Ǔ )
I R1 KA ref R2 ref Figure 3. Test Circuit for VKA > Vref Input VKA Ioff Figure 4. Test Circuit for Ioff
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265 9
