Datasheet RP517x (Ricoh) - 8
| 制造商 | Ricoh |
| 描述 | 0.3V Low Output Voltage Low Quiescent Current 300mA Buck DC/DC Converter |
| 页数 / 页 | 29 / 8 — RP517x. Product-specific Electrical Characteristics. RP517xxx1x. VOUT … |
| 文件格式/大小 | PDF / 2.3 Mb |
| 文件语言 | 英语 |
RP517x. Product-specific Electrical Characteristics. RP517xxx1x. VOUT [V]. Product name. Min. Typ. Max
该数据表的模型线
- RP517H031C-T1-FE RP517H031D-T1-FE RP517H041C-T1-FE RP517H041D-T1-FE RP517H051C-T1-FE RP517H051D-T1-FE RP517H061C-T1-FE RP517H061D-T1-FE RP517H071C-T1-FE RP517H071D-T1-FE RP517H081C-T1-FE RP517H081D-T1-FE RP517H091C-T1-FE RP517H091D-T1-FE RP517H101C-T1-FE RP517H101D-T1-FE RP517H111C-T1-FE RP517H111D-T1-FE RP517H121C-T1-FE RP517H121D-T1-FE RP517K031C-TR RP517K031D-TR RP517K041C-TR RP517K041D-TR RP517K051C-TR RP517K051D-TR RP517K061C-TR RP517K061D-TR RP517K071C-TR RP517K071D-TR RP517K081C-TR RP517K081D-TR RP517K091C-TR RP517K091D-TR RP517K101C-TR RP517K101D-TR RP517K111C-TR RP517K111D-TR RP517K121C-TR RP517K121D-TR RP517Z031C-TR-F RP517Z031D-TR-F RP517Z041C-TR-F RP517Z041D-TR-F RP517Z051C-TR-F RP517Z051D-TR-F RP517Z061C-TR-F RP517Z061D-TR-F RP517Z071C-TR-F RP517Z071D-TR-F RP517Z081C-TR-F RP517Z081D-TR-F RP517Z091C-TR-F RP517Z091D-TR-F RP517Z101C-TR-F RP517Z101D-TR-F RP517Z111C-TR-F RP517Z111D-TR-F RP517Z121C-TR-F RP517Z121D-TR-F
文件文字版本

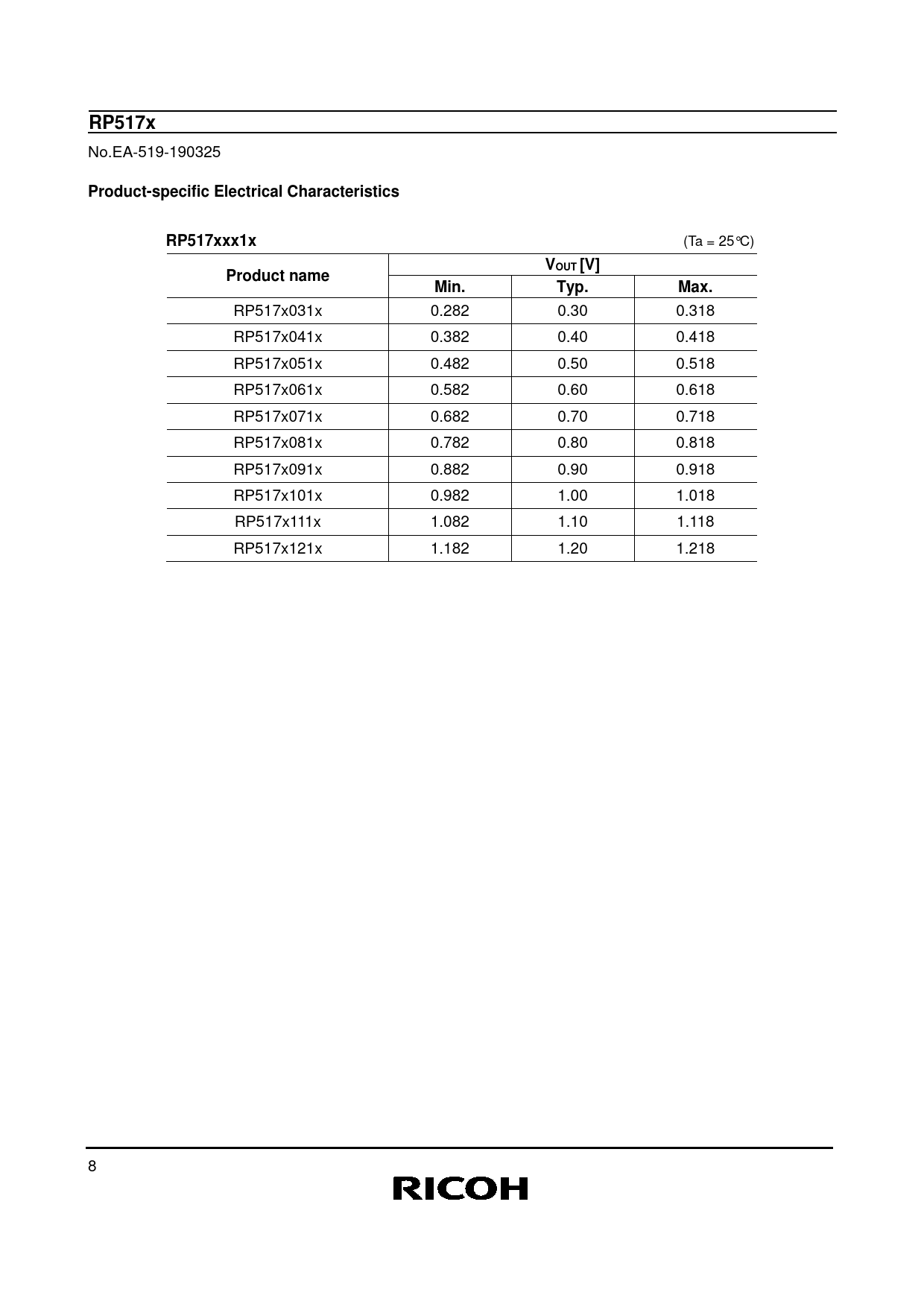

RP517x
No.EA-519-190325
Product-specific Electrical Characteristics RP517xxx1x
(Ta = 25°C)
VOUT [V] Product name Min. Typ. Max.
RP517x031x 0.282 0.30 0.318 RP517x041x 0.382 0.40 0.418 RP517x051x 0.482 0.50 0.518 RP517x061x 0.582 0.60 0.618 RP517x071x 0.682 0.70 0.718 RP517x081x 0.782 0.80 0.818 RP517x091x 0.882 0.90 0.918 RP517x101x 0.982 1.00 1.018 RP517x111x 1.082 1.10 1.118 RP517x121x 1.182 1.20 1.218 8
No.EA-519-190325
Product-specific Electrical Characteristics RP517xxx1x
(Ta = 25°C)
VOUT [V] Product name Min. Typ. Max.
RP517x031x 0.282 0.30 0.318 RP517x041x 0.382 0.40 0.418 RP517x051x 0.482 0.50 0.518 RP517x061x 0.582 0.60 0.618 RP517x071x 0.682 0.70 0.718 RP517x081x 0.782 0.80 0.818 RP517x091x 0.882 0.90 0.918 RP517x101x 0.982 1.00 1.018 RP517x111x 1.082 1.10 1.118 RP517x121x 1.182 1.20 1.218 8
