Datasheet S-35710M (ABLIC) - 6

制造商ABLIC
描述Programmable Wake-up Timer IC with Built-in Quartz Crystal
页数 / 页29 / 6 — WAKE-UP TIMER IC PROGRAMMABLE WAKE-UP TIMER IC WITH BUILT-IN QUARTZ …
修订版1.0_00
文件格式/大小PDF / 701 Kb
文件语言英语

WAKE-UP TIMER IC PROGRAMMABLE WAKE-UP TIMER IC WITH BUILT-IN QUARTZ CRYSTAL S-35710M. Equivalent Circuits of Pins

WAKE-UP TIMER IC PROGRAMMABLE WAKE-UP TIMER IC WITH BUILT-IN QUARTZ CRYSTAL S-35710M Equivalent Circuits of Pins

该数据表的模型线

文件文字版本

WAKE-UP TIMER IC PROGRAMMABLE WAKE-UP TIMER IC WITH BUILT-IN QUARTZ CRYSTAL S-35710M
Rev.1.0_00

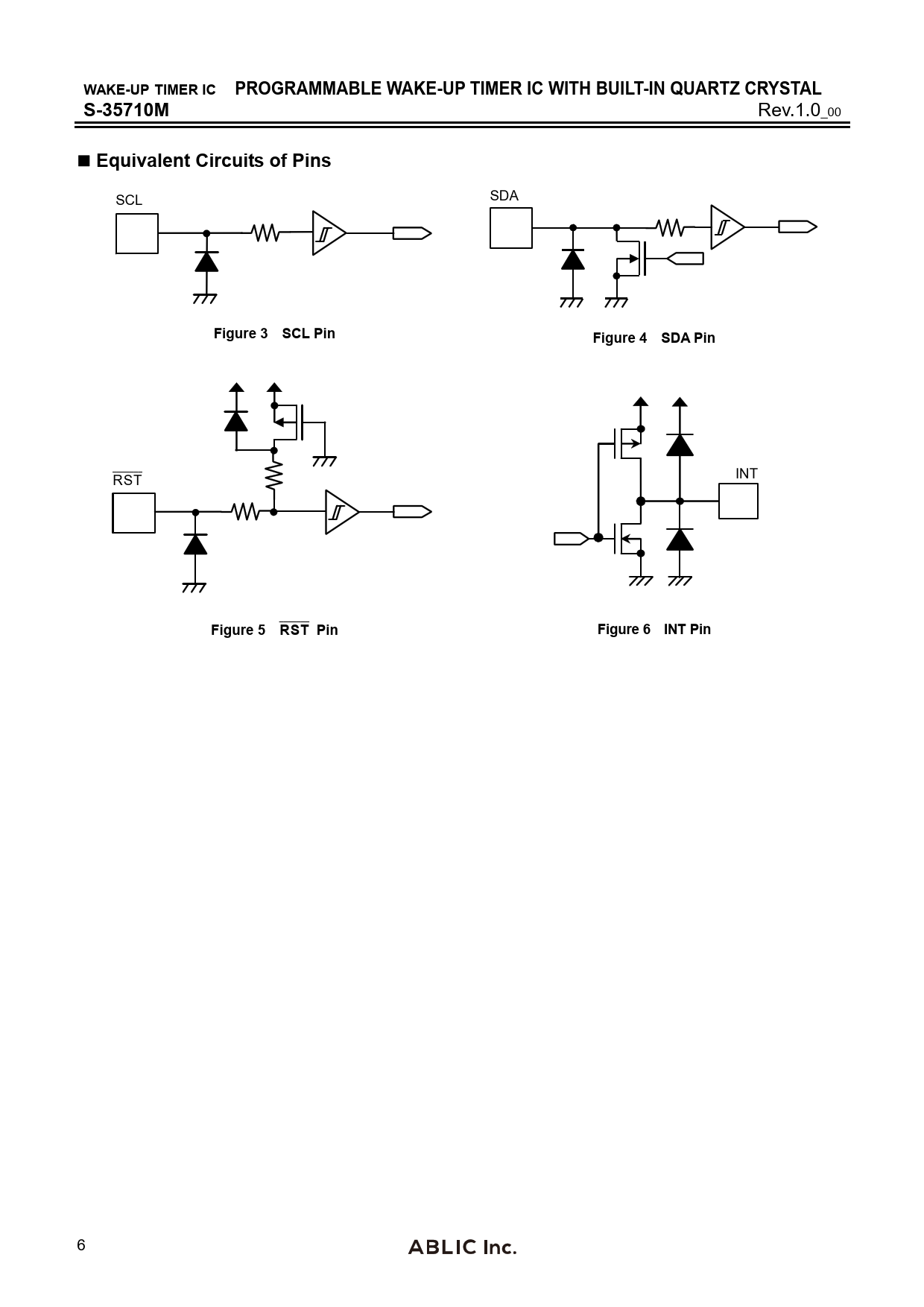

Equivalent Circuits of Pins
SCL SDA
Figure 3 SCL Pin Figure 4 SDA Pin
_______ RST INT _______
Figure 5 RST Pin Figure 6 INT Pin
