Datasheet S-35720 (ABLIC) - 2
| 制造商 | ABLIC |
| 描述 | Pin-selectable Wake-up Timer IC |
| 页数 / 页 | 20 / 2 — WAKE-UP TIMER IC PIN-SELECTABLE WAKE-UP TIMER IC S-35720 Series. Block … |
| 修订版 | 1.0_00 |
| 文件格式/大小 | PDF / 414 Kb |
| 文件语言 | 英语 |

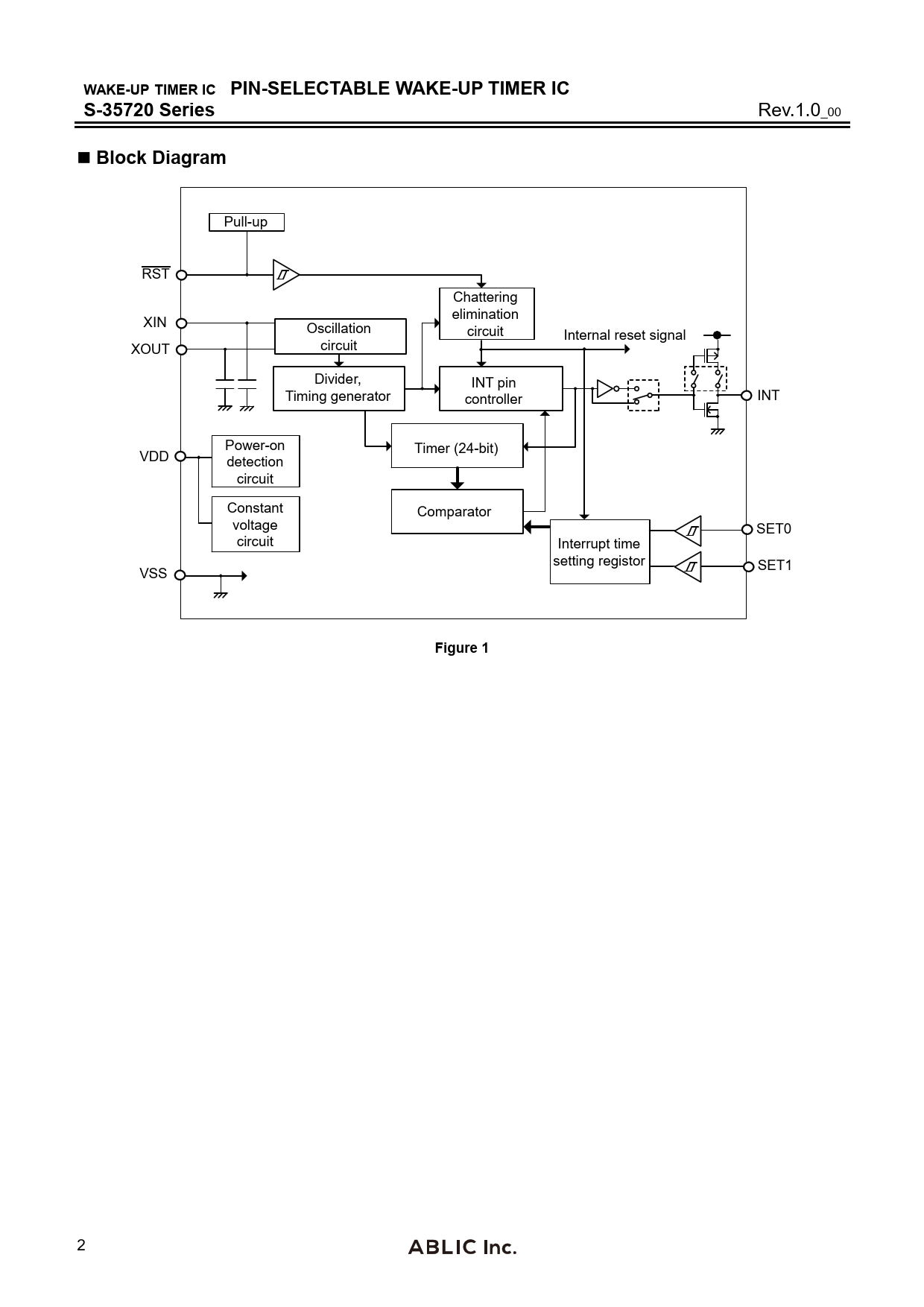

WAKE-UP TIMER IC PIN-SELECTABLE WAKE-UP TIMER IC S-35720 Series. Block Diagram. Figure 1
该数据表的模型线
文件文字版本
WAKE-UP TIMER IC PIN-SELECTABLE WAKE-UP TIMER IC S-35720 Series
Rev.1.0_00
Block Diagram
Pull-up RST Chattering elimination XIN Oscillation circuit Internal reset signal circuit XOUT Divider, INT pin Timing generator controller INT Power-on Timer (24-bit) VDD detection circuit Constant Comparator voltage SET0 circuit Interrupt time setting registor SET1 VSS
Figure 1
