Datasheet S-1318 (ABLIC) - 7
| 制造商 | ABLIC |
| 描述 | 5.5 V Input, 100 mA, 95 nA Super Low Current Consumption Voltage Regulator |
| 页数 / 页 | 42 / 7 — 5.5 V INPUT, 100 mA, 95 nA SUPER LOW CURRENT CONSUMPTION VOLTAGE … |
| 修订版 | 1.0_00 |
| 文件格式/大小 | PDF / 729 Kb |
| 文件语言 | 英语 |
5.5 V INPUT, 100 mA, 95 nA SUPER LOW CURRENT CONSUMPTION VOLTAGE REGULATOR. S-1318 Series. Pin Configurations. 1. SOT-23-5
该数据表的模型线
- S-1318A12-A4T2U4 S-1318A12-M5T1U4 S-1318A18-A4T2U4 S-1318A18-M5T1U4 S-1318A22-A4T2U4 S-1318A22-M5T1U4 S-1318A23-A4T2U4 S-1318A23-M5T1U4 S-1318A25-A4T2U4 S-1318A25-M5T1U4 S-1318A28-A4T2U4 S-1318A28-M5T1U4 S-1318A30-A4T2U4 S-1318A30-M5T1U4 S-1318A33-A4T2U4 S-1318A33-M5T1U4 S-1318B12-A4T2U4 S-1318B12-M5T1U4 S-1318B18-A4T2U4 S-1318B18-M5T1U4 S-1318B22-A4T2U4 S-1318B22-M5T1U4 S-1318B23-A4T2U4 S-1318B23-M5T1U4 S-1318B25-A4T2U4 S-1318B25-M5T1U4 S-1318B28-A4T2U4 S-1318B28-M5T1U4 S-1318B30-A4T2U4 S-1318B30-M5T1U4 S-1318B33-A4T2U4 S-1318B33-M5T1U4 S-1318C12-A4T2U4 S-1318C12-M5T1U4 S-1318C18-A4T2U4 S-1318C18-M5T1U4 S-1318C22-A4T2U4 S-1318C22-M5T1U4 S-1318C23-A4T2U4 S-1318C23-M5T1U4 S-1318C25-A4T2U4 S-1318C25-M5T1U4 S-1318C28-A4T2U4 S-1318C28-M5T1U4 S-1318C30-A4T2U4 S-1318C30-M5T1U4 S-1318C33-A4T2U4 S-1318C33-M5T1U4 S-1318D12-A4T2U4 S-1318D12-M5T1U4 S-1318D18-A4T2U4 S-1318D18-M5T1U4 S-1318D22-A4T2U4 S-1318D22-M5T1U4 S-1318D23-A4T2U4 S-1318D23-M5T1U4 S-1318D25-A4T2U4 S-1318D25-M5T1U4 S-1318D28-A4T2U4 S-1318D28-M5T1U4 S-1318D30-A4T2U4 S-1318D30-M5T1U4 S-1318D33-A4T2U4 S-1318D33-M5T1U4
文件文字版本
5.5 V INPUT, 100 mA, 95 nA SUPER LOW CURRENT CONSUMPTION VOLTAGE REGULATOR
Rev.1.1_00

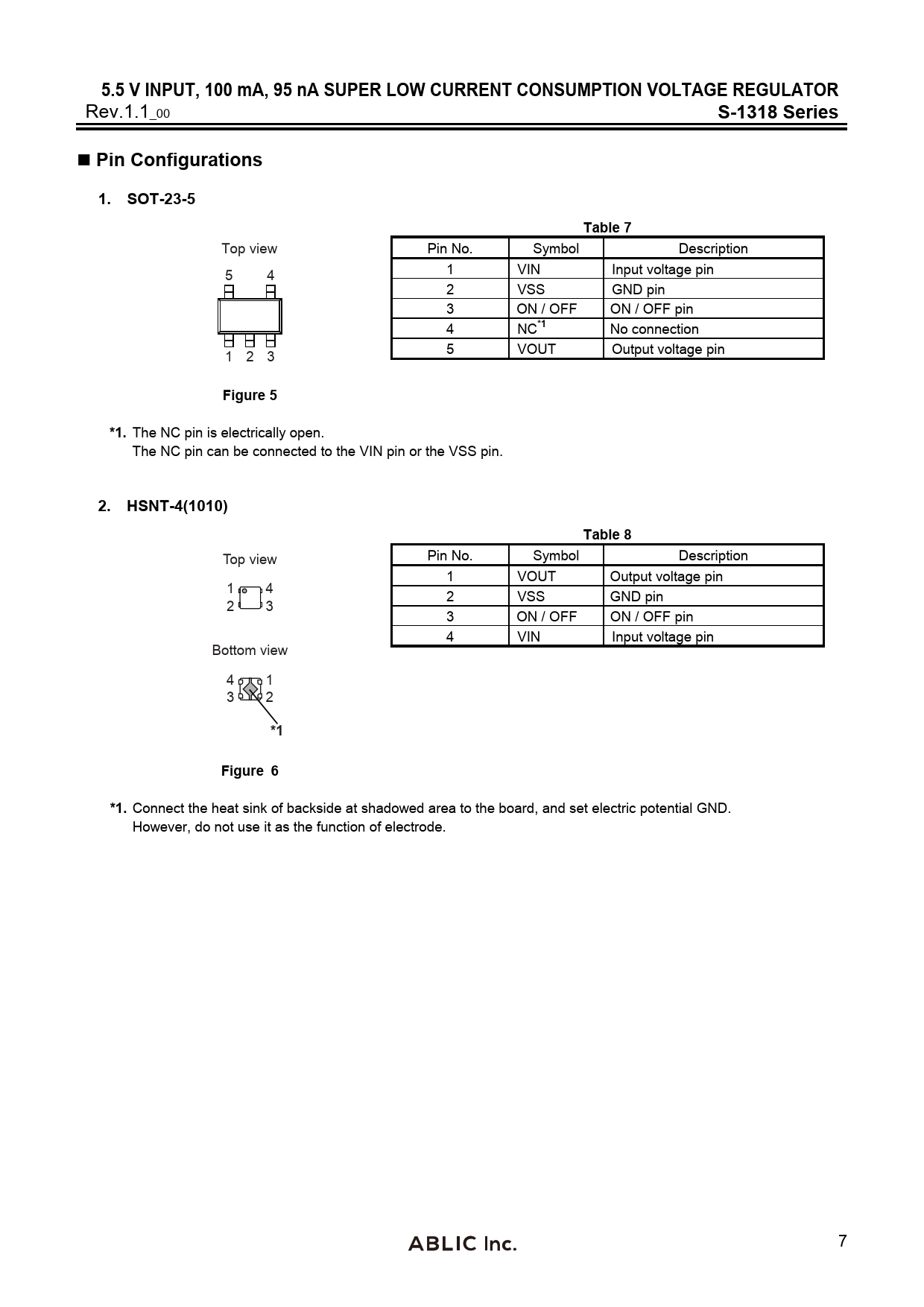

S-1318 Series Pin Configurations 1. SOT-23-5 Table 7
Top view Pin No. Symbol Description 5 4 1 VIN Input voltage pin 2 VSS GND pin 3 ON / OFF ON / OFF pin 4 NC
*1
No connection 1 2 3 5 VOUT Output voltage pin
Figure 5 *1.
The NC pin is electrically open. The NC pin can be connected to the VIN pin or the VSS pin.
2. HSNT-4(1010) Table 8
Top view Pin No. Symbol Description 1 VOUT Output voltage pin 1 4 2 VSS GND pin 2 3 3 ON / OFF ON / OFF pin 4 VIN Input voltage pin Bottom view 4 1 3 2
*1 Figure 6 *1.
Connect the heat sink of backside at shadowed area to the board, and set electric potential GND. However, do not use it as the function of electrode. 7 Document Outline 空白ページ 空白ページ 空白ページ 空白ページ
