Datasheet BL-HRGB32M-TRB (American Bright) - 4
| 制造商 | American Bright |
| 描述 | RGB LED device with built-in IC |
| 页数 / 页 | 9 / 4 — BRIGHT LED ELECTRONICS CORP. Typical application circuit |
| 文件格式/大小 | PDF / 619 Kb |
| 文件语言 | 英语 |
BRIGHT LED ELECTRONICS CORP. Typical application circuit
该数据表的模型线
文件文字版本
BRIGHT LED ELECTRONICS CORP.
BL-HRGB32M-TRB ●
Typical application circuit

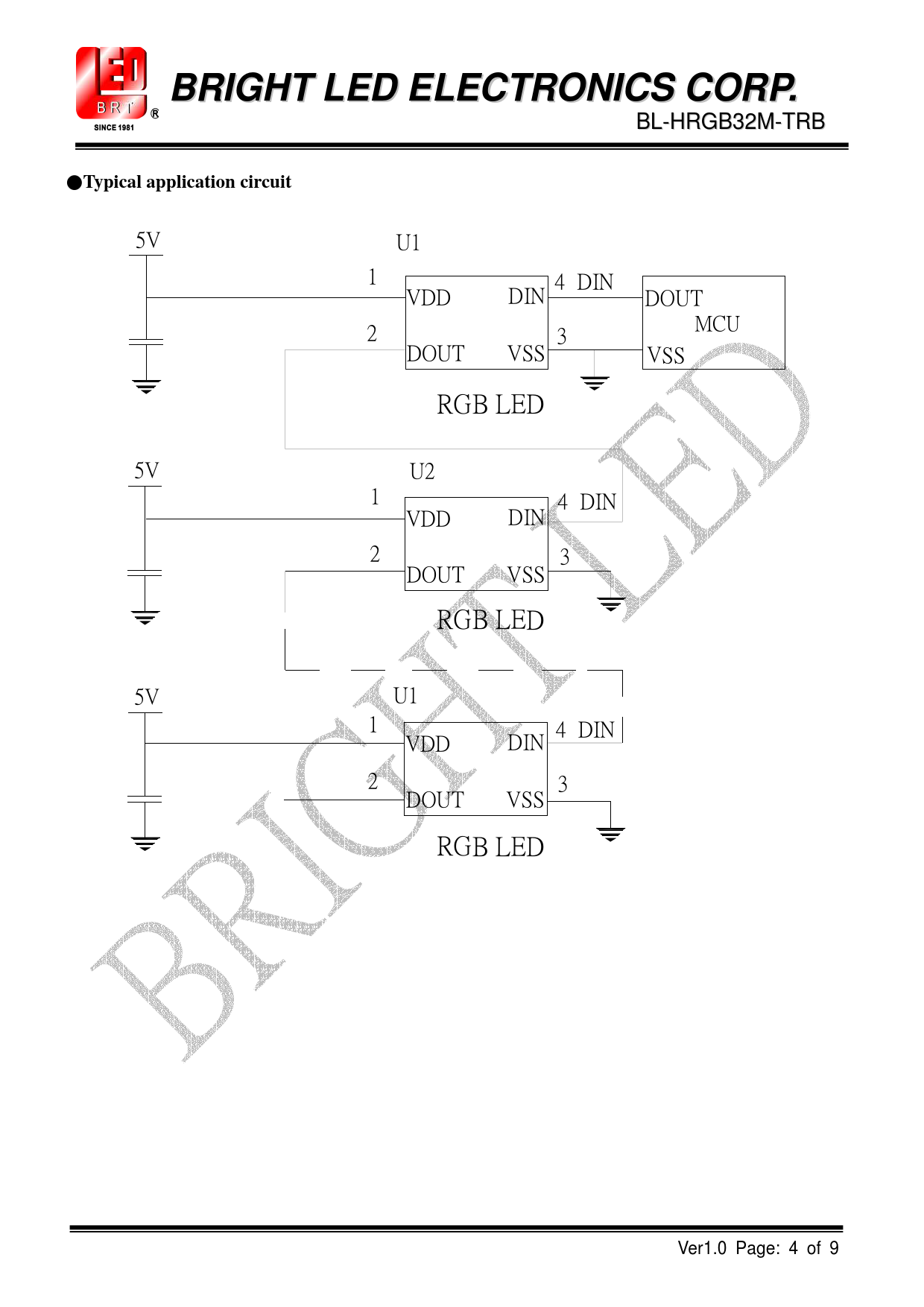

5V U1 1 4 DIN VDD DIN DOUT 2 MCU 3 DOUT VSS VSS RGB LED 5V U2 1 4 DIN VDD DIN 2 3 DOUT VSS RGB LED 5V U1 1 4 DIN VDD DIN 2 3 DOUT VSS RGB LED Ver1.0 Page: 4 of 9
