Datasheet Addendum XPP736312.500000I (IDT)
| 制造商 | IDT |
| 描述 | 150fs Quartz-based PLL Oscillator |
| 页数 / 页 | 2 / 1 — 312.500000MHz Crystal. XPP736312.500000I. Oscillator. Datasheet Addendum. … |
| 修订版 | 20190221 |
| 文件格式/大小 | PDF / 34 Kb |
| 文件语言 | 英语 |
312.500000MHz Crystal. XPP736312.500000I. Oscillator. Datasheet Addendum. General Configuration. Parameter. Value. Pin Assignments
该数据表的模型线
文件文字版本

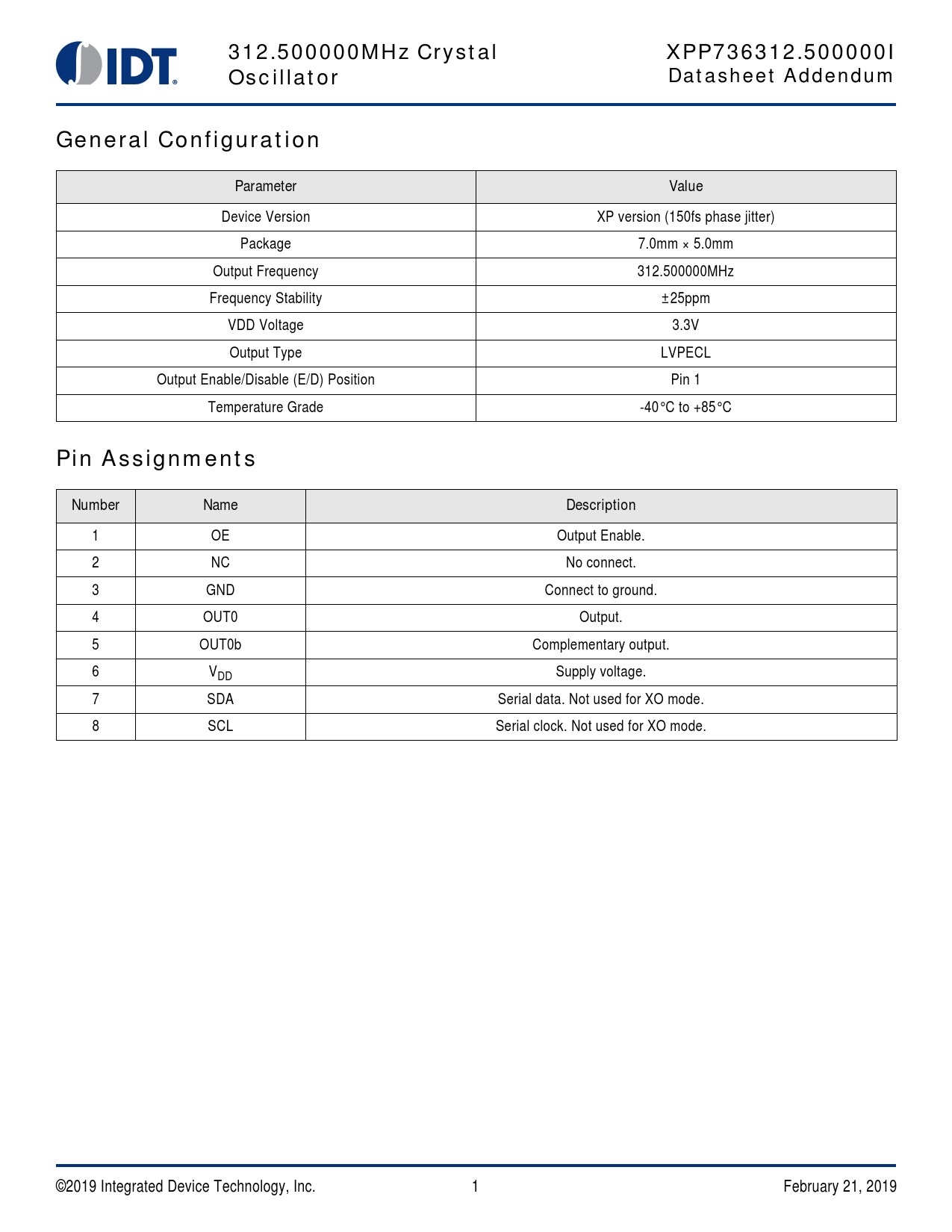

312.500000MHz Crystal XPP736312.500000I Oscillator Datasheet Addendum General Configuration Parameter Value
Device Version XP version (150fs phase jitter) Package 7.0mm × 5.0mm Output Frequency 312.500000MHz Frequency Stability ±25ppm VDD Voltage 3.3V Output Type LVPECL Output Enable/Disable (E/D) Position Pin 1 Temperature Grade -40°C to +85°C
Pin Assignments Number Name Description
1 OE Output Enable. 2 NC No connect. 3 GND Connect to ground. 4 OUT0 Output. 5 OUT0b Complementary output. 6 VDD Supply voltage. 7 SDA Serial data. Not used for XO mode. 8 SCL Serial clock. Not used for XO mode. ©2019 Integrated Device Technology, Inc. 1 February 21, 2019 Document Outline General Configuration Pin Assignments Revision History
