Datasheet LZ1-00NW05 (LedEngin)
| 制造商 | LedEngin |
| 描述 | High Luminous Efficacy 5W Neutral White LED |
| 页数 / 页 | 13 / 1 — Led. LZ1-00NW05 |
| 文件格式/大小 | PDF / 280 Kb |
| 文件语言 | 英语 |

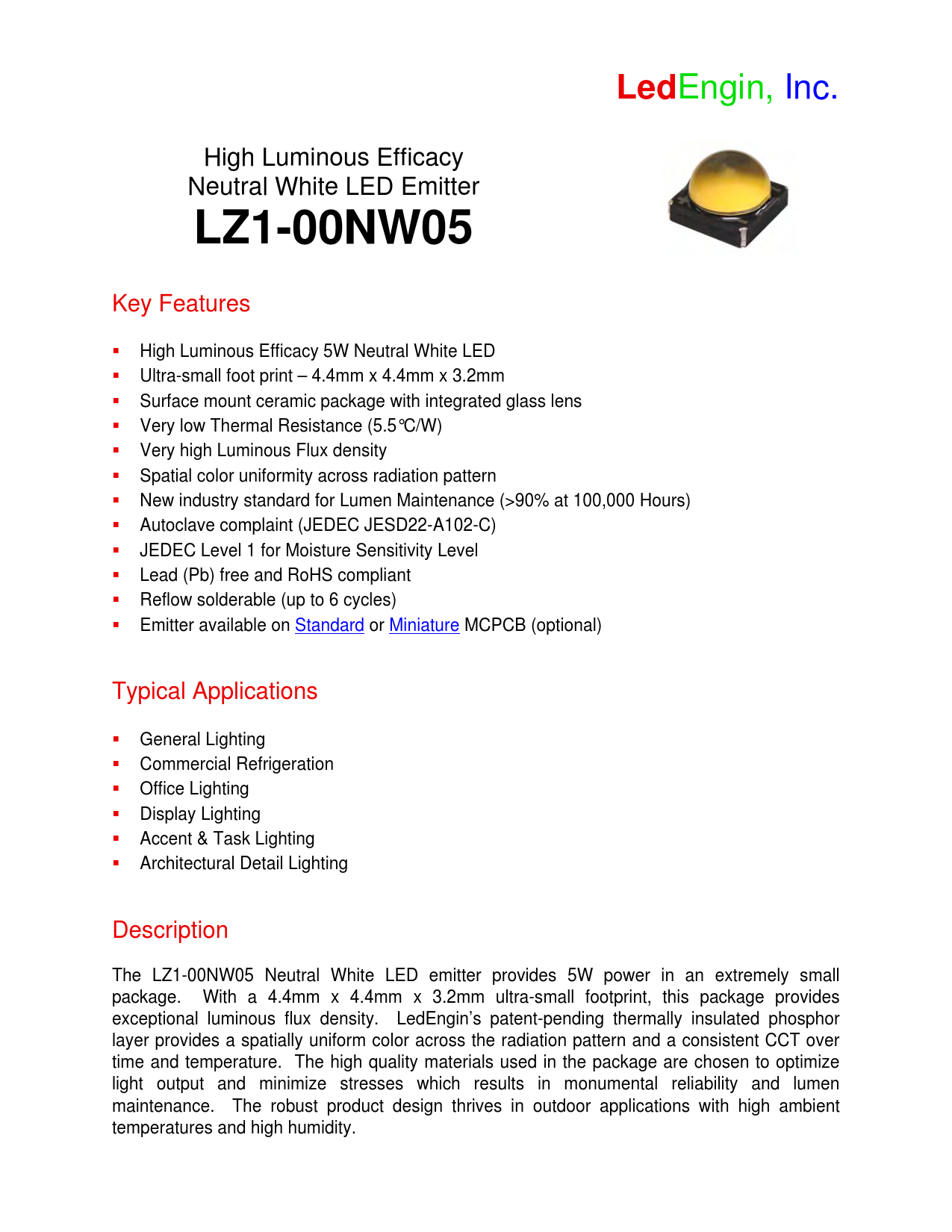

Led. LZ1-00NW05
该数据表的模型线
文件文字版本
Led
Engin, Inc. High Luminous Efficacy Neutral White LED Emitter
LZ1-00NW05
Key Features High Luminous Efficacy 5W Neutral White LED Ultra-small foot print – 4.4mm x 4.4mm x 3.2mm Surface mount ceramic package with integrated glass lens Very low Thermal Resistance (5.5°C/W) Very high Luminous Flux density Spatial color uniformity across radiation pattern New industry standard for Lumen Maintenance (>90% at 100,000 Hours) Autoclave complaint (JEDEC JESD22-A102-C) JEDEC Level 1 for Moisture Sensitivity Level Lead (Pb) free and RoHS compliant Reflow solderable (up to 6 cycles) Emitter available on Standard or Miniature MCPCB (optional) Typical Applications General Lighting Commercial Refrigeration Office Lighting Display Lighting Accent & Task Lighting Architectural Detail Lighting Description The LZ1-00NW05 Neutral White LED emitter provides 5W power in an extremely small package. With a 4.4mm x 4.4mm x 3.2mm ultra-small footprint, this package provides exceptional luminous flux density. LedEngin’s patent-pending thermally insulated phosphor layer provides a spatially uniform color across the radiation pattern and a consistent CCT over time and temperature. The high quality materials used in the package are chosen to optimize light output and minimize stresses which results in monumental reliability and lumen maintenance. The robust product design thrives in outdoor applications with high ambient temperatures and high humidity.
Engin, Inc. High Luminous Efficacy Neutral White LED Emitter
LZ1-00NW05
Key Features High Luminous Efficacy 5W Neutral White LED Ultra-small foot print – 4.4mm x 4.4mm x 3.2mm Surface mount ceramic package with integrated glass lens Very low Thermal Resistance (5.5°C/W) Very high Luminous Flux density Spatial color uniformity across radiation pattern New industry standard for Lumen Maintenance (>90% at 100,000 Hours) Autoclave complaint (JEDEC JESD22-A102-C) JEDEC Level 1 for Moisture Sensitivity Level Lead (Pb) free and RoHS compliant Reflow solderable (up to 6 cycles) Emitter available on Standard or Miniature MCPCB (optional) Typical Applications General Lighting Commercial Refrigeration Office Lighting Display Lighting Accent & Task Lighting Architectural Detail Lighting Description The LZ1-00NW05 Neutral White LED emitter provides 5W power in an extremely small package. With a 4.4mm x 4.4mm x 3.2mm ultra-small footprint, this package provides exceptional luminous flux density. LedEngin’s patent-pending thermally insulated phosphor layer provides a spatially uniform color across the radiation pattern and a consistent CCT over time and temperature. The high quality materials used in the package are chosen to optimize light output and minimize stresses which results in monumental reliability and lumen maintenance. The robust product design thrives in outdoor applications with high ambient temperatures and high humidity.
