Datasheet MAX4626, MAX4627, MAX4628 (Maxim)
| 制造商 | Maxim |
| 描述 | 0.5Ω, Low-Voltage, Single-Supply SPST Analog Switches |
| 页数 / 页 | 9 / 1 — MAX4626/MAX4627/. 0.5Ω, Low-Voltage, Single-Supply. MAX4628. SPST Analog … |
| 文件格式/大小 | PDF / 691 Kb |
| 文件语言 | 英语 |
MAX4626/MAX4627/. 0.5Ω, Low-Voltage, Single-Supply. MAX4628. SPST Analog Switches. General Description. Benefits and Features
该数据表的模型线
文件文字版本

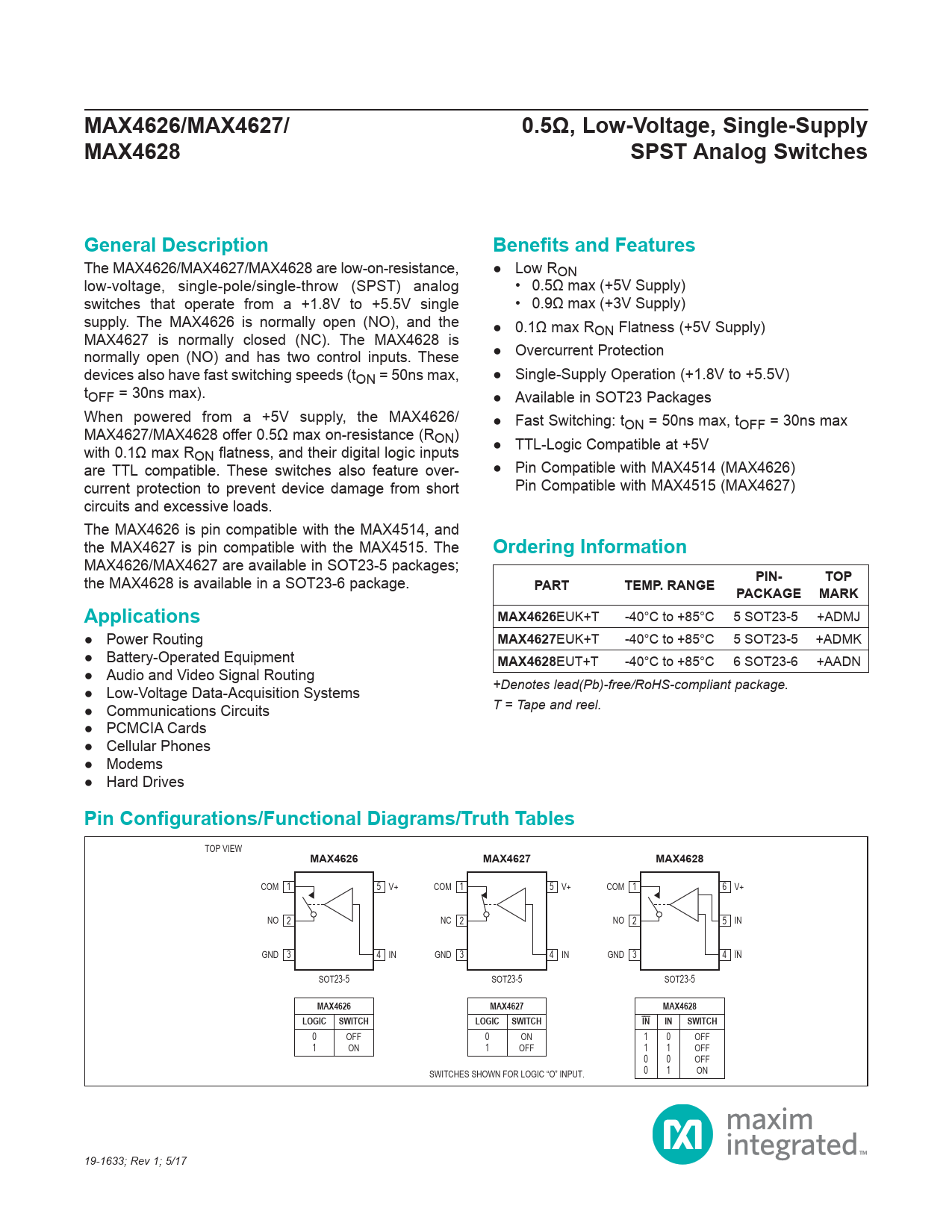

MAX4626/MAX4627/ 0.5Ω, Low-Voltage, Single-Supply MAX4628 SPST Analog Switches General Description Benefits and Features
The MAX4626/MAX4627/MAX4628 are low-on-resistance, ● Low RON low-voltage, single-pole/single-throw (SPST) analog • 0.5Ω max (+5V Supply) switches that operate from a +1.8V to +5.5V single • 0.9Ω max (+3V Supply) supply. The MAX4626 is normally open (NO), and the ● 0.1Ω max R MAX4627 is normally closed (NC). The MAX4628 is ON Flatness (+5V Supply) normally open (NO) and has two control inputs. These ● Overcurrent Protection devices also have fast switching speeds (tON = 50ns max, ● Single-Supply Operation (+1.8V to +5.5V) tOFF = 30ns max). ● Available in SOT23 Packages When powered from a +5V supply, the MAX4626/ ● Fast Switching: tON = 50ns max, tOFF = 30ns max MAX4627/MAX4628 offer 0.5Ω max on-resistance (RON) with 0.1Ω max R ● TTL-Logic Compatible at +5V ON flatness, and their digital logic inputs are TTL compatible. These switches also feature over- ● Pin Compatible with MAX4514 (MAX4626) current protection to prevent device damage from short Pin Compatible with MAX4515 (MAX4627) circuits and excessive loads. The MAX4626 is pin compatible with the MAX4514, and the MAX4627 is pin compatible with the MAX4515. The
Ordering Information
MAX4626/MAX4627 are available in SOT23-5 packages; the MAX4628 is available in a SOT23-6 package.
PART TEMP. RANGE PIN- TOP PACKAGE MARK Applications MAX4626
EUK+T -40°C to +85°C 5 SOT23-5 +ADMJ ● Power Routing
MAX4627
EUK+T -40°C to +85°C 5 SOT23-5 +ADMK ● Battery-Operated Equipment
MAX4628
EUT+T -40°C to +85°C 6 SOT23-6 +AADN ● Audio and Video Signal Routing ● Low-Voltage Data-Acquisition Systems +Denotes lead(Pb)-free/RoHS-compliant package. ● Communications Circuits T = Tape and reel. ● PCMCIA Cards ● Cellular Phones ● Modems ● Hard Drives
Pin Configurations/Functional Diagrams/Truth Tables
TOP VIEW
MAX4626 MAX4627 MAX4628
COM 1 5 V+ COM 1 5 V+ COM 1 6 V+ NO 2 NC 2 NO 2 5 IN GND 3 4 IN GND 3 4 IN GND 3 4 IN SOT23-5 SOT23-5 SOT23-5
MAX4626 MAX4627 MAX4628 LOGIC SWITCH LOGIC SWITCH IN IN SWITCH
0 OFF 0 ON 1 0 OFF 1 ON 1 OFF 1 1 OFF 0 0 OFF SWITCHES SHOWN FOR LOGIC “O” INPUT. 0 1 ON 19-1633; Rev 1; 5/17
