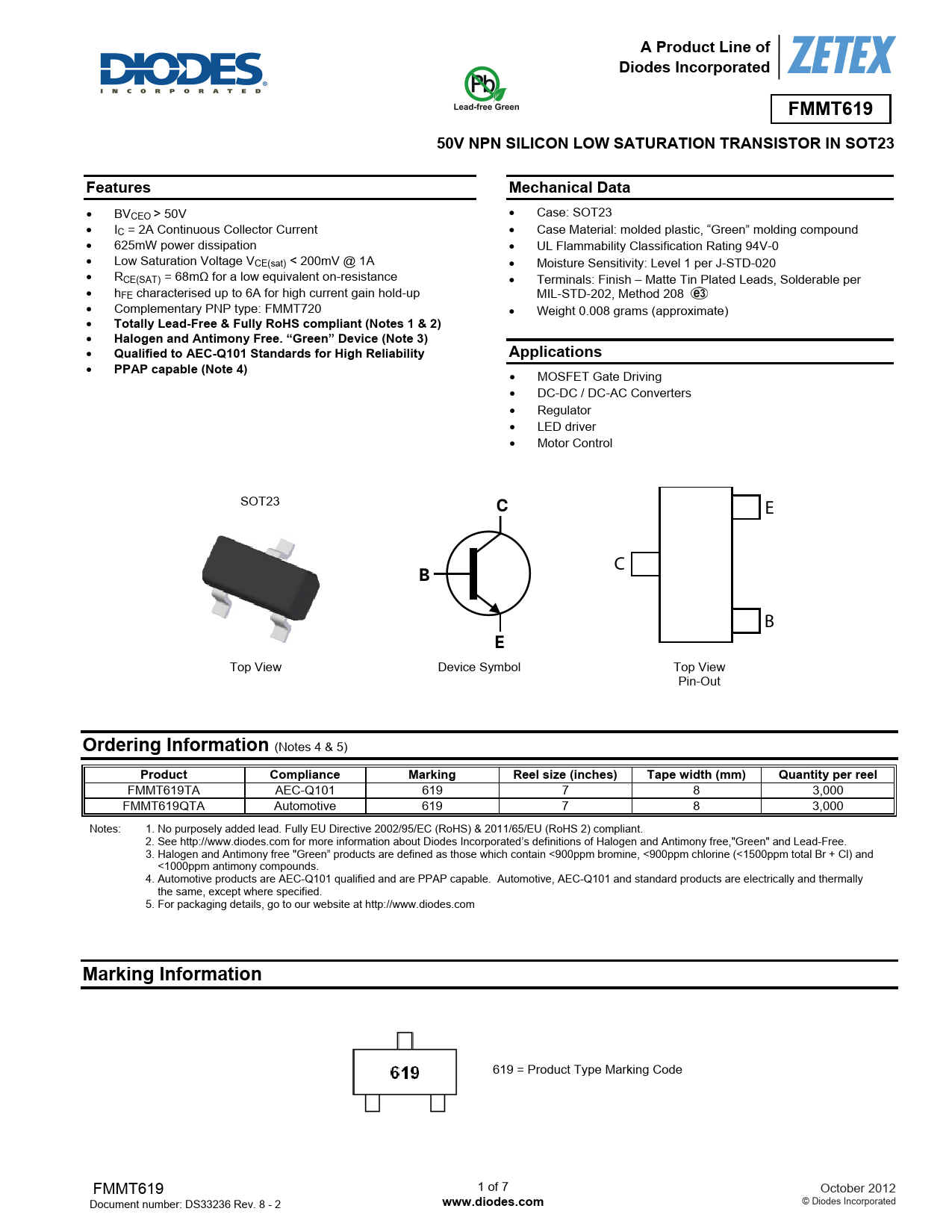

A Product Line of. Diodes Incorporated. FMMT619. 50V NPN SILICON LOW SATURATION TRANSISTOR IN SOT23. Features. Mechanical Data
该数据表的模型线
文件文字版本
A Product Line of Diodes Incorporated FMMT619 50V NPN SILICON LOW SATURATION TRANSISTOR IN SOT23 Features Mechanical Data
• BVCEO > 50V • Case: SOT23 • IC = 2A Continuous Collector Current • Case Material: molded plastic, “Green” molding compound • 625mW power dissipation • UL Flammability Classification Rating 94V-0 • Low Saturation Voltage VCE(sat) < 200mV @ 1A • Moisture Sensitivity: Level 1 per J-STD-020 • RCE(SAT) = 68mΩ for a low equivalent on-resistance • Terminals: Finish – Matte Tin Plated Leads, Solderable per • hFE characterised up to 6A for high current gain hold-up MIL-STD-202, Method 208 • Complementary PNP type: FMMT720 • Weight 0.008 grams (approximate) •
Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)
•
Halogen and Antimony Free. “Green” Device (Note 3)
•
Qualified to AEC-Q101 Standards for High Reliability Applications
•
PPAP capable (Note 4)
• MOSFET Gate Driving • DC-DC / DC-AC Converters • Regulator • LED driver • Motor Control SOT23
C
E C
B
B
E
Top View Device Symbol Top View Pin-Out
Ordering Information
(Notes 4 & 5)
Product Compliance Marking Reel size (inches) Tape width (mm) Quantity per reel
FMMT619TA AEC-Q101 619 7 8 3,000 FMMT619QTA Automotive 619 7 8 3,000 Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. 2. See http://www.diodes.com for more information about Diodes Incorporated’s definitions of Halogen and Antimony free,"Green" and Lead-Free. 3. Halogen and Antimony free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony compounds. 4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally the same, except where specified. 5. For packaging details, go to our website at http://www.diodes.com
Marking Information
619 = Product Type Marking Code FMMT619 1 of 7 October 2012 Document number: DS33236 Rev. 8 - 2
