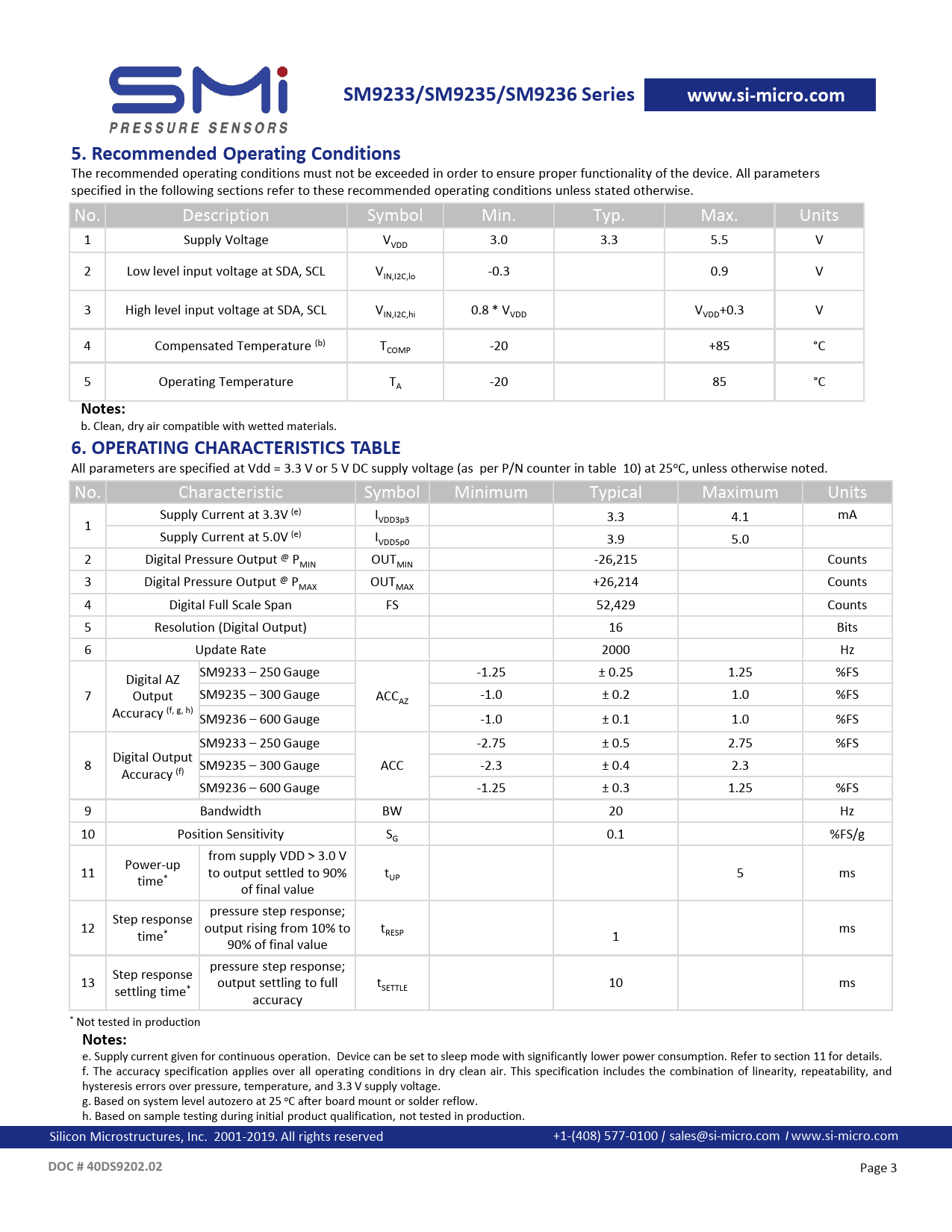

SM9233/SM9235/SM9236 Series www.si-micro.com 5. Recommended Operating Conditions
27 The recommended operating conditions must not be exceeded in order to ensure proper functionality of the device. All parameters 45 specified in the following sections refer to these recommended operating conditions unless stated otherwise. 131 No. Description Symbol Min. Typ. Max. Units 1 Supply Voltage VVDD 3.0 3.3 5.5 V 167 2 Low level input voltage at SDA, SCL VIN,I2C,lo -0.3 0.9 V 170 175 3 High level input voltage at SDA, SCL VIN,I2C,hi 0.8 * VVDD V VDD+0.3 V 4 Compensated Temperature (b) TCOMP -20 +85 °C 169 0 5 Operating Temperature TA -20 85 °C 61
Notes:
b. Clean, dry air compatible with wetted materials.
6. OPERATING CHARACTERISTICS TABLE
All parameters are specified at Vdd = 3.3 V or 5 V DC supply voltage (as per P/N counter in table 10) at 25oC, unless otherwise noted. No. Characteristic Symbol Minimum Typical Maximum Units Supply Current at 3.3V (e) I 1 VDD3p3 3.3 4.1 mA Supply Current at 5.0V (e) IVDD5p0 3.9 5.0 2 Digital Pressure Output @ PMIN OUTMIN -26,215 Counts 3 Digital Pressure Output @ PMAX OUTMAX +26,214 Counts 4 Digital Full Scale Span FS 52,429 Counts 5 Resolution (Digital Output) 16 Bits 6 Update Rate 2000 Hz SM9233 – 250 Gauge -1.25 ± 0.25 1.25 %FS Digital AZ 7 Output SM9235 – 300 Gauge ACC -1.0 ± 0.2 1.0 %FS AZ Accuracy (f, g, h) SM9236 – 600 Gauge -1.0 ± 0.1 1.0 %FS SM9233 – 250 Gauge -2.75 ± 0.5 2.75 %FS Digital Output 8 SM9235 – 300 Gauge ACC -2.3 ± 0.4 2.3 Accuracy (f) SM9236 – 600 Gauge -1.25 ± 0.3 1.25 %FS 9 Bandwidth BW 20 Hz 10 Position Sensitivity SG 0.1 %FS/g from supply VDD > 3.0 V Power-up 11 to output settled to 90% t 5 ms time* UP of final value pressure step response; Step response 12 output rising from 10% to t ms time* RESP 1 90% of final value pressure step response; Step response 13 output settling to full t 10 ms settling time* SETTLE accuracy * Not tested in production
Notes:
e. Supply current given for continuous operation. Device can be set to sleep mode with significantly lower power consumption. Refer to section 11 for details. f. The accuracy specification applies over all operating conditions in dry clean air. This specification includes the combination of linearity, repeatability, and hysteresis errors over pressure, temperature, and 3.3 V supply voltage. g. Based on system level autozero at 25 oC after board mount or solder reflow. h. Based on sample testing during initial product qualification, not tested in production. Silicon Microstructures, Inc. 2001-2019. All rights reserved +1-(408) 577-0100 | sales@si-micro.com I www.si-micro.com
