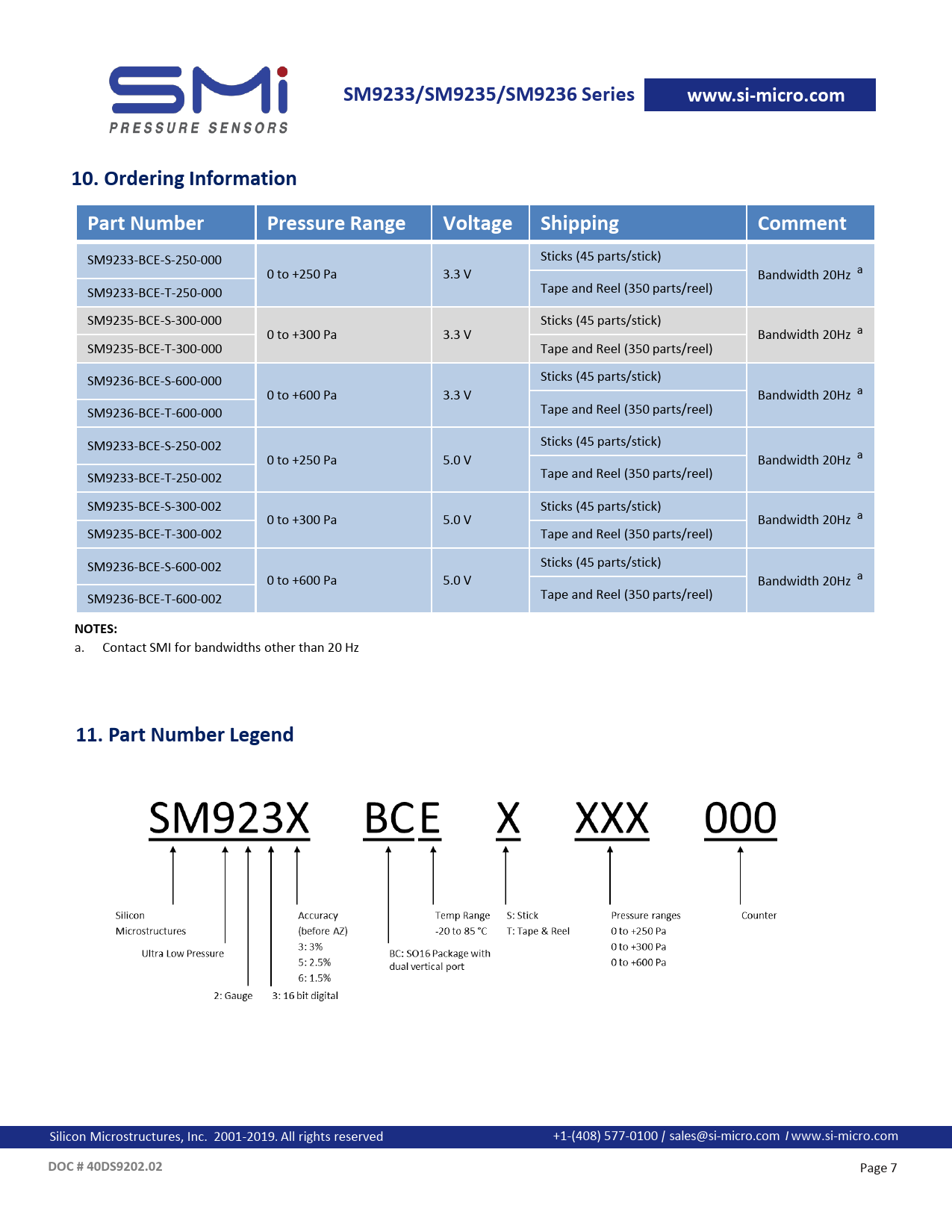

SM9233/SM9235/SM9236 Series www.si-micro.com
27
10. Ordering Information
45 131
Part Number Pressure Range Voltage Shipping Comment
SM9233-BCE-S-250-000 Sticks (45 parts/stick) 167 0 to +250 Pa 3.3 V Bandwidth 20Hz a 170 Tape and Reel (350 parts/reel) SM9233-BCE-T-250-000 175 SM9235-BCE-S-300-000 Sticks (45 parts/stick) 0 to +300 Pa 3.3 V Bandwidth 20Hz a SM9235-BCE-T-300-000 Tape and Reel (350 parts/reel) 169 0 SM9236-BCE-S-600-000 Sticks (45 parts/stick) 61 0 to +600 Pa 3.3 V Bandwidth 20Hz a Tape and Reel (350 parts/reel) SM9236-BCE-T-600-000 SM9233-BCE-S-250-002 Sticks (45 parts/stick) 0 to +250 Pa 5.0 V Bandwidth 20Hz a Tape and Reel (350 parts/reel) SM9233-BCE-T-250-002 SM9235-BCE-S-300-002 Sticks (45 parts/stick) 0 to +300 Pa 5.0 V Bandwidth 20Hz a SM9235-BCE-T-300-002 Tape and Reel (350 parts/reel) SM9236-BCE-S-600-002 Sticks (45 parts/stick) 0 to +600 Pa 5.0 V Bandwidth 20Hz a Tape and Reel (350 parts/reel) SM9236-BCE-T-600-002
NOTES:
a. Contact SMI for bandwidths other than 20 Hz Package Pin-Out
11. Part Number Legend
Silicon Microstructures, Inc. 2001-2019. All rights reserved +1-(408) 577-0100 | sales@si-micro.com I www.si-micro.com
DOC # 40DS9202.02
Page 7
