Datasheet C3M0016120K (Wolfspeed) - 9
| 制造商 | Wolfspeed |
| 描述 | Silicon Carbide Power MOSFET C3M Planar MOSFET Technology N-Channel Enhancement Mode |
| 页数 / 页 | 12 / 9 — Test Circuit Schematic |
| 文件格式/大小 | PDF / 1.1 Mb |
| 文件语言 | 英语 |
Test Circuit Schematic
该数据表的模型线
文件文字版本

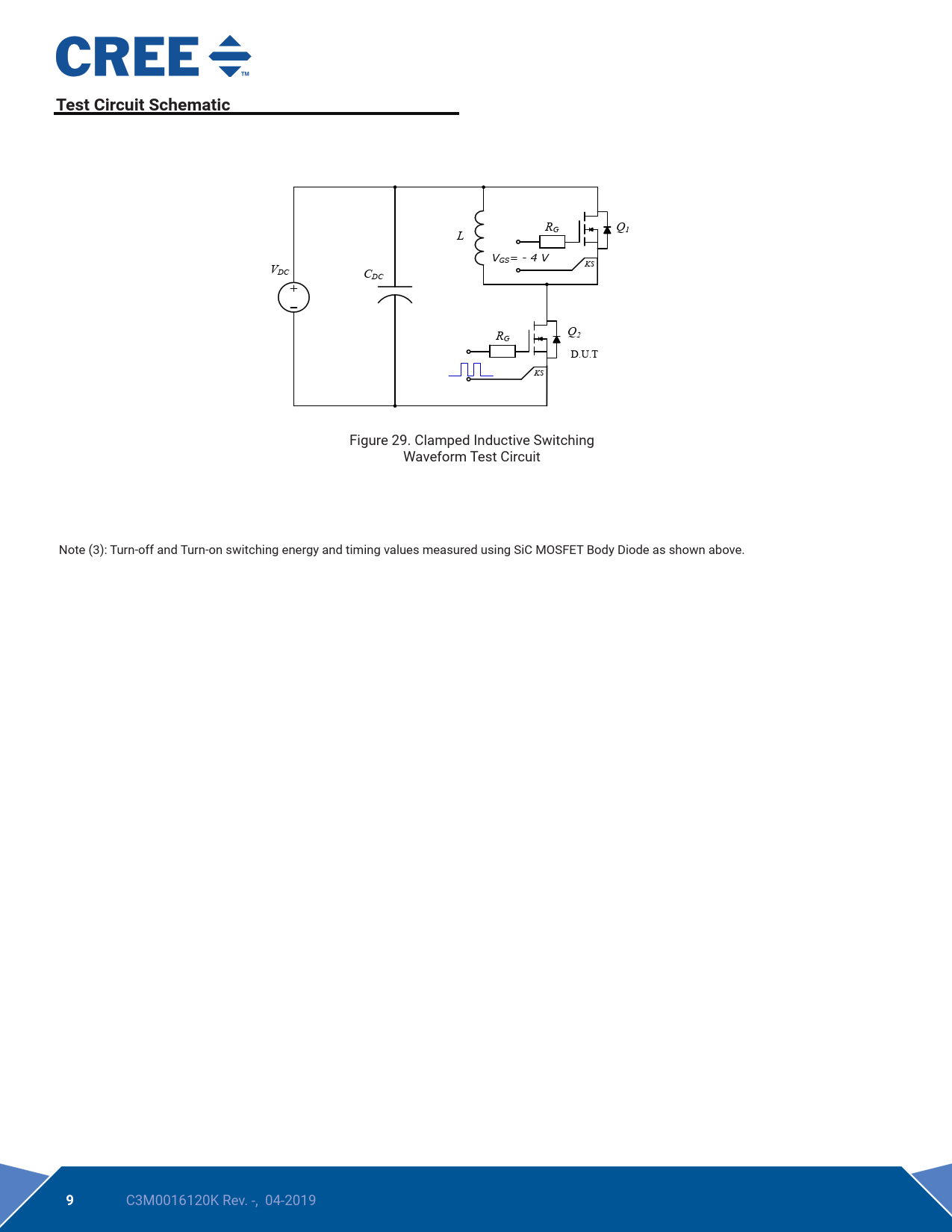

Test Circuit Schematic
RG Q L 1 VGS= - 4 V V KS DC CDC Q2 RG D.U.T KS Figure 29. Clamped Inductive Switching Waveform Test Circuit Note (3): Turn-off and Turn-on switching energy and timing values measured using SiC MOSFET Body Diode as shown above.
9
C3M0016120K Rev. -, 04-2019
RG Q L 1 VGS= - 4 V V KS DC CDC Q2 RG D.U.T KS Figure 29. Clamped Inductive Switching Waveform Test Circuit Note (3): Turn-off and Turn-on switching energy and timing values measured using SiC MOSFET Body Diode as shown above.
9
C3M0016120K Rev. -, 04-2019
