Datasheet NCSU334A(T) (Nichia) - 3
| 制造商 | Nichia |
| 描述 | 280nm Deep UV LED |
| 页数 / 页 | 20 / 3 — NICHIA STS-DA1-5547A RANKS. Item. Forward Voltage Radiant Flux Peak … |
| 文件格式/大小 | PDF / 634 Kb |
| 文件语言 | 英语 |
NICHIA STS-DA1-5547A RANKS. Item. Forward Voltage Radiant Flux Peak Wavelength Rank. -Min Max Unit
该数据表的模型线
文件文字版本

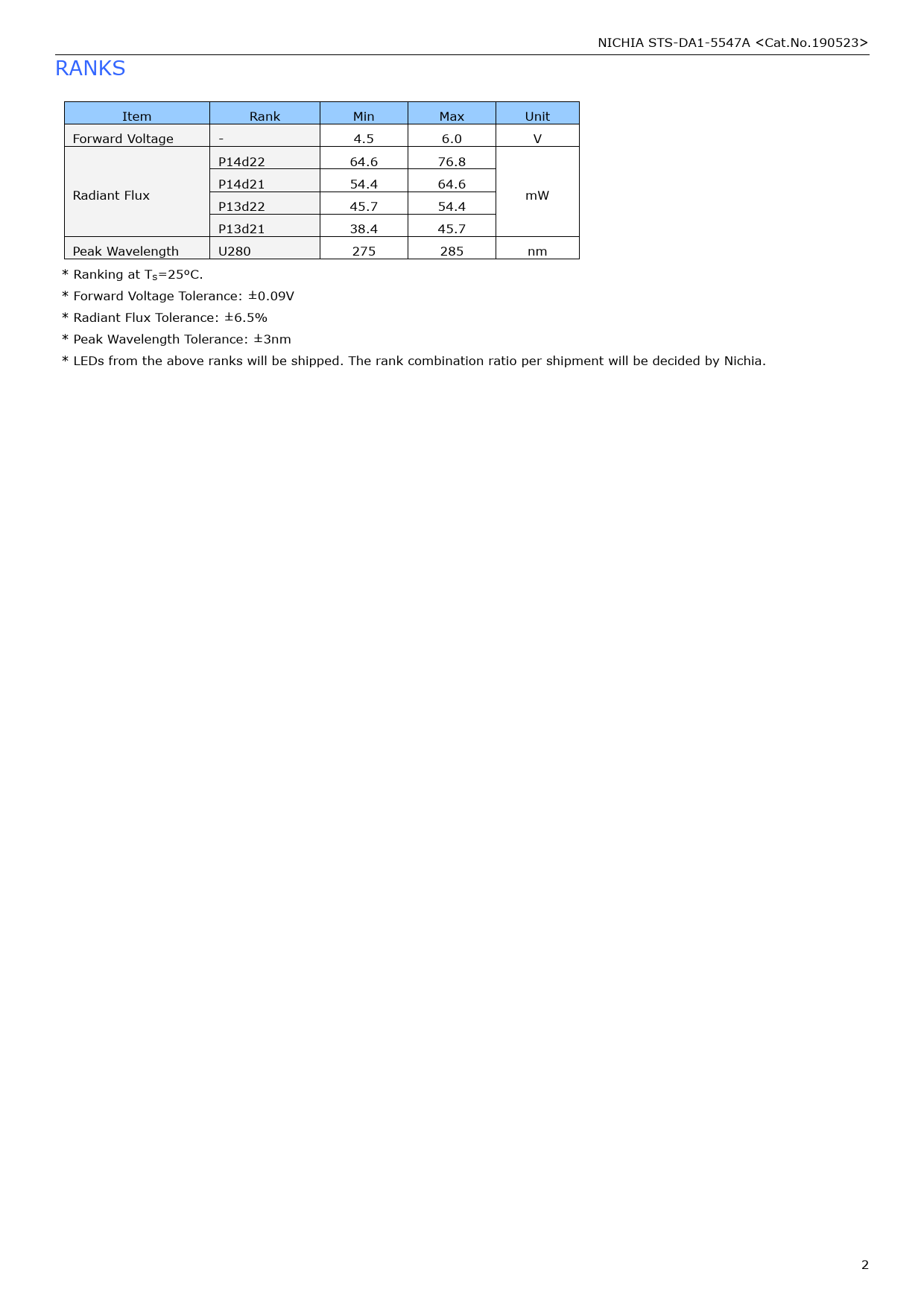

NICHIA STS-DA1-5547A RANKS
Item
Forward Voltage Radiant Flux Peak Wavelength Rank
-Min Max Unit
V 4.5 6.0 P14d22 64.6 76.8 P14d21 54.4 64.6 P13d22 45.7 54.4 P13d21 38.4 45.7 U280 275 285 mW nm * Ranking at TS=25°C.
* Forward Voltage Tolerance: ±0.09V
* Radiant Flux Tolerance: ±6.5%
* Peak Wavelength Tolerance: ±3nm
* LEDs from the above ranks will be shipped. The rank combination ratio per shipment will be decided by Nichia. 2
