Datasheet A7987 (STMicroelectronics) - 5
| 制造商 | STMicroelectronics |
| 描述 | 61 V 3A asynchronous step-down switching regulator with adjustable current limitation for automotive |
| 页数 / 页 | 37 / 5 — A7987. Maximum ratings. Pin. Description. 3.3. Table 2. Absolute maximum … |
| 文件格式/大小 | PDF / 1.4 Mb |
| 文件语言 | 英语 |

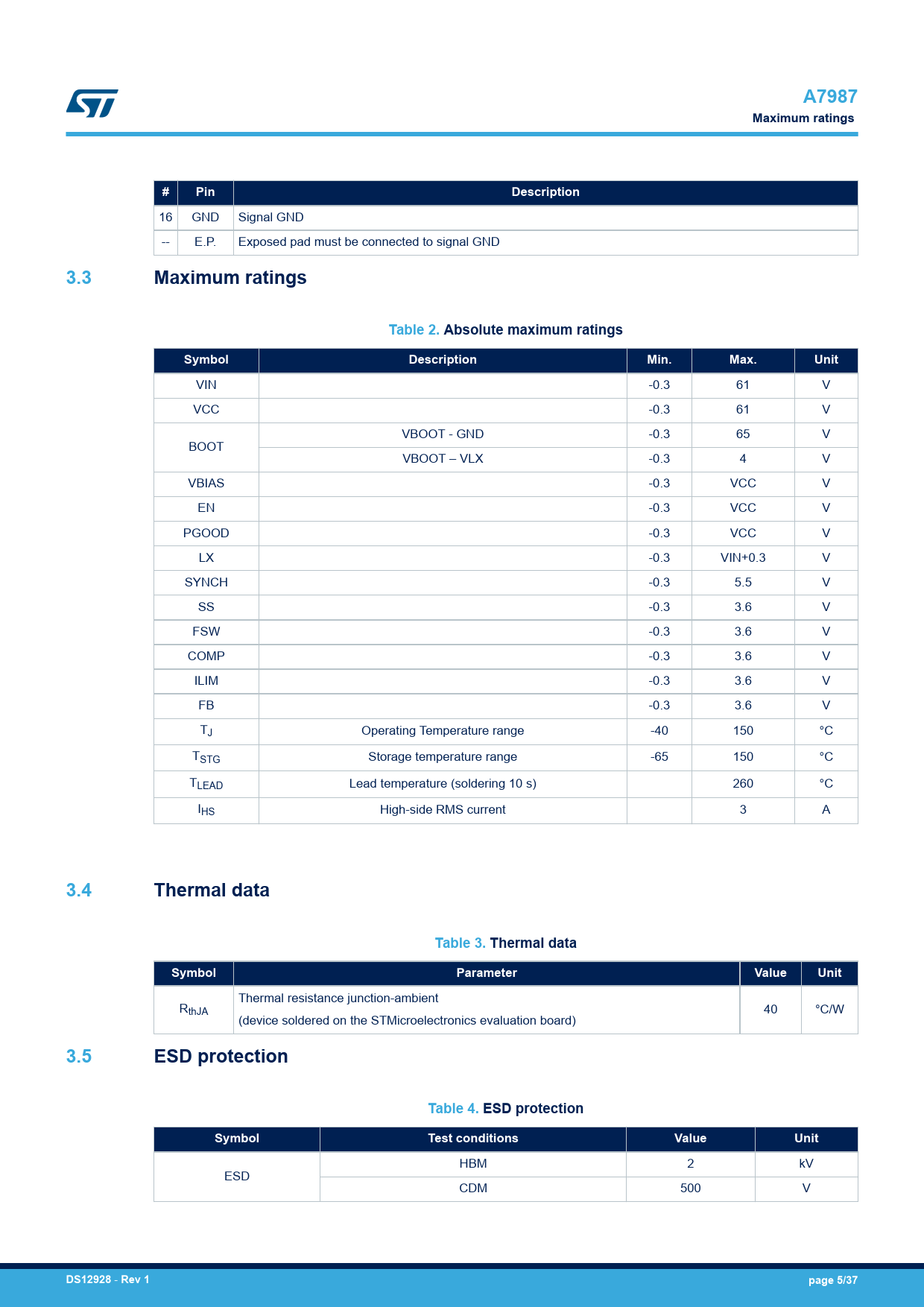

A7987. Maximum ratings. Pin. Description. 3.3. Table 2. Absolute maximum ratings. Symbol. Min. Max. Unit. 3.4. Thermal data
该数据表的模型线
文件文字版本
A7987 Maximum ratings # Pin Description
16 GND Signal GND -- E.P. Exposed pad must be connected to signal GND
3.3 Maximum ratings Table 2. Absolute maximum ratings Symbol Description Min. Max. Unit
VIN -0.3 61 V VCC -0.3 61 V VBOOT - GND -0.3 65 V BOOT VBOOT – VLX -0.3 4 V VBIAS -0.3 VCC V EN -0.3 VCC V PGOOD -0.3 VCC V LX -0.3 VIN+0.3 V SYNCH -0.3 5.5 V SS -0.3 3.6 V FSW -0.3 3.6 V COMP -0.3 3.6 V ILIM -0.3 3.6 V FB -0.3 3.6 V TJ Operating Temperature range -40 150 °C TSTG Storage temperature range -65 150 °C TLEAD Lead temperature (soldering 10 s) 260 °C IHS High-side RMS current 3 A
3.4 Thermal data Table 3. Thermal data Symbol Parameter Value Unit
Thermal resistance junction-ambient RthJA 40 °C/W (device soldered on the STMicroelectronics evaluation board)
3.5 ESD protection Table 4. ESD protection Symbol Test conditions Value Unit
HBM 2 kV ESD CDM 500 V
DS12928
-
Rev 1 page 5/37
