Datasheet A7987 (STMicroelectronics) - 7
| 制造商 | STMicroelectronics |
| 描述 | 61 V 3A asynchronous step-down switching regulator with adjustable current limitation for automotive |
| 页数 / 页 | 37 / 7 — A7987. Electrical characteristics. Symbol. Parameter. Test conditions. … |
| 文件格式/大小 | PDF / 1.4 Mb |
| 文件语言 | 英语 |

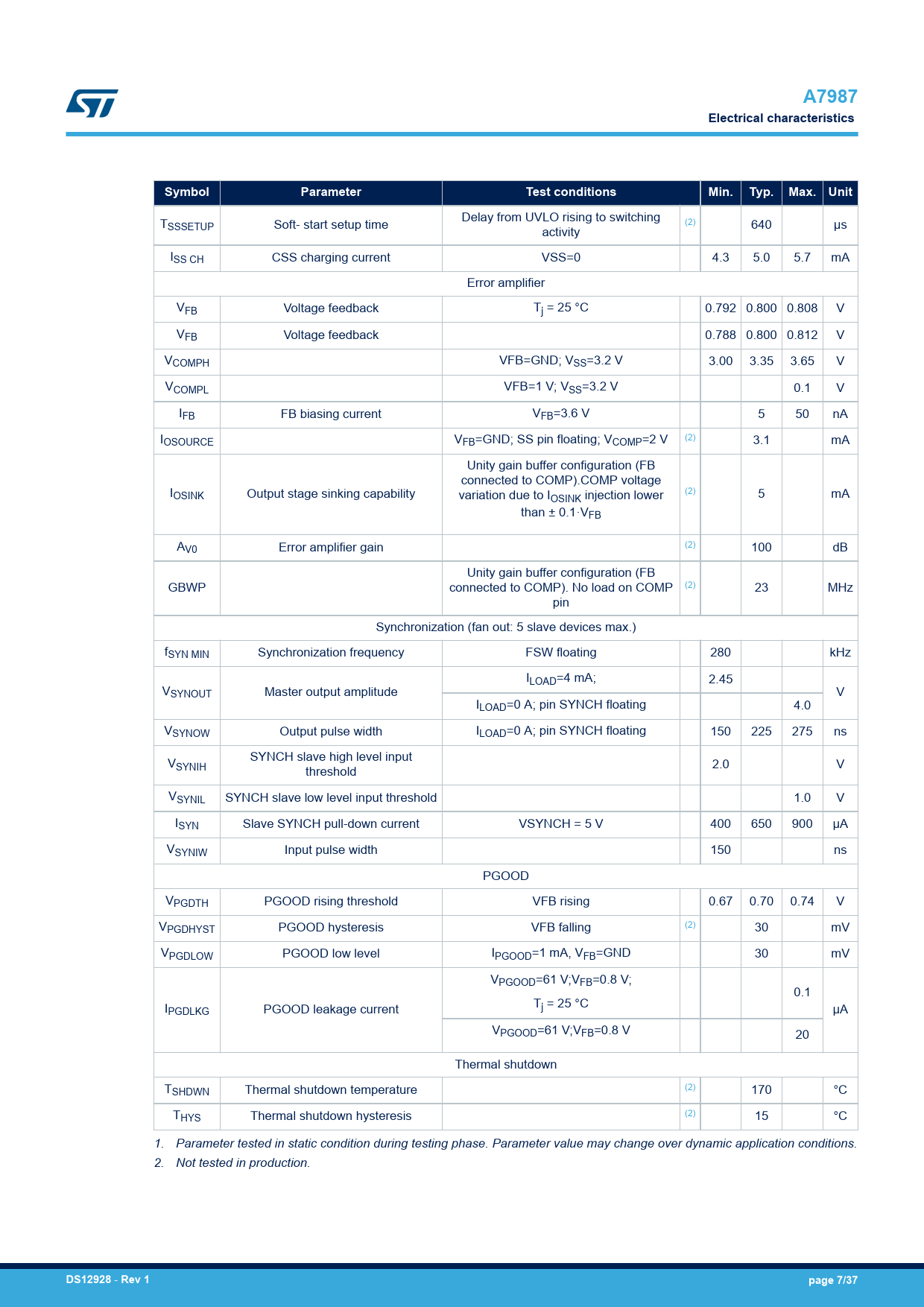

A7987. Electrical characteristics. Symbol. Parameter. Test conditions. Min. Typ. Max. Unit. DS12928. Rev 1. page 7/37
该数据表的模型线
文件文字版本
link to page 7 link to page 7 link to page 7 link to page 7 link to page 7 link to page 7 link to page 7 link to page 7
A7987 Electrical characteristics Symbol Parameter Test conditions Min. Typ. Max. Unit
T Delay from UVLO rising to switching SSSETUP Soft- start setup time (2) 640 µs activity ISS CH CSS charging current VSS=0 4.3 5.0 5.7 mA Error amplifier VFB Voltage feedback Tj = 25 °C 0.792 0.800 0.808 V VFB Voltage feedback 0.788 0.800 0.812 V VCOMPH VFB=GND; VSS=3.2 V 3.00 3.35 3.65 V VCOMPL VFB=1 V; VSS=3.2 V 0.1 V IFB FB biasing current VFB=3.6 V 5 50 nA IOSOURCE VFB=GND; SS pin floating; VCOMP=2 V (2) 3.1 mA Unity gain buffer configuration (FB connected to COMP).COMP voltage IOSINK Output stage sinking capability variation due to I (2) OSINK injection lower 5 mA than ± 0.1·VFB AV0 Error amplifier gain (2) 100 dB Unity gain buffer configuration (FB GBWP connected to COMP). No load on COMP (2) 23 MHz pin Synchronization (fan out: 5 slave devices max.) fSYN MIN Synchronization frequency FSW floating 280 kHz ILOAD=4 mA; 2.45 VSYNOUT Master output amplitude V ILOAD=0 A; pin SYNCH floating 4.0 VSYNOW Output pulse width ILOAD=0 A; pin SYNCH floating 150 225 275 ns V SYNCH slave high level input SYNIH 2.0 V threshold VSYNIL SYNCH slave low level input threshold 1.0 V ISYN Slave SYNCH pull-down current VSYNCH = 5 V 400 650 900 µA VSYNIW Input pulse width 150 ns PGOOD VPGDTH PGOOD rising threshold VFB rising 0.67 0.70 0.74 V VPGDHYST PGOOD hysteresis VFB falling (2) 30 mV VPGDLOW PGOOD low level IPGOOD=1 mA, VFB=GND 30 mV VPGOOD=61 V;VFB=0.8 V; 0.1 I T PGDLKG PGOOD leakage current j = 25 °C µA VPGOOD=61 V;VFB=0.8 V 20 Thermal shutdown TSHDWN Thermal shutdown temperature (2) 170 °C THYS Thermal shutdown hysteresis (2) 15 °C 1. Parameter tested in static condition during testing phase. Parameter value may change over dynamic application conditions. 2. Not tested in production.
