Datasheet SQD50N06-09L (Vishay) - 8
| 制造商 | Vishay |
| 描述 | Automotive N-Channel 60 V (D-S) 175 °C MOSFET |
| 页数 / 页 | 9 / 8 — Application Note 826. RECOMMENDED MINIMUM PADS FOR DPAK (TO-252) |
| 文件格式/大小 | PDF / 163 Kb |
| 文件语言 | 英语 |
Application Note 826. RECOMMENDED MINIMUM PADS FOR DPAK (TO-252)
该数据表的模型线
文件文字版本
Application Note 826
Vishay Siliconix

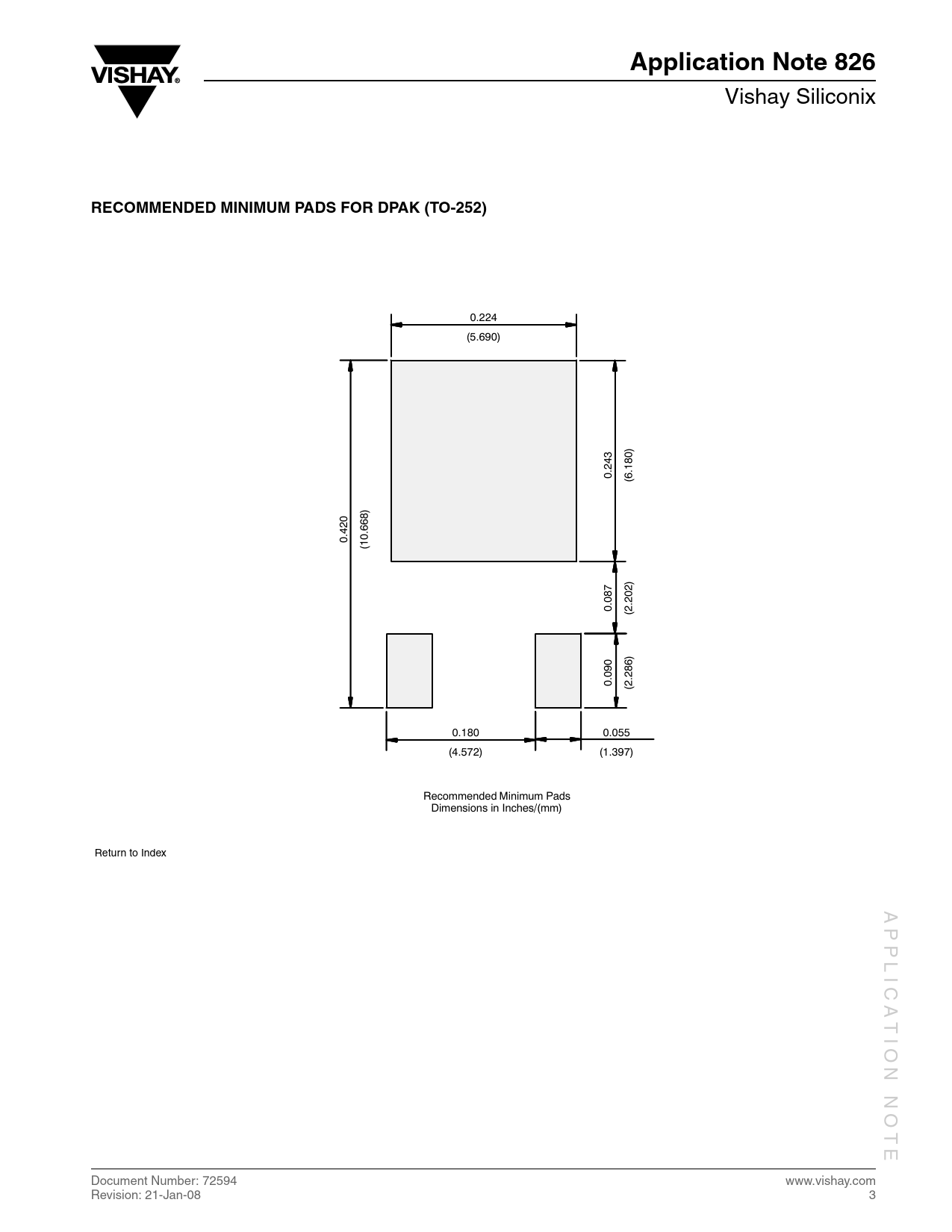

RECOMMENDED MINIMUM PADS FOR DPAK (TO-252)
0.224 (5.690) 0.243 (6.180) 0.420 (10.668) 0.087 (2.202) 0.090 (2.286) 0.180 0.055 (4.572) (1.397) Recommended Minimum Pads Dimensions in Inches/(mm) Return to Index Return to Index APPLICATION NOTE Document Number: 72594 www.vishay.com Revision: 21-Jan-08 3
Vishay Siliconix
RECOMMENDED MINIMUM PADS FOR DPAK (TO-252)
0.224 (5.690) 0.243 (6.180) 0.420 (10.668) 0.087 (2.202) 0.090 (2.286) 0.180 0.055 (4.572) (1.397) Recommended Minimum Pads Dimensions in Inches/(mm) Return to Index Return to Index APPLICATION NOTE Document Number: 72594 www.vishay.com Revision: 21-Jan-08 3
