Datasheet RT2378-20 (Analog Devices) - 10
| 制造商 | Analog Devices |
| 描述 | Radiation Tolerant 20-Bit, 1Msps, Low Power Plastic Package SAR ADC |
| 页数 / 页 | 10 / 10 — package DescripTion. Please refer to … |
| 文件格式/大小 | PDF / 181 Kb |
| 文件语言 | 英语 |
package DescripTion. Please refer to http://www.linear.com/designtools/packaging/ for the most recent package drawings
该数据表的模型线
文件文字版本
RT2378-20

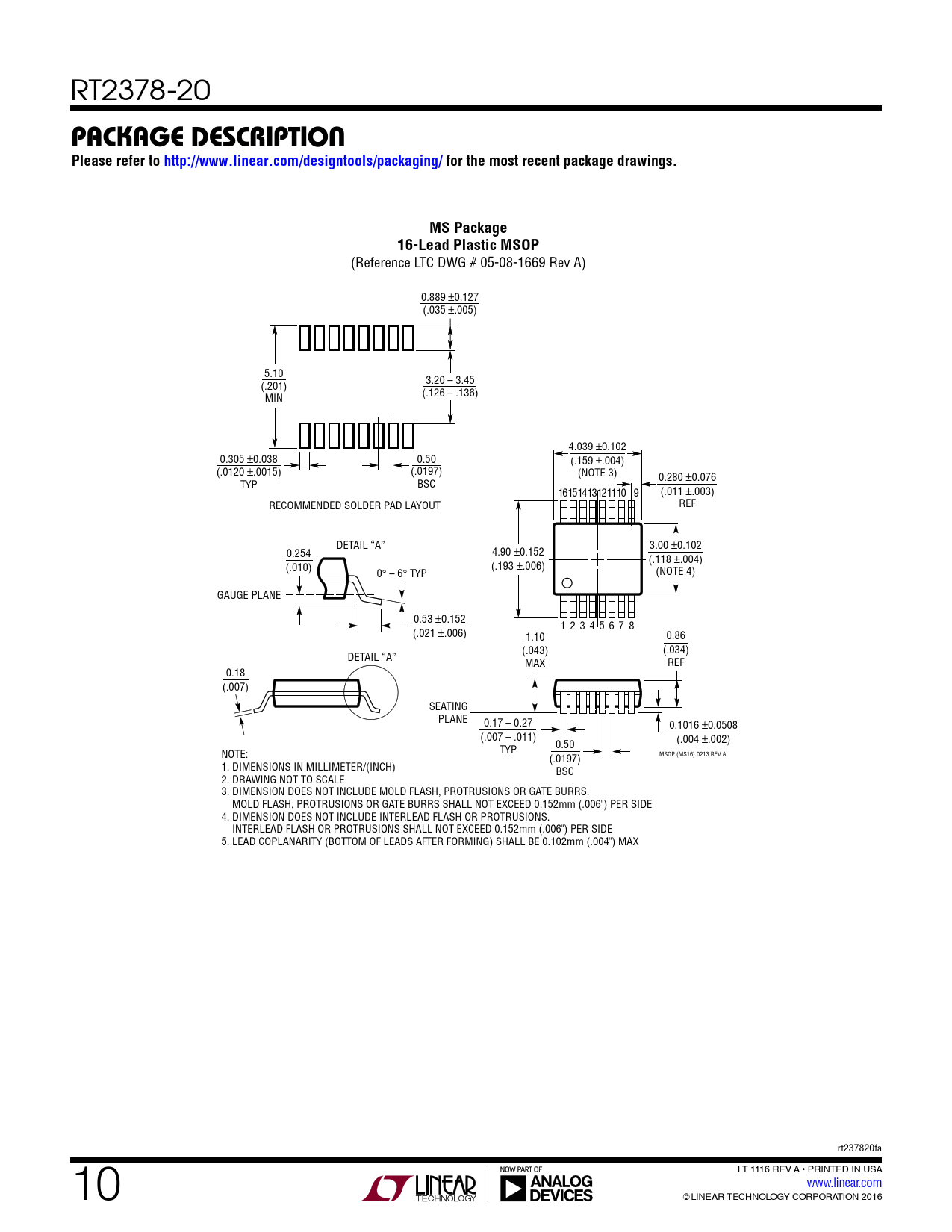

package DescripTion Please refer to http://www.linear.com/designtools/packaging/ for the most recent package drawings. MS Package 16-Lead Plastic MSOP
(Reference LTC DWG # 05-08-1669 Rev A) 0.889 ±0.127 (.035 ±.005) 5.10 (.201) 3.20 – 3.45 MIN (.126 – .136) 4.039 ±0.102 0.305 ±0.038 0.50 (.159 ±.004) (.0120 ±.0015) (.0197) (NOTE 3) 0.280 ±0.076 TYP BSC 16151413121110 9 (.011 ±.003) RECOMMENDED SOLDER PAD LAYOUT REF DETAIL “A” 3.00 ±0.102 0.254 4.90 ±0.152 (.118 ±.004) (.010) (.193 ±.006) 0° – 6° TYP (NOTE 4) GAUGE PLANE 0.53 ±0.152 1 2 3 4 5 6 7 8 (.021 ±.006) 1.10 0.86 (.043) (.034) DETAIL “A” MAX REF 0.18 (.007) SEATING PLANE 0.17 – 0.27 0.1016 ±0.0508 (.007 – .011) (.004 ±.002) TYP 0.50 MSOP (MS16) 0213 REV A NOTE: (.0197) 1. DIMENSIONS IN MILLIMETER/(INCH) BSC 2. DRAWING NOT TO SCALE 3. DIMENSION DOES NOT INCLUDE MOLD FLASH, PROTRUSIONS OR GATE BURRS. MOLD FLASH, PROTRUSIONS OR GATE BURRS SHALL NOT EXCEED 0.152mm (.006") PER SIDE 4. DIMENSION DOES NOT INCLUDE INTERLEAD FLASH OR PROTRUSIONS. INTERLEAD FLASH OR PROTRUSIONS SHALL NOT EXCEED 0.152mm (.006") PER SIDE 5. LEAD COPLANARITY (BOTTOM OF LEADS AFTER FORMING) SHALL BE 0.102mm (.004") MAX rt237820fa 10 LT 1116 REV A • PRINTED IN USA www.linear.com For more information www.linear.com LINEAR TECHNOLOGY CORPORATION 2016 Document Outline Features Description Typical Application Absolute Maximum Ratings Pin Configuration Electrical Characteristics Converter Characteristics Dynamic Accuracy Reference Input Digital Inputs and Digital Outputs Power Requirements ADC Timing Characteristics Typical Performance Characteristics
