Datasheet AD7691-EP (Analog Devices) - 7
| 制造商 | Analog Devices |
| 描述 | 18-Bit, 1.5 LSB INL, 250 kSPS PulSAR® Differential ADC in MSOP/QFN |
| 页数 / 页 | 13 / 7 — Enhanced Product. AD7691-EP. ABSOLUTE MAXIMUM RATINGS Table 5. THERMAL … |
| 修订版 | A |
| 文件格式/大小 | PDF / 444 Kb |
| 文件语言 | 英语 |

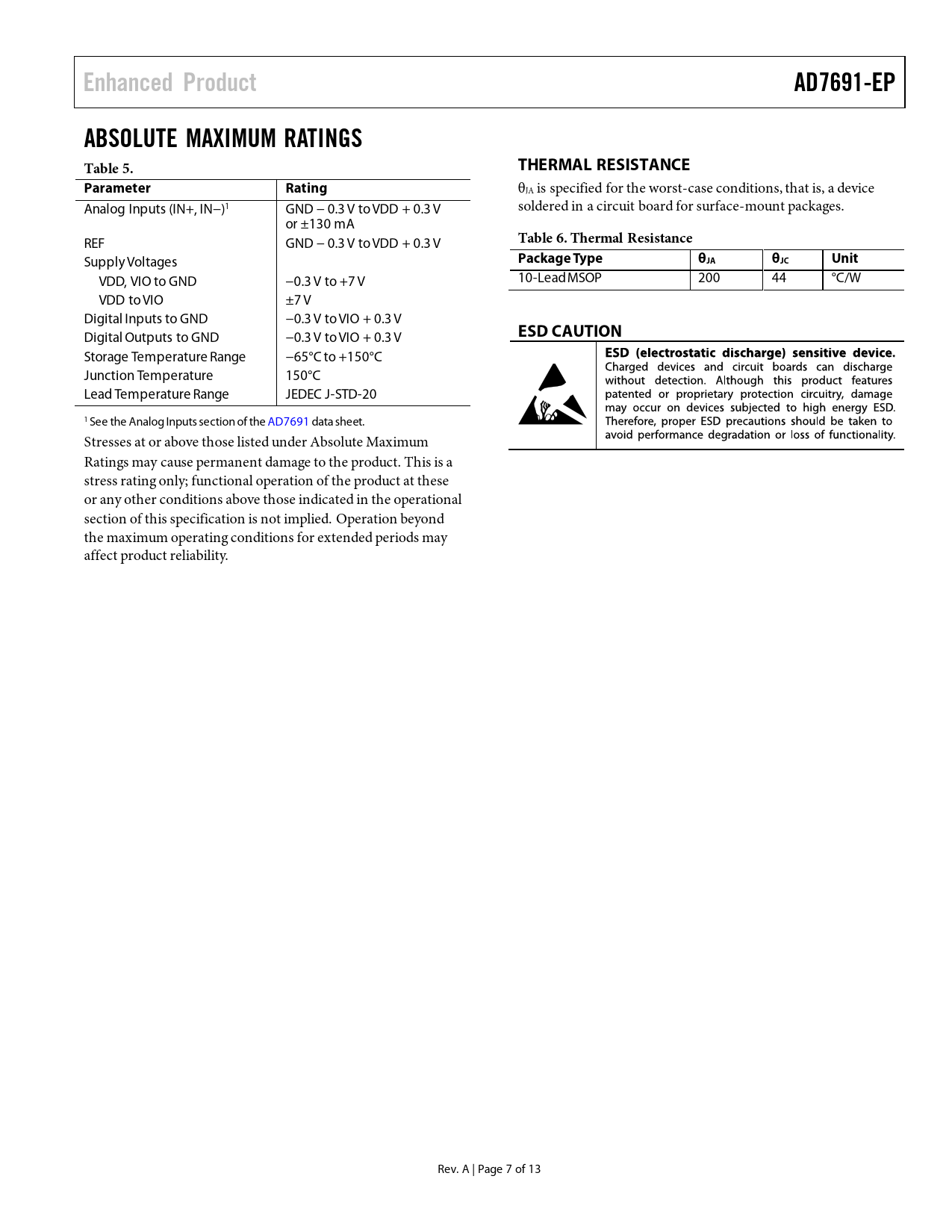

Enhanced Product. AD7691-EP. ABSOLUTE MAXIMUM RATINGS Table 5. THERMAL RESISTANCE. Parameter. Rating. Table 6. Thermal Resistance
该数据表的模型线
文件文字版本
Enhanced Product AD7691-EP ABSOLUTE MAXIMUM RATINGS Table 5. THERMAL RESISTANCE Parameter Rating
θJA is specified for the worst-case conditions, that is, a device Analog Inputs (IN+, IN−)1 GND − 0.3 V to VDD + 0.3 V soldered in a circuit board for surface-mount packages. or ±130 mA REF GND − 0.3 V to VDD + 0.3 V
Table 6. Thermal Resistance
Supply Voltages
Package Type θJA θJC Unit
VDD, VIO to GND −0.3 V to +7 V 10-Lead MSOP 200 44 °C/W VDD to VIO ±7 V Digital Inputs to GND −0.3 V to VIO + 0.3 V Digital Outputs to GND −0.3 V to VIO + 0.3 V
ESD CAUTION
Storage Temperature Range −65°C to +150°C Junction Temperature 150°C Lead Temperature Range JEDEC J-STD-20 1 See the Analog Inputs section of the AD7691 data sheet. Stresses at or above those listed under Absolute Maximum Ratings may cause permanent damage to the product. This is a stress rating only; functional operation of the product at these or any other conditions above those indicated in the operational section of this specification is not implied. Operation beyond the maximum operating conditions for extended periods may affect product reliability. Rev. A | Page 7 of 13 Document Outline Features Enhanced Product Features Applications Application Diagram General Description Table of Contents Revision History Specifications Timing Specifications Timing Diagrams Absolute Maximum Ratings Thermal Resistance ESD Caution Pin Configurations and Function Descriptions Typical Performance Characteristics Outline Dimensions Ordering Guide
