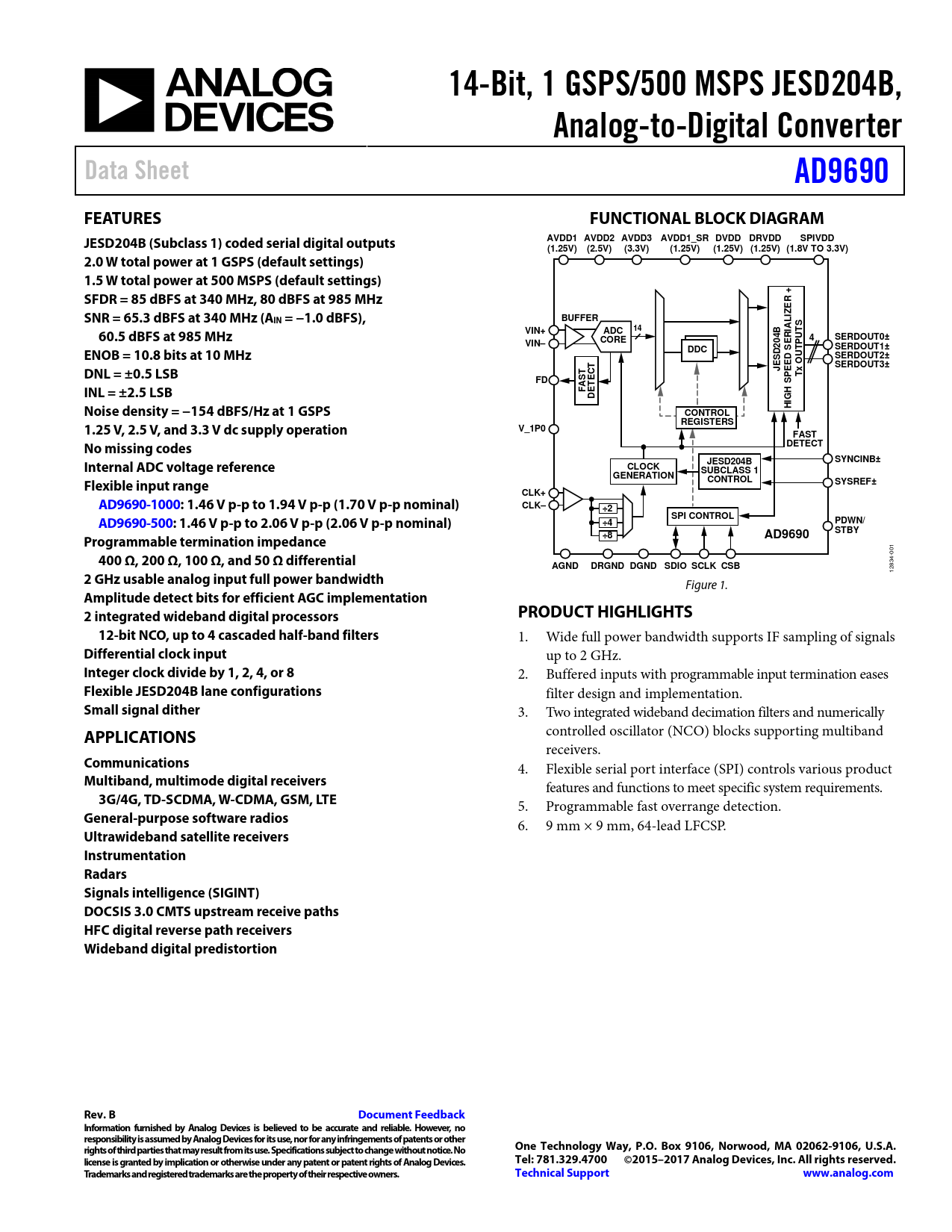

14-Bit, 1 GSPS/500 MSPS JESD204B, Analog-to-Digital Converter Data Sheet AD9690 FEATURES FUNCTIONAL BLOCK DIAGRAM JESD204B (Subclass 1) coded serial digital outputs AVDD1 AVDD2 AVDD3 AVDD1_SR DVDD DRVDD SPIVDD (1.25V) (2.5V) (3.3V) (1.25V) (1.25V) (1.25V) (1.8V TO 3.3V) 2.0 W total power at 1 GSPS (default settings) 1.5 W total power at 500 MSPS (default settings) SFDR = 85 dBFS at 340 MHz, 80 dBFS at 985 MHz + ER SNR = 65.3 dBFS at 340 MHz (A IZ IN = −1.0 dBFS), BUFFER L 60.5 dBFS at 985 MHz VIN+ 14 IA TS ADC U 4 SERDOUT0± VIN– CORE TP SERDOUT1± ENOB = 10.8 bits at 10 MHz DDC D204B SER SERDOUT2± S OU SERDOUT3± DNL = ±0.5 LSB JE T CT Tx FD E AS T SPEED INL = ±2.5 LSB F H DE IG Noise density = −154 dBFS/Hz at 1 GSPS H CONTROL 1.25 V, 2.5 V, and 3.3 V dc supply operation REGISTERS V_1P0 FAST No missing codes DETECT Internal ADC voltage reference SYNCINB± JESD204B CLOCK SUBCLASS 1 GENERATION Flexible input range CONTROL SYSREF± CLK+ AD9690-1000: 1. 46 V p-p to 1.94 V p-p (1.70 V p-p nominal) CLK– ÷2 AD9690-500: 1.46 V p-p to 2.06 V p-p (2.06 V p-p nominal) SPI CONTROL ÷4 PDWN/ STBY Programmable termination impedance ÷8 AD9690
001
400 Ω, 200 Ω, 100 Ω, and 50 Ω differential AGND DRGND DGND SDIO SCLK CSB
12834-
2 GHz usable analog input full power bandwidth
Figure 1.
Amplitude detect bits for efficient AGC implementation 2 integrated wideband digital processors PRODUCT HIGHLIGHTS 12-bit NCO, up to 4 cascaded half-band filters
1. Wide ful power bandwidth supports IF sampling of signals
Differential clock input
up to 2 GHz.
Integer clock divide by 1, 2, 4, or 8
2. Buffered inputs with programmable input termination eases
Flexible JESD204B lane configurations
filter design and implementation.
Small signal dither
3. Two integrated wideband decimation filters and numerical y
APPLICATIONS
controlled oscillator (NCO) blocks supporting multiband receivers.
Communications
4. Flexible serial port interface (SPI) controls various product
Multiband, multimode digital receivers
features and functions to meet specific system requirements.
3G/4G, TD-SCDMA, W-CDMA, GSM, LTE
5. Programmable fast overrange detection.
General-purpose software radios
6. 9 mm × 9 mm, 64-lead LFCSP.
Ultrawideband satellite receivers Instrumentation Radars Signals intelligence (SIGINT) DOCSIS 3.0 CMTS upstream receive paths HFC digital reverse path receivers Wideband digital predistortion Rev. B Document Feedback Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications subject to change without notice. No One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Tel: 781.329.4700 ©2015–2017 Analog Devices, Inc. All rights reserved. Trademarks and registered trademarks are the property of their respective owners. Technical Support www.analog.com
