Datasheet RH1021-7 (Analog Devices) - 6
| 制造商 | Analog Devices |
| 描述 | Precision 7V Reference |
| 页数 / 页 | 6 / 6 — TYPICAL PERFORMANCE CHARACTERISTICS. Output Voltage. Load Regulation … |
| 修订版 | F |
| 文件格式/大小 | PDF / 555 Kb |
| 文件语言 | 英语 |

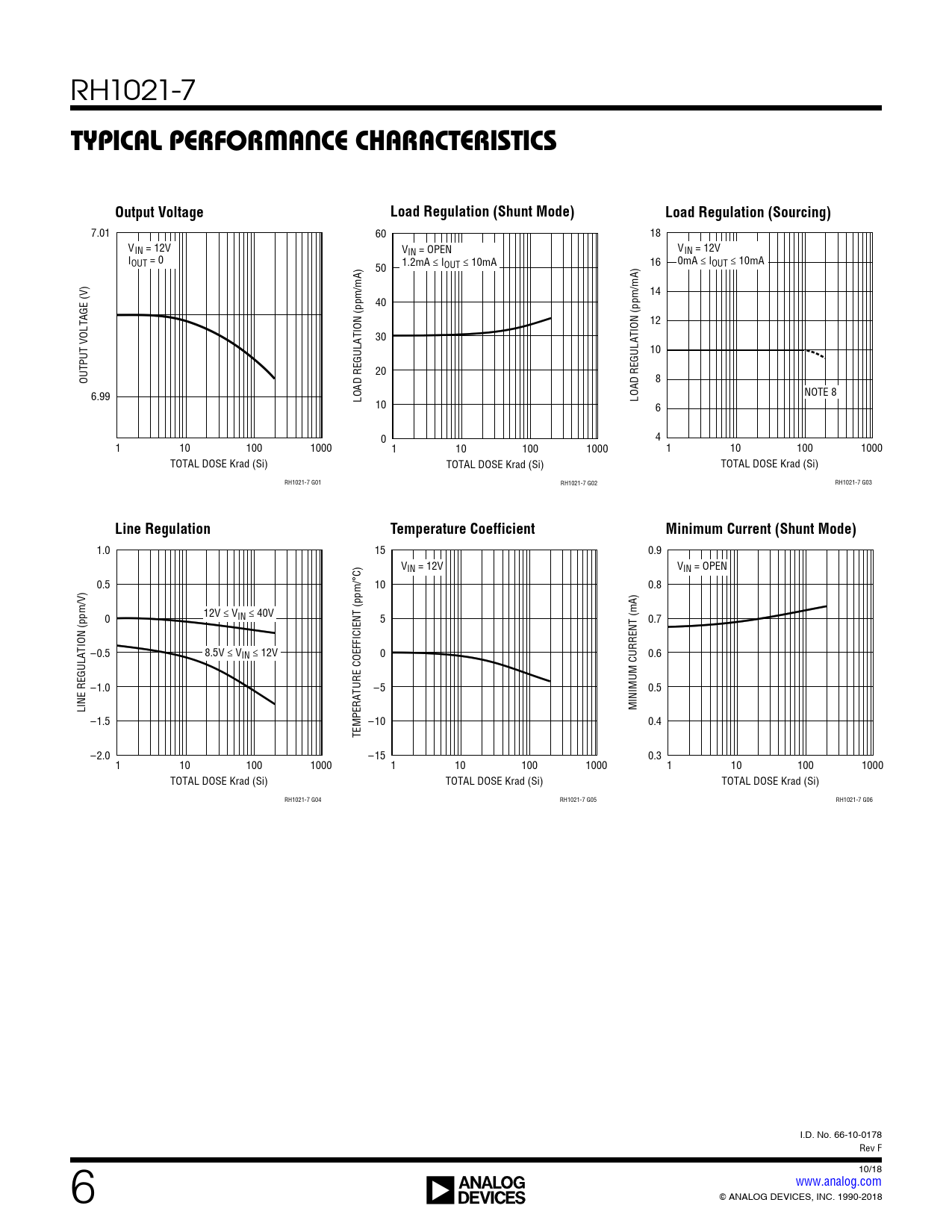

TYPICAL PERFORMANCE CHARACTERISTICS. Output Voltage. Load Regulation (Shunt Mode). Load Regulation (Sourcing). Line Regulation
该数据表的模型线
文件文字版本
RH1021-7
TYPICAL PERFORMANCE CHARACTERISTICS Output Voltage Load Regulation (Shunt Mode) Load Regulation (Sourcing)
7.01 60 18 VIN = 12V VIN = OPEN VIN = 12V IOUT = 0 0mA ≤ I 50 1.2mA ≤ IOUT ≤ 10mA 16 OUT ≤ 10mA 14 40 12 30 10 20 OUTPUT VOLTAGE (V) 8 6.99 LOAD REGULATION (ppm/mA) LOAD REGULATION (ppm/mA) NOTE 8 10 6 0 4 1 10 100 1000 1 10 100 1000 1 10 100 1000 TOTAL DOSE Krad (Si) TOTAL DOSE Krad (Si) TOTAL DOSE Krad (Si) RH1021-7 G01 RH1021-7 G02 RH1021-7 G03
Line Regulation Temperature Coefficient Minimum Current (Shunt Mode)
1.0 15 0.9 VIN = 12V VIN = OPEN 0.5 10 0.8 0 12V ≤ VIN ≤ 40V 5 0.7 –0.5 8.5V ≤ VIN ≤ 12V 0 0.6 –1.0 –5 0.5 LINE REGULATION (ppm/V) MINIMUM CURRENT (mA) –1.5 –10 0.4 TEMPERATURE COEFFICIENT (ppm/°C) –2.0 –15 0.3 1 10 100 1000 1 10 100 1000 1 10 100 1000 TOTAL DOSE Krad (Si) TOTAL DOSE Krad (Si) TOTAL DOSE Krad (Si) RH1021-7 G04 RH1021-7 G05 RH1021-7 G06 I.D. No. 66-10-0178 Rev F 6 10/18 www.analog.com ANALOG DEVICES, INC. 1990-2018 Document Outline Description Absolute Maximum Ratings Burn-In Circuits Pin Configuration Order Information Table 1: Electrical Characteristics Table 1A: Electrical Characteristics Table 2: Electrical Test Requirements Total Dose Bias Circuit Revision History Typical Performance Characteristics
