HMC694LP4 / 694LP4E. GaAs MMIC ANALOG VARIABLE. GAIN AMPLIFIER, 6 - 17 GHz. Typical Applications. Features. Functional Diagram

Datasheet HMC694LP4, 694LP4E Analog Devices

该数据表的模型线

文件文字版本

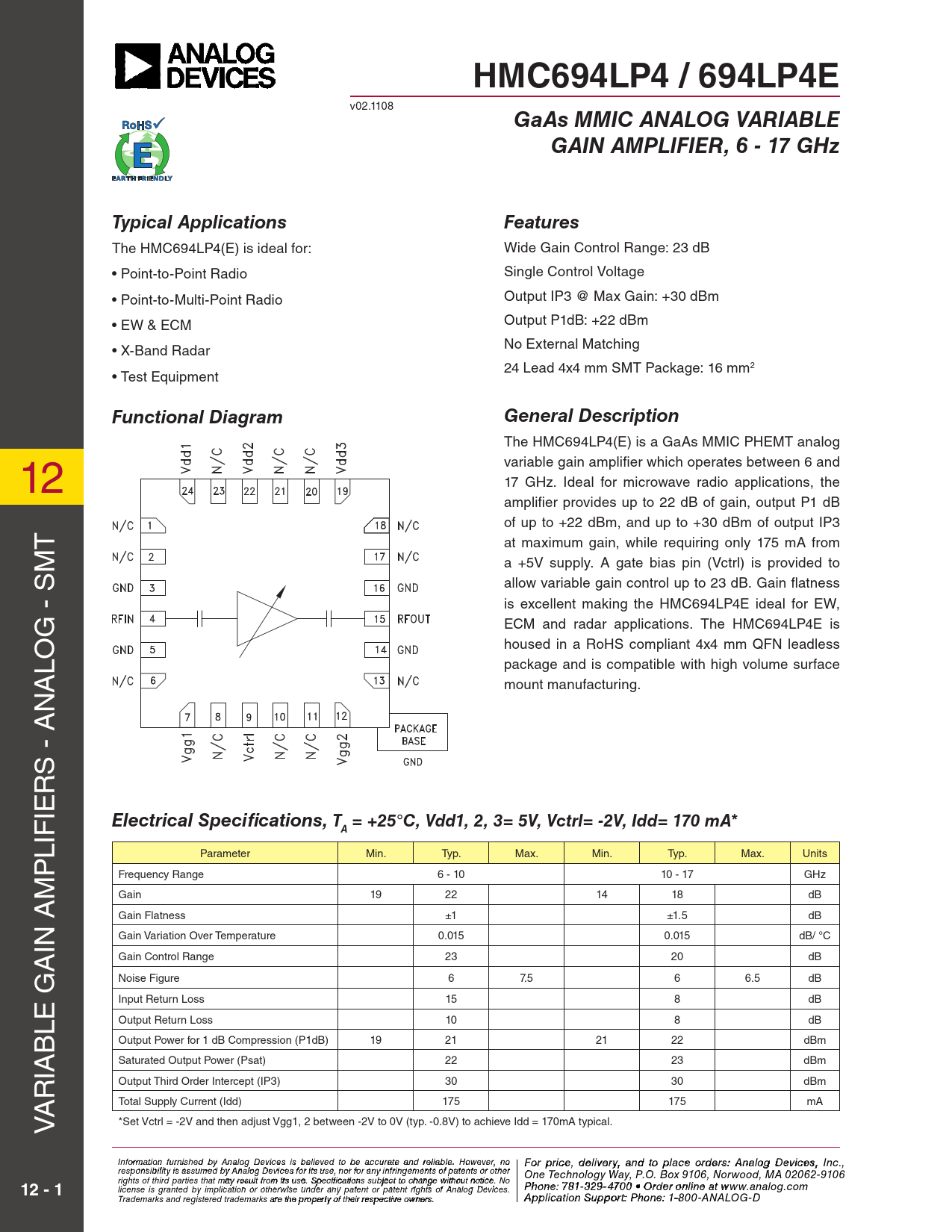

HMC694LP4 / 694LP4E
v02.1108
GaAs MMIC ANALOG VARIABLE GAIN AMPLIFIER, 6 - 17 GHz Typical Applications Features
The HmC694lp4(e) is ideal for: Wide gain Control range: 23 db • point-to-point radio single Control Voltage • point-to-multi-point radio Output ip3 @ max gain: +30 dbm • eW & eCm Output p1db: +22 dbm • X-band radar no external matching 24 lead 4x4 mm smT package: 16 mm2 • Test equipment
Functional Diagram General Description
The HmC694lp4(e) is a gaas mmiC pHemT analog 12 variable gain amplifier which operates between 6 and 17 gHz. ideal for microwave radio applications, the amplifier provides up to 22 db of gain, output p1 db of up to +22 dbm, and up to +30 dbm of output ip3 T at maximum gain, while requiring only 175 ma from m a +5V supply. a gate bias pin (Vctrl) is provided to s al ow variable gain control up to 23 db. gain flatness - is excel ent making the HmC694lp4e ideal for eW, g eCm and radar applications. The HmC694lp4e is housed in a roHs compliant 4x4 mm Qfn leadless lO package and is compatible with high volume surface a mount manufacturing. n a s - r ie
Electrical Specifications, T = +25°C, Vdd1, 2, 3= 5V, Vctrl= -2V, Idd= 170 mA* A
lif p parameter min. Typ. max. min. Typ. max. Units m frequency range 6 - 10 10 - 17 gHz gain 19 22 14 18 db gain flatness ±1 ±1.5 db in a gain Variation Over Temperature 0.015 0.015 db/ °C a gain Control range 23 20 db noise figure 6 7.5 6 6.5 db input return loss 15 8 db le g Output return loss 10 8 db b Output power for 1 db Compression (p1db) 19 21 21 22 dbm ia saturated Output power (psat) 22 23 dbm r Output Third Order intercept (ip3) 30 30 dbm a Total supply Current (idd) 175 175 ma V *set Vctrl = -2V and then adjust Vgg1, 2 between -2V to 0V (typ. -0.8V) to achieve idd = 170ma typical. Inf F or o m rat ip o r n ifc ur e n ,is hd e e d lbiv y e Anry alo a g n D d evi cto es ips la beclie ev eo d rtd o e b r e sa: ccH ur iattte itaen M d reliic a r bl o e w . H a o v weev eC r, o n r o For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other poration, 20 Alpha Road, Chelmsford, MA 01824 One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 978-250-3343 Fax: 978-250-3373 rights of third parties that may result from its use. Specifications subject to change without notice. No Or P d hoe n r e O : 7 n- 81-li 3 n 2 e 9- a 4 t 7 0 www 0 • O . rdh e itt r o it n e li . n co e a m
12 - 1
license is granted by implication or otherwise under any patent or patent rights of Analog Devices. t www.analog.com Application Support: Phon Trademarks and registered trademarks are the property of their respective owners. e: 978-250-334 A 3 p p liocra t ia o pp n S s u @ p h por ittti : Pte. ho c n o e m : 1-800-ANALOG-D
