Datasheet HMC694 (Analog Devices) - 6
| 制造商 | Analog Devices |
| 描述 | Analog Variable Gain Amplifier Chip, 6 - 17 GHz |
| 页数 / 页 | 8 / 6 — HMC694. GaAs MMIC ANALOG VARIABLE. GAIN AMPLIFIER, 6 - 17 GHz. Pad … |
| 文件格式/大小 | PDF / 478 Kb |
| 文件语言 | 英语 |

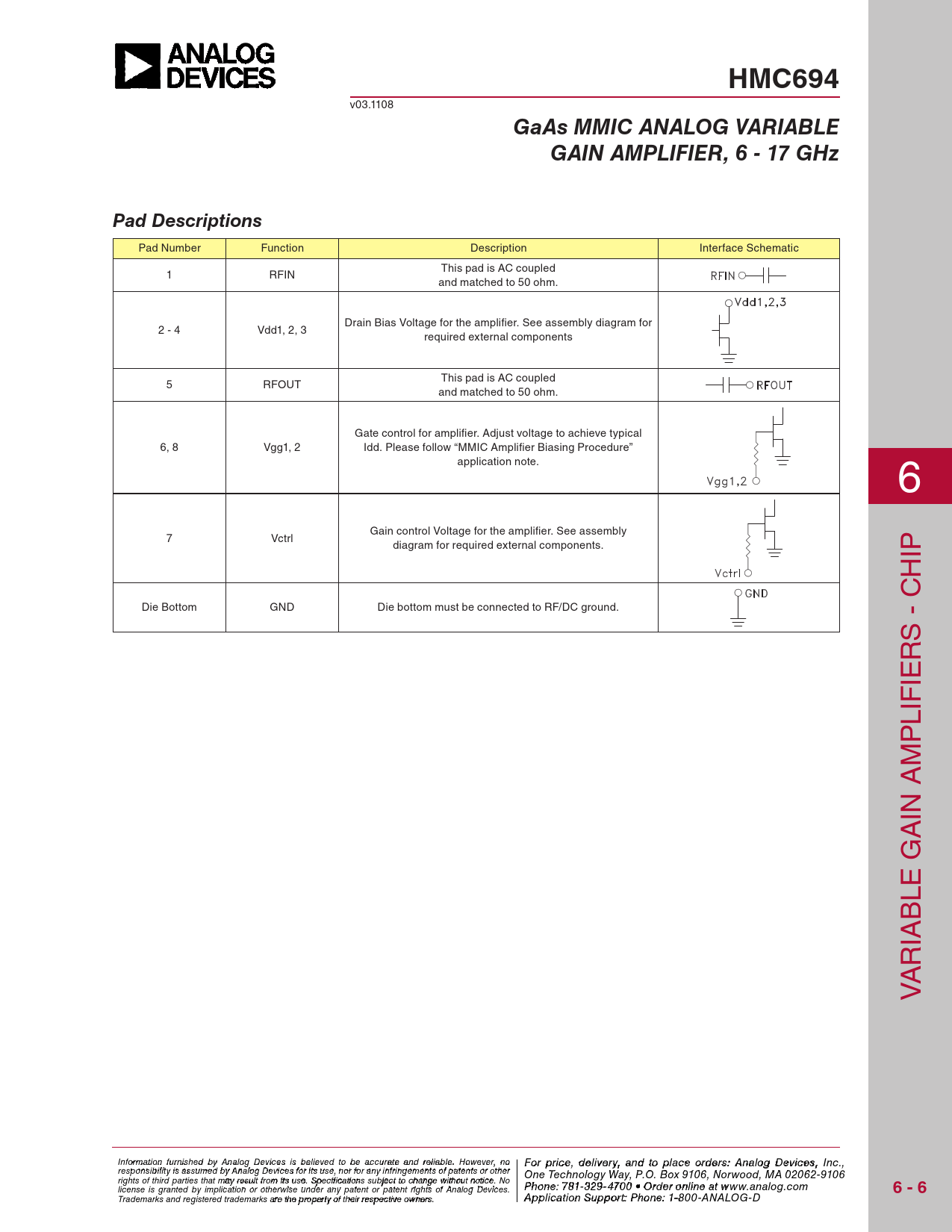

HMC694. GaAs MMIC ANALOG VARIABLE. GAIN AMPLIFIER, 6 - 17 GHz. Pad Descriptions. 6 - 6
该数据表的模型线
文件文字版本
HMC694
v03.1108
GaAs MMIC ANALOG VARIABLE GAIN AMPLIFIER, 6 - 17 GHz Pad Descriptions
pad number function Description interface schematic This pad is aC coupled 1 rfin and matched to 50 ohm. Drain bias Voltage for the amplifier. see assembly diagram for 2 - 4 Vdd1, 2, 3 required external components This pad is aC coupled 5 rfOUT and matched to 50 ohm. gate control for amplifier. adjust voltage to achieve typical 6, 8 Vgg1, 2 idd. please follow “mmiC amplifier biasing procedure” application note. 6 gain control Voltage for the amplifier. see assembly 7 Vctrl diagram for required external components. ip H Die bottom gnD Die bottom must be connected to rf/DC ground. s - C r ie lif p m in a a le g b ia r a V Inf F or o m rat ip o r n ifc ur e n ,is hd e e d lbiv y e Anry alo a g n D d evi cto es ips la beclie ev eo d rtd o e b r e sa: ccH ur iattte itaen M d reliic a r bl o e w . H a o v weev eC r, o n r o For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other poration, 20 Alpha Road, Chelmsford, MA 01824 One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 978-250-3343 Fax: 978-250-3373 rights of third parties that may result from its use. Specifications subject to change without notice. No Or P d hoe n r e O : 7 n- 81-li 3 n 2 e 9- a 4 t 7 0 www 0 • O . rdh e itt r o it n e li . n co e a m license is granted by implication or otherwise under any patent or patent rights of Analog Devices. t www.analog.com
