Datasheet BC556, BC557 (NXP) - 2
| 制造商 | NXP |
| 描述 | PNP general purpose transistors |
| 页数 / 页 | 8 / 2 — NXP Semiconductors. Product data sheet. PNP general purpose transistors. … |
| 文件格式/大小 | PDF / 252 Kb |
| 文件语言 | 英语 |
NXP Semiconductors. Product data sheet. PNP general purpose transistors. BC556; BC557. FEATURES. PINNING. PIN. DESCRIPTION
该数据表的模型线
文件文字版本

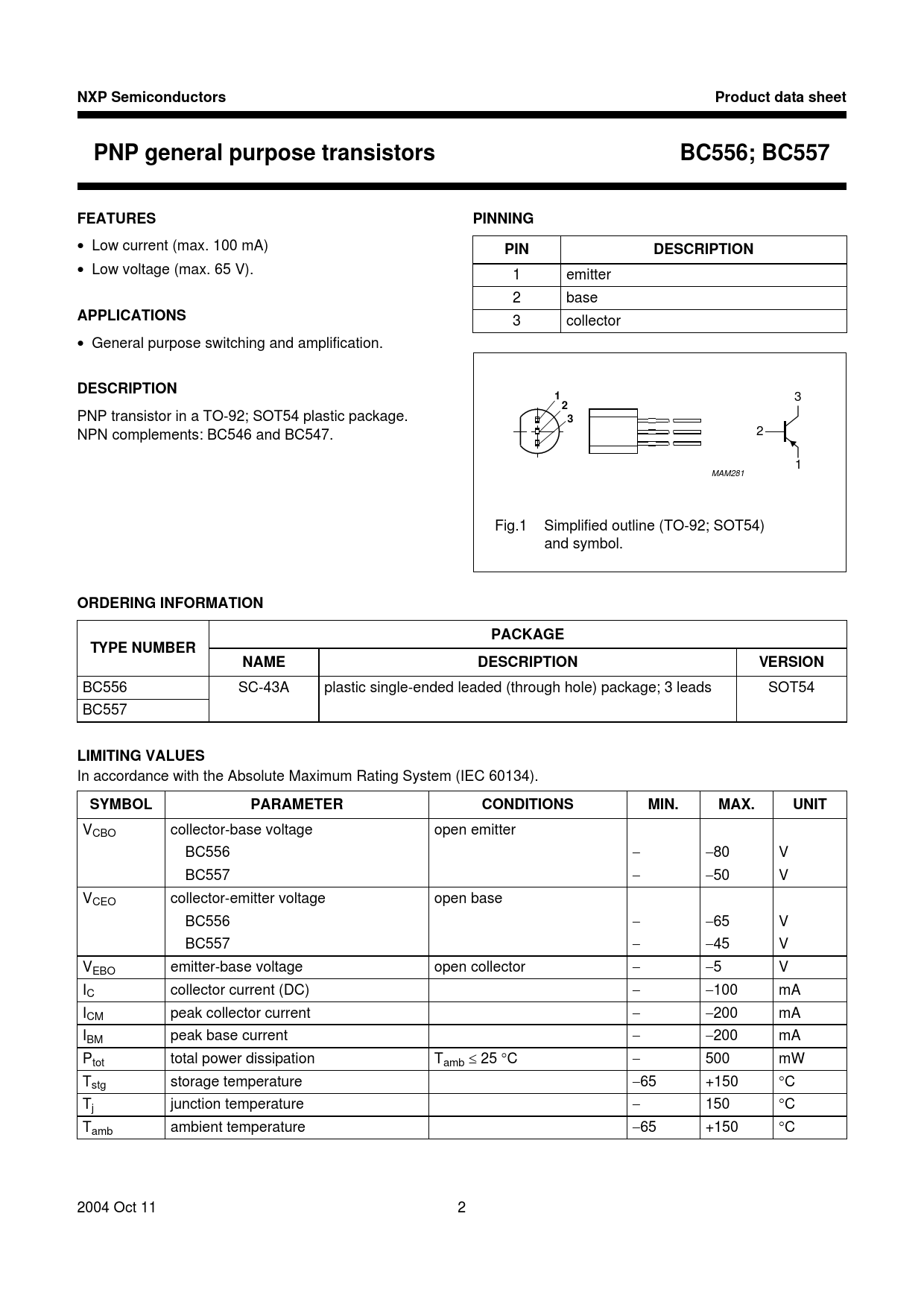

NXP Semiconductors Product data sheet PNP general purpose transistors BC556; BC557 FEATURES PINNING
• Low current (max. 100 mA)
PIN DESCRIPTION
• Low voltage (max. 65 V). 1 emitter 2 base
APPLICATIONS
3 collector • General purpose switching and amplification.
DESCRIPTION
handbook, halfpage
1
3
2
PNP transistor in a TO-92; SOT54 plastic package.
3
NPN complements: BC546 and BC547. 2 1 MAM281 Fig.1 Simplified outline (TO-92; SOT54) and symbol.
ORDERING INFORMATION PACKAGE TYPE NUMBER NAME DESCRIPTION VERSION
BC556 SC-43A plastic single-ended leaded (through hole) package; 3 leads SOT54 BC557
LIMITING VALUES
In accordance with the Absolute Maximum Rating System (IEC 60134).
SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VCBO collector-base voltage open emitter BC556 − −80 V BC557 − −50 V VCEO collector-emitter voltage open base BC556 − −65 V BC557 − −45 V VEBO emitter-base voltage open collector − −5 V IC collector current (DC) − −100 mA ICM peak collector current − −200 mA IBM peak base current − −200 mA Ptot total power dissipation Tamb ≤ 25 °C − 500 mW Tstg storage temperature −65 +150 °C Tj junction temperature − 150 °C Tamb ambient temperature −65 +150 °C 2004 Oct 11 2 Document Outline Features Applications Description Pinning Ordering information Limiting values Thermal characteristics Characteristics Package outline Data sheet status Disclaimers
