NXP Semiconductors. BC846BS. 65 V, 100 mA NPN/NPN general-purpose transistor. Table 6. Limiting values. Symbol. Parameter. Conditions
该数据表的模型线
文件文字版本
link to page 3 link to page 3 link to page 3

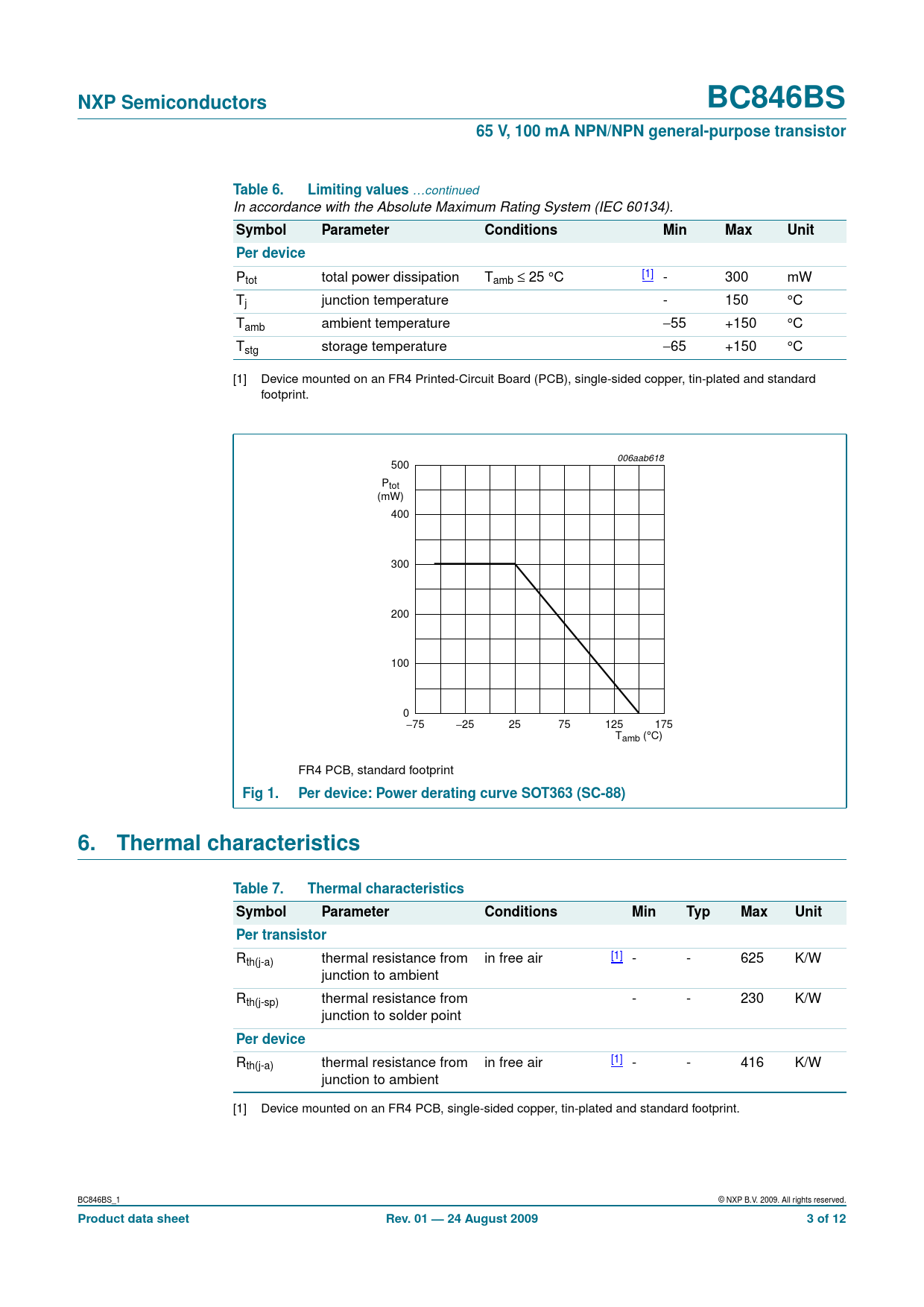

NXP Semiconductors BC846BS 65 V, 100 mA NPN/NPN general-purpose transistor Table 6. Limiting values
…continued In accordance with the Absolute Maximum Rating System (IEC 60134).
Symbol Parameter Conditions Min Max Unit Per device
P ≤ tot total power dissipation Tamb 25 °C [1] - 300 mW Tj junction temperature - 150 °C Tamb ambient temperature −55 +150 °C Tstg storage temperature −65 +150 °C [1] Device mounted on an FR4 Printed-Circuit Board (PCB), single-sided copper, tin-plated and standard footprint. 006aab618 500 Ptot (mW) 400 300 200 100 0−75 −25 25 75 125 175 Tamb (°C) FR4 PCB, standard footprint
Fig 1. Per device: Power derating curve SOT363 (SC-88) 6. Thermal characteristics Table 7. Thermal characteristics Symbol Parameter Conditions Min Typ Max Unit Per transistor
Rth(j-a) thermal resistance from in free air [1] - - 625 K/W junction to ambient Rth(j-sp) thermal resistance from - - 230 K/W junction to solder point
Per device
Rth(j-a) thermal resistance from in free air [1] - - 416 K/W junction to ambient [1] Device mounted on an FR4 PCB, single-sided copper, tin-plated and standard footprint. BC846BS_1 © NXP B.V. 2009. All rights reserved.
Product data sheet Rev. 01 — 24 August 2009 3 of 12
