NXP Semiconductors. BC846DS. 65 V, 100 mA NPN/NPN general-purpose transistor. Pinning information. Table 2. Pinning. Pin. Description
该数据表的模型线
文件文字版本
link to page 3 link to page 3

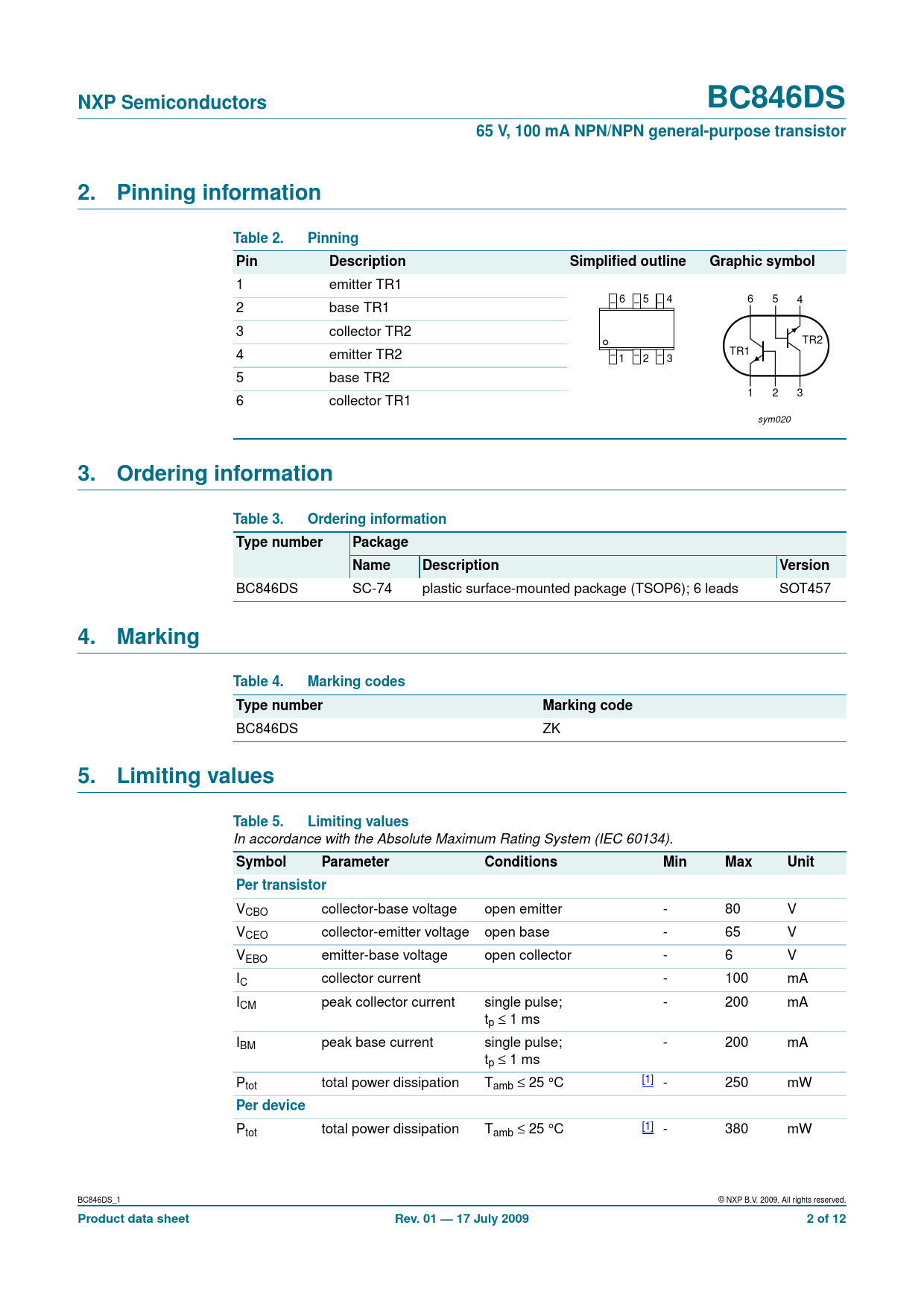

NXP Semiconductors BC846DS 65 V, 100 mA NPN/NPN general-purpose transistor 2. Pinning information Table 2. Pinning Pin Description Simplified outline Graphic symbol
1 emitter TR1 6 5 4 6 5 4 2 base TR1 3 collector TR2 TR2 4 emitter TR2 TR1 1 2 3 5 base TR2 1 2 3 6 collector TR1 sym020
3. Ordering information Table 3. Ordering information Type number Package Name Description Version
BC846DS SC-74 plastic surface-mounted package (TSOP6); 6 leads SOT457
4. Marking Table 4. Marking codes Type number Marking code
BC846DS ZK
5. Limiting values Table 5. Limiting values
In accordance with the Absolute Maximum Rating System (IEC 60134).
Symbol Parameter Conditions Min Max Unit Per transistor
VCBO collector-base voltage open emitter - 80 V VCEO collector-emitter voltage open base - 65 V VEBO emitter-base voltage open collector - 6 V IC collector current - 100 mA ICM peak collector current single pulse; - 200 mA tp ≤ 1 ms IBM peak base current single pulse; - 200 mA tp ≤ 1 ms Ptot total power dissipation Tamb ≤ 25 °C [1] - 250 mW
Per device
Ptot total power dissipation Tamb ≤ 25 °C [1] - 380 mW BC846DS_1 © NXP B.V. 2009. All rights reserved.
Product data sheet Rev. 01 — 17 July 2009 2 of 12
