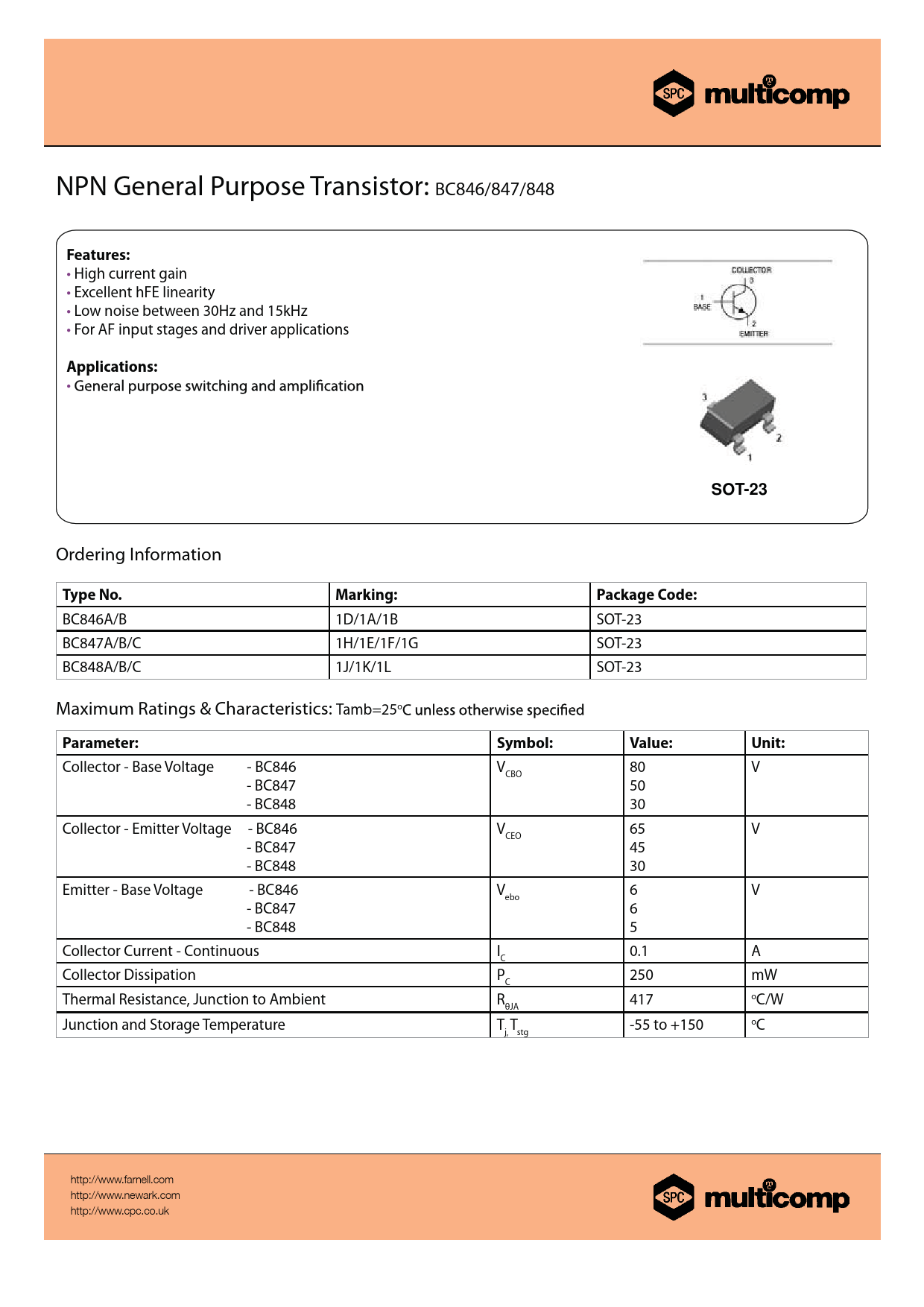

NPN General Purpose Transistor: BC846/847/848
Features:
tHigh current gain tExcellent hFE linearity tLow noise between 30Hz and 15kHz tFor AF input stages and driver applications
Applications:
t
SOT-23
Ordering Information
Type No. Marking: Package Code:
BC846A/B 1D/1A/1B SOT-23 BC847A/B/C 1H/1E/1F/1G SOT-23 BC848A/B/C 1J/1K/1L SOT-23 Maximum Ratings & Characteristics: Tamb=25o
Parameter: Symbol: Value: Unit:
Collector - Base Voltage - BC846 V 80 V CBO - BC847 50 - BC848 30 Collector - Emitter Voltage - BC846 V 65 V CEO - BC847 45 - BC848 30 Emitter - Base Voltage - BC846 V 6 V ebo - BC847 6 - BC848 5 Collector Current - Continuous I 0.1 A C Collector Dissipation P 250 mW C Thermal Resistance, Junction to Ambient R 417 oC/W θJA Junction and Storage Temperature T T -55 to +150 oC j, stg O[[W!^^^MHYULSSJVT O[[W!^^^UL^HYRJVT O[[W!^^^JWJJV\R
