Datasheet BC846AW, BC846BW, BC847AW, BC847BW, BC847CW, BC848AW, BC848BW, BC848CW (Diodes) - 5
| 制造商 | Diodes |
| 描述 | NPN |
| 页数 / 页 | 6 / 5 — BC846AW-BC848CW. Package Outline Dimensions. SOT323. Dim Min Max Typ. All … |
| 修订版 | 13-2 |
| 文件格式/大小 | PDF / 202 Kb |
| 文件语言 | 英语 |
BC846AW-BC848CW. Package Outline Dimensions. SOT323. Dim Min Max Typ. All Dimensions in mm. Suggested Pad Layout
该数据表的模型线
文件文字版本

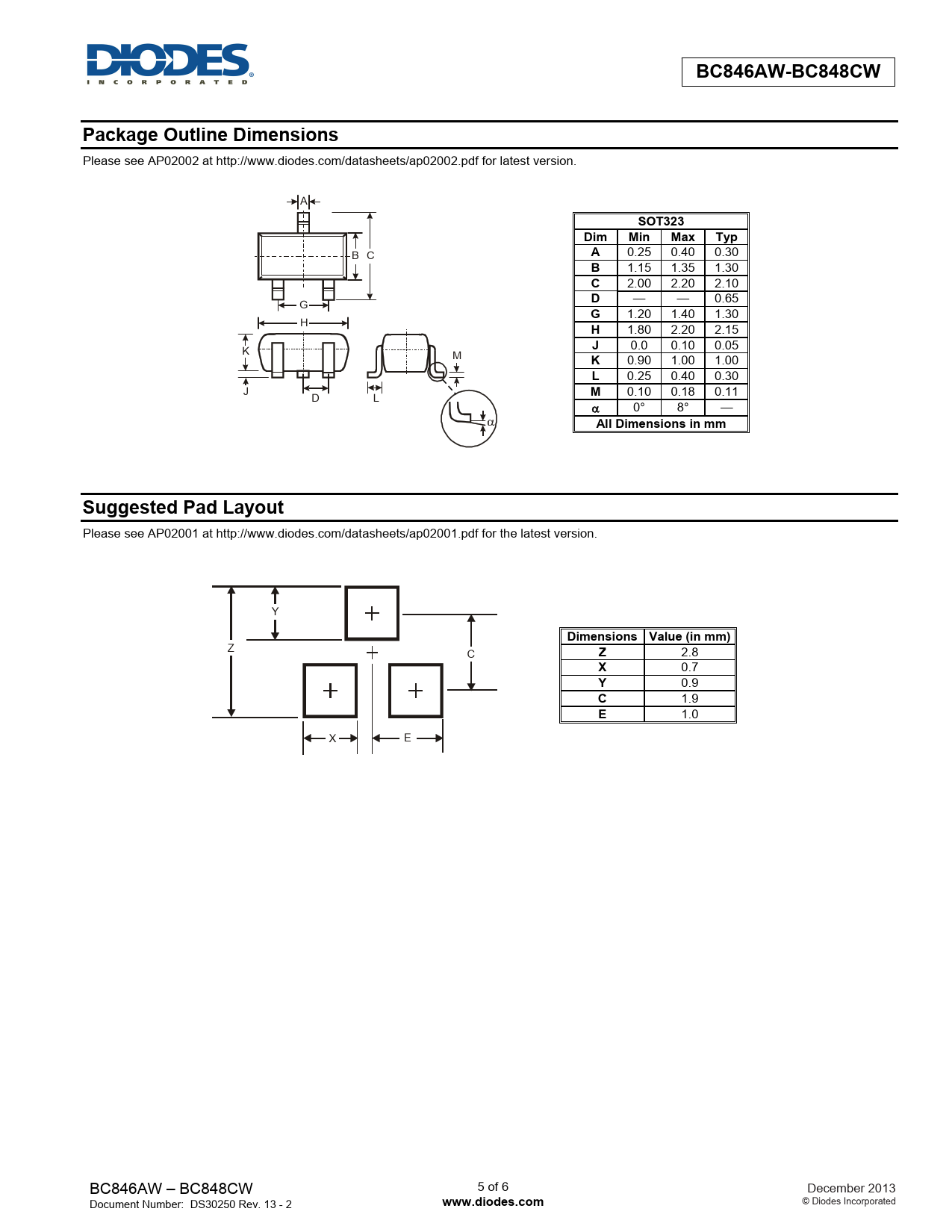

BC846AW-BC848CW Package Outline Dimensions
Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for latest version. A
SOT323 Dim Min Max Typ A
0.25 0.40 0.30 B C
B
1.15 1.35 1.30
C
2.00 2.20 2.10
D
— — 0.65 G
G
1.20 1.40 1.30 H
H
1.80 2.20 2.15
J
0.0 0.10 0.05 K M
K
0.90 1.00 1.00
L
0.25 0.40 0.30 J
M
0.10 0.18 0.11 D L 0° 8° —
All Dimensions in mm Suggested Pad Layout
Please see AP02001 at http://www.diodes.com/datasheets/ap02001.pdf for the latest version. Y
Dimensions Value (in mm)
Z C
Z
2.8
X
0.7
Y
0.9
C
1.9
E
1.0 X E BC846AW – BC848CW 5 of 6 December 2013 Document Number: DS30250 Rev. 13 - 2
www.diodes.com
© Diodes Incorporated
