Datasheet BC856A, BC856B, BC857A, BC857B, BC857C, BC858A, BC858B, BC858c (Diodes)
| 制造商 | Diodes |
| 描述 | PNP |
| 页数 / 页 | 7 / 1 — BC856A-BC858C. PNP SMALL SIGNAL TRANSISTOR IN SOT23. Features. Mechanical … |
| 文件格式/大小 | PDF / 363 Kb |
| 文件语言 | 英语 |
BC856A-BC858C. PNP SMALL SIGNAL TRANSISTOR IN SOT23. Features. Mechanical Data
该数据表的模型线
文件文字版本

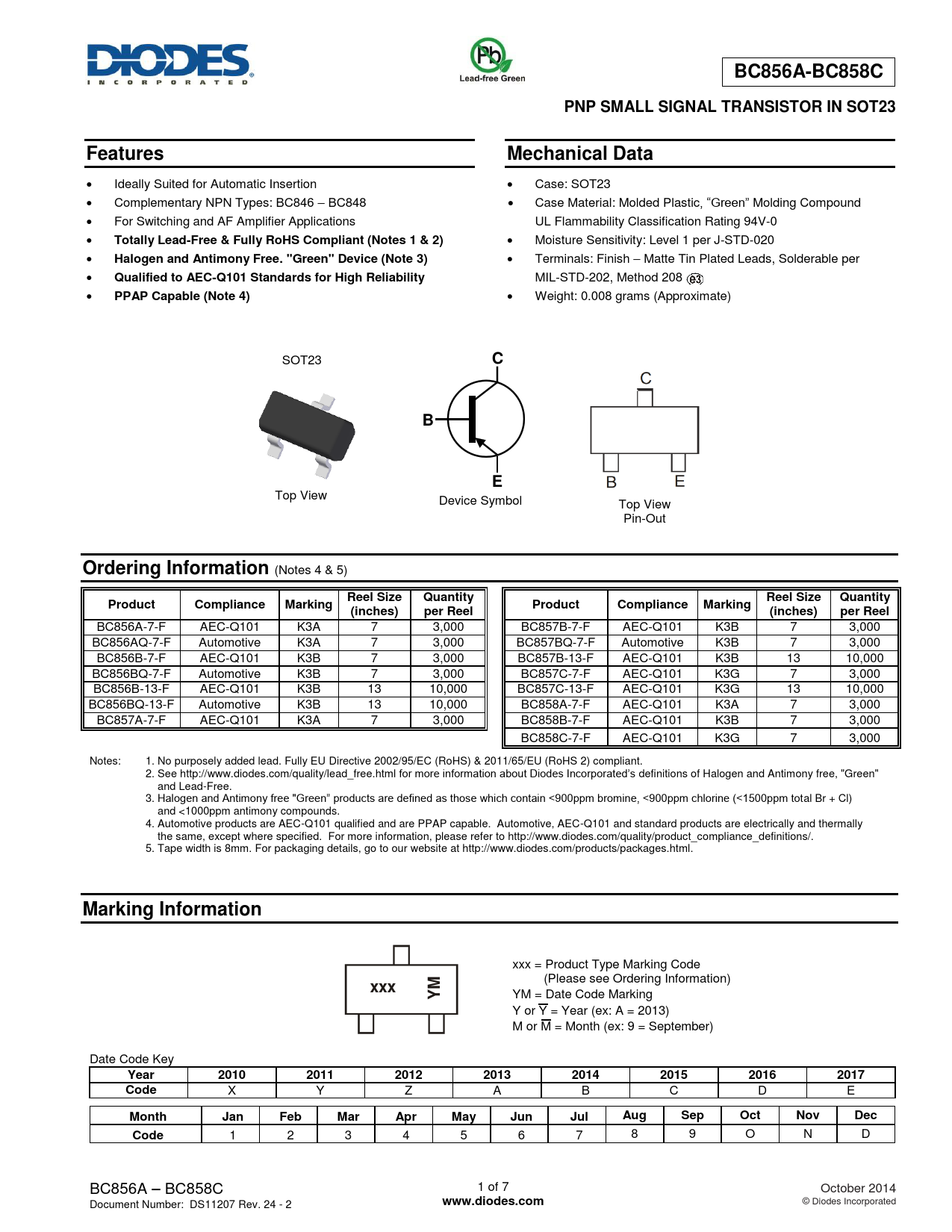

BC856A-BC858C PNP SMALL SIGNAL TRANSISTOR IN SOT23 Features Mechanical Data
Ideally Suited for Automatic Insertion Case: SOT23 Complementary NPN Types: BC846 – BC848 Case Material: Molded Plastic, “Green” Molding Compound For Switching and AF Amplifier Applications UL Flammability Classification Rating 94V-0
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Moisture Sensitivity: Level 1 per J-STD-020
Halogen and Antimony Free. "Green" Device (Note 3)
Terminals: Finish – Matte Tin Plated Leads, Solderable per
Qualified to AEC-Q101 Standards for High Reliability
MIL-STD-202, Method 208
PPAP Capable (Note 4)
Weight: 0.008 grams (Approximate) SOT23
C B E
Top View Device Symbol Top View Pin-Out
Ordering Information
(Notes 4 & 5)
Reel Size Quantity Reel Size Quantity Product Compliance Marking Product Compliance Marking (inches) per Reel (inches) per Reel
BC856A-7-F AEC-Q101 K3A 7 3,000 BC857B-7-F AEC-Q101 K3B 7 3,000 BC856AQ-7-F Automotive K3A 7 3,000 BC857BQ-7-F Automotive K3B 7 3,000 BC856B-7-F AEC-Q101 K3B 7 3,000 BC857B-13-F AEC-Q101 K3B 13 10,000 BC856BQ-7-F Automotive K3B 7 3,000 BC857C-7-F AEC-Q101 K3G 7 3,000 BC856B-13-F AEC-Q101 K3B 13 10,000 BC857C-13-F AEC-Q101 K3G 13 10,000 BC856BQ-13-F Automotive K3B 13 10,000 BC858A-7-F AEC-Q101 K3A 7 3,000 BC857A-7-F AEC-Q101 K3A 7 3,000 BC858B-7-F AEC-Q101 K3B 7 3,000 BC858C-7-F AEC-Q101 K3G 7 3,000 Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. 2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen and Antimony free, "Green" and Lead-Free. 3. Halogen and Antimony free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony compounds. 4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally the same, except where specified. For more information, please refer to http://www.diodes.com/quality/product_compliance_definitions/. 5. Tape width is 8mm. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
xxx = Product Type Marking Code (Please see Ordering Information)
xxx M Y
YM = Date Code Marking Y or Y = Year (ex: A = 2013) M or M = Month (ex: 9 = September) Date Code Key
Year 2010 2011 2012 2013 2014 2015 2016 2017 Code
X Y Z A B C D E
Month Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec Code
1 2 3 4 5 6 7 8 9 O N D BC856A – BC858C 1 of 7 October 2014 Document Number: DS11207 Rev. 24 - 2
www.diodes.com
© Diodes Incorporated
