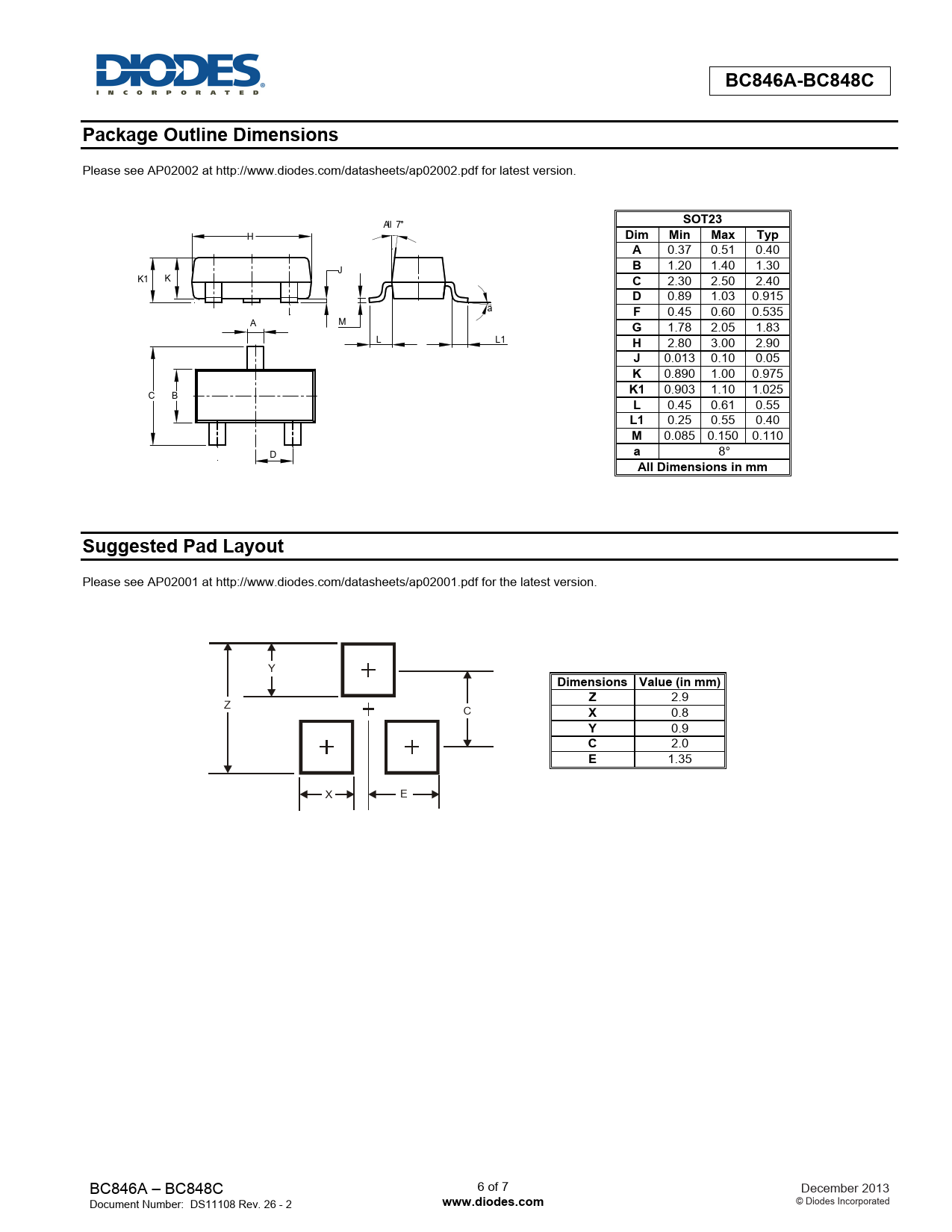

BC846A-BC848C Package Outline Dimensions
Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for latest version. A l 7 °
SOT23
H
Dim Min Max Typ A
0.37 0.51 0.40 J
B
1.20 1.40 1.30 K 1 K
C
2.30 2.50 2.40
D
0.89 1.03 0.915 a A M
F
0.45 0.60 0.535
G
1.78 2.05 1.83 L L 1
H
2.80 3.00 2.90
J
0.013 0.10 0.05
K
0.890 1.00 0.975 C B
K1
0.903 1.10 1.025
L
0.45 0.61 0.55
L1
0.25 0.55 0.40
M
0.085 0.150 0.110 D
a
 8°
All Dimensions in mm Suggested Pad Layout
Please see AP02001 at http://www.diodes.com/datasheets/ap02001.pdf for the latest version. Y
Dimensions Value (in mm) Z
2.9 Z C
X
0.8
Y
0.9
C
2.0
E
1.35 X E BC846A – BC848C 6 of 7 December 2013 Document Number: DS11108 Rev. 26 - 2
