Datasheet BC846, BC847, BC848, BC849, BC550 (Infineon) - 3
| 制造商 | Infineon |
| 描述 | NPN Silicon AF Transistors |
| 页数 / 页 | 19 / 3 — BC846...-BC850... Maximum Ratings. Parameter. Symbol. Value. Unit |
| 文件格式/大小 | PDF / 187 Kb |
| 文件语言 | 英语 |

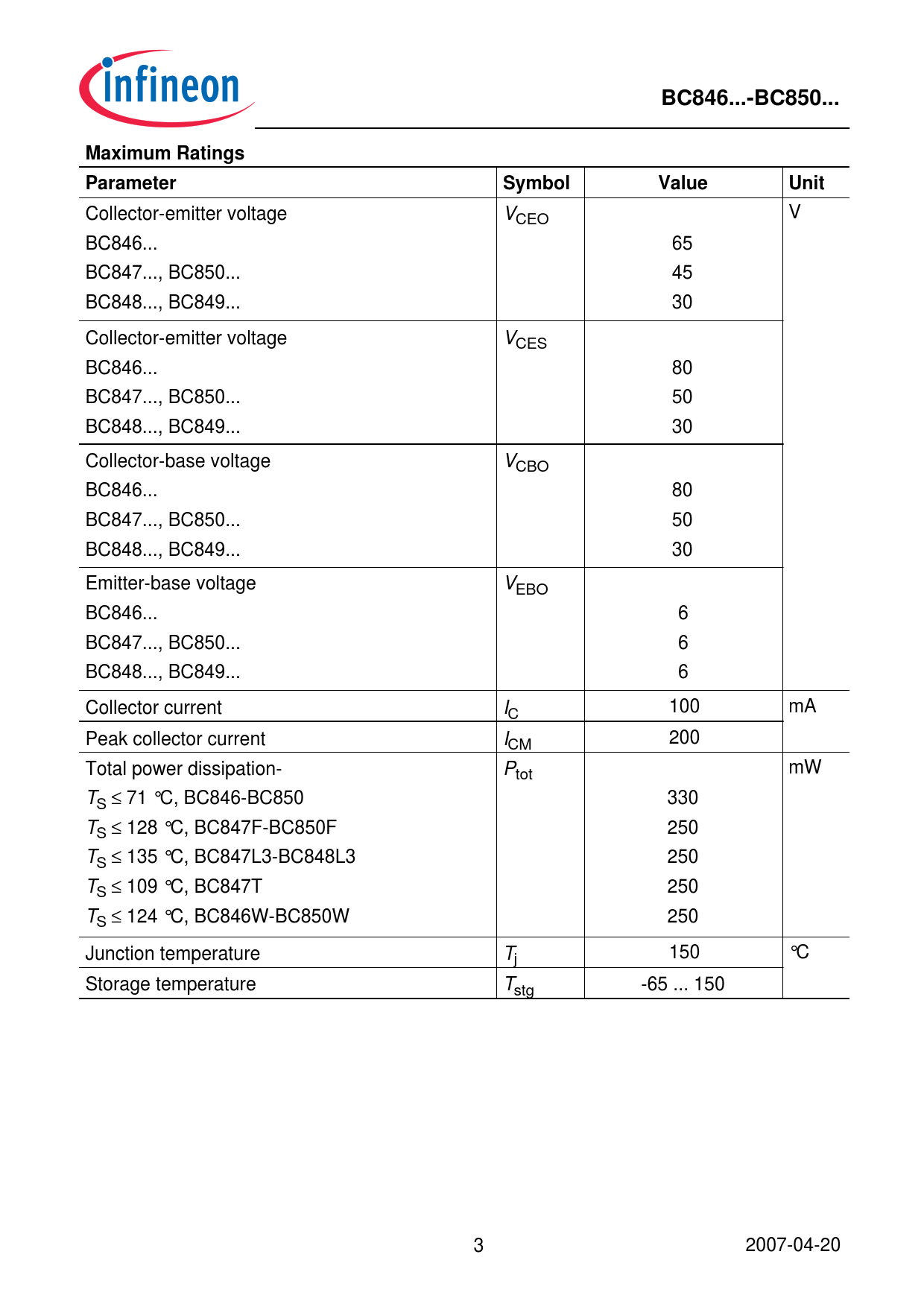

BC846...-BC850... Maximum Ratings. Parameter. Symbol. Value. Unit
该数据表的模型线
文件文字版本
BC846...-BC850... Maximum Ratings Parameter Symbol Value Unit
Collector-emitter voltage VCEO V BC846... 65 BC847..., BC850... 45 BC848..., BC849... 30 Collector-emitter voltage VCES BC846... 80 BC847..., BC850... 50 BC848..., BC849... 30 Collector-base voltage VCBO BC846... 80 BC847..., BC850... 50 BC848..., BC849... 30 Emitter-base voltage VEBO BC846... 6 BC847..., BC850... 6 BC848..., BC849... 6 Collector current IC 100 mA Peak collector current ICM 200 Total power dissipation- Ptot mW T ≤ S 71 °C, BC846-BC850 330 T ≤ S 128 °C, BC847F-BC850F 250 T ≤ S 135 °C, BC847L3-BC848L3 250 T ≤ S 109 °C, BC847T 250 T ≤ S 124 °C, BC846W-BC850W 250 Junction temperature Tj 150 °C Storage temperature Tstg -65 ... 150 3 2007-04-20
Collector-emitter voltage VCEO V BC846... 65 BC847..., BC850... 45 BC848..., BC849... 30 Collector-emitter voltage VCES BC846... 80 BC847..., BC850... 50 BC848..., BC849... 30 Collector-base voltage VCBO BC846... 80 BC847..., BC850... 50 BC848..., BC849... 30 Emitter-base voltage VEBO BC846... 6 BC847..., BC850... 6 BC848..., BC849... 6 Collector current IC 100 mA Peak collector current ICM 200 Total power dissipation- Ptot mW T ≤ S 71 °C, BC846-BC850 330 T ≤ S 128 °C, BC847F-BC850F 250 T ≤ S 135 °C, BC847L3-BC848L3 250 T ≤ S 109 °C, BC847T 250 T ≤ S 124 °C, BC846W-BC850W 250 Junction temperature Tj 150 °C Storage temperature Tstg -65 ... 150 3 2007-04-20
