Datasheet BC847BS (MCC)
| 制造商 | MCC |
| 描述 | Dual NPN Small Signal Transistors |
| 页数 / 页 | 4 / 1 — BC847BS. Features. Dual NPN. Small Signal. Transistors. Maximum Ratings @ … |
| 文件格式/大小 | PDF / 742 Kb |
| 文件语言 | 英语 |
BC847BS. Features. Dual NPN. Small Signal. Transistors. Maximum Ratings @ 25°C Unless Otherwise Specified. Parameter. Symbol. Rating
该数据表的模型线
文件文字版本

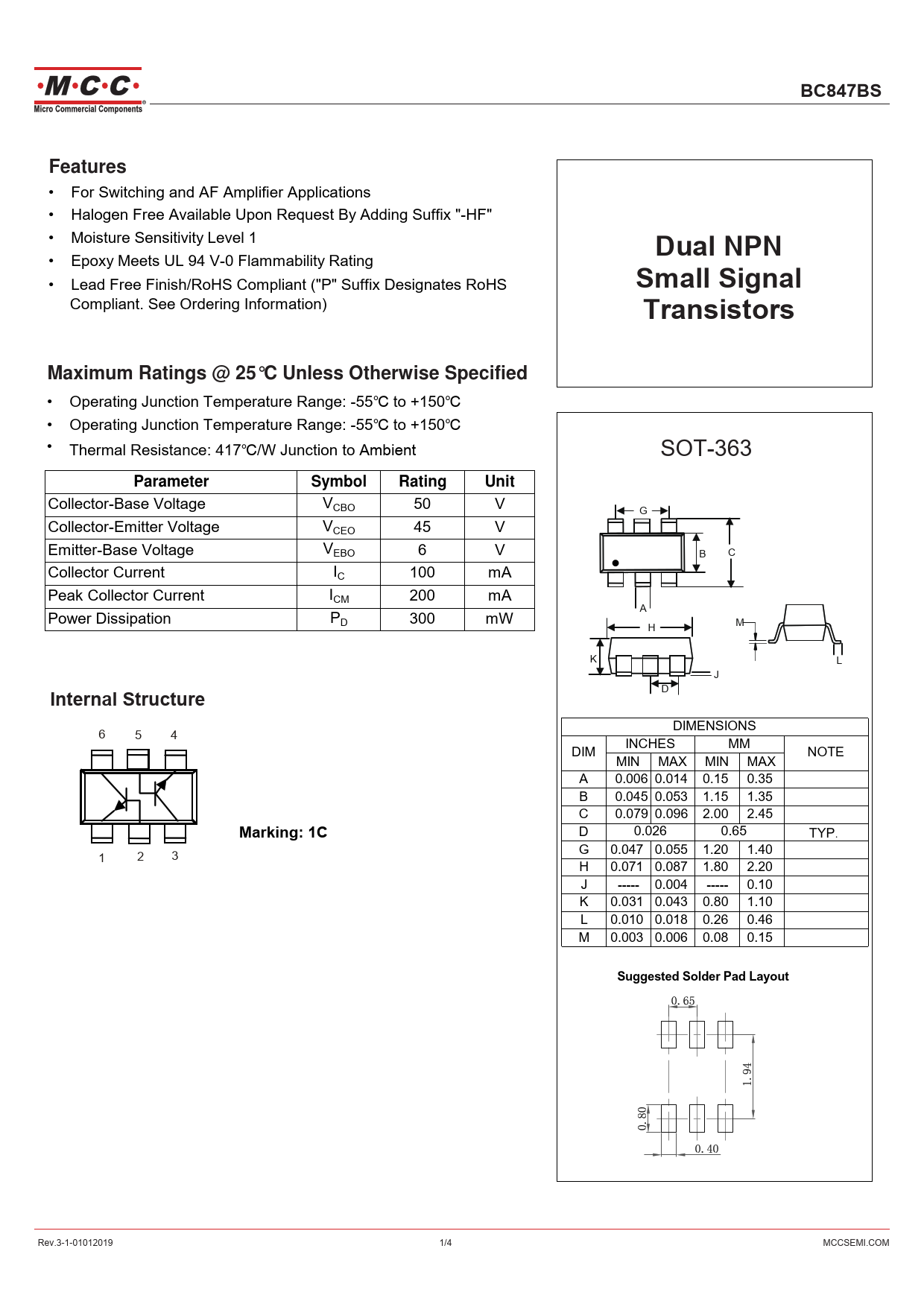

BC847BS Features
• For Switching and AF Amplifier Applications • Halogen Free Available Upon Request By Adding Suffix "-HF" • Moisture Sensitivity Level 1
Dual NPN
• Epoxy Meets UL 94 V-0 Flammability Rating • Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS
Small Signal
Compliant. See Ordering Information)
Transistors Maximum Ratings @ 25°C Unless Otherwise Specified
• Operating Junction Temperature Range: -55℃ to +150℃ • Operating Junction Temperature Range: -55℃ to +150℃ • Thermal Resistance: 417℃/W Junction to Ambient SOT-363
Parameter Symbol Rating Unit
Collector-Base Voltage VCBO 50 V G Collector-Emitter Voltage VCEO 45 V Emitter-Base Voltage VEBO 6 V B C Collector Current I • C 100 mA Peak Collector Current ICM 200 mA A Power Dissipation PD 300 mW M H K L J
Internal Structure
D DIMENSIONS 6 5 4 DIM INCHES MM NOTE MIN MAX MIN MAX A 0.006 0.014 0.15 0.35 B 0.045 0.053 1.15 1.35 C 0.079 0.096 2.00 2.45
Marking: 1C
D 0.026 0.65 TYP. G 0.047 0.055 1.20 1.40 1 2 3 H 0.071 0.087 1.80 2.20 J ----- 0.004 ----- 0.10 K 0.031 0.043 0.80 1.10 L 0.010 0.018 0.26 0.46 M 0.003 0.006 0.08 0.15
Suggested Solder Pad Layout
Rev.3-1-01012019 1/4 MCCSEMI.COM
• For Switching and AF Amplifier Applications • Halogen Free Available Upon Request By Adding Suffix "-HF" • Moisture Sensitivity Level 1
Dual NPN
• Epoxy Meets UL 94 V-0 Flammability Rating • Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS
Small Signal
Compliant. See Ordering Information)
Transistors Maximum Ratings @ 25°C Unless Otherwise Specified
• Operating Junction Temperature Range: -55℃ to +150℃ • Operating Junction Temperature Range: -55℃ to +150℃ • Thermal Resistance: 417℃/W Junction to Ambient SOT-363
Parameter Symbol Rating Unit
Collector-Base Voltage VCBO 50 V G Collector-Emitter Voltage VCEO 45 V Emitter-Base Voltage VEBO 6 V B C Collector Current I • C 100 mA Peak Collector Current ICM 200 mA A Power Dissipation PD 300 mW M H K L J
Internal Structure
D DIMENSIONS 6 5 4 DIM INCHES MM NOTE MIN MAX MIN MAX A 0.006 0.014 0.15 0.35 B 0.045 0.053 1.15 1.35 C 0.079 0.096 2.00 2.45
Marking: 1C
D 0.026 0.65 TYP. G 0.047 0.055 1.20 1.40 1 2 3 H 0.071 0.087 1.80 2.20 J ----- 0.004 ----- 0.10 K 0.031 0.043 0.80 1.10 L 0.010 0.018 0.26 0.46 M 0.003 0.006 0.08 0.15
Suggested Solder Pad Layout
Rev.3-1-01012019 1/4 MCCSEMI.COM
