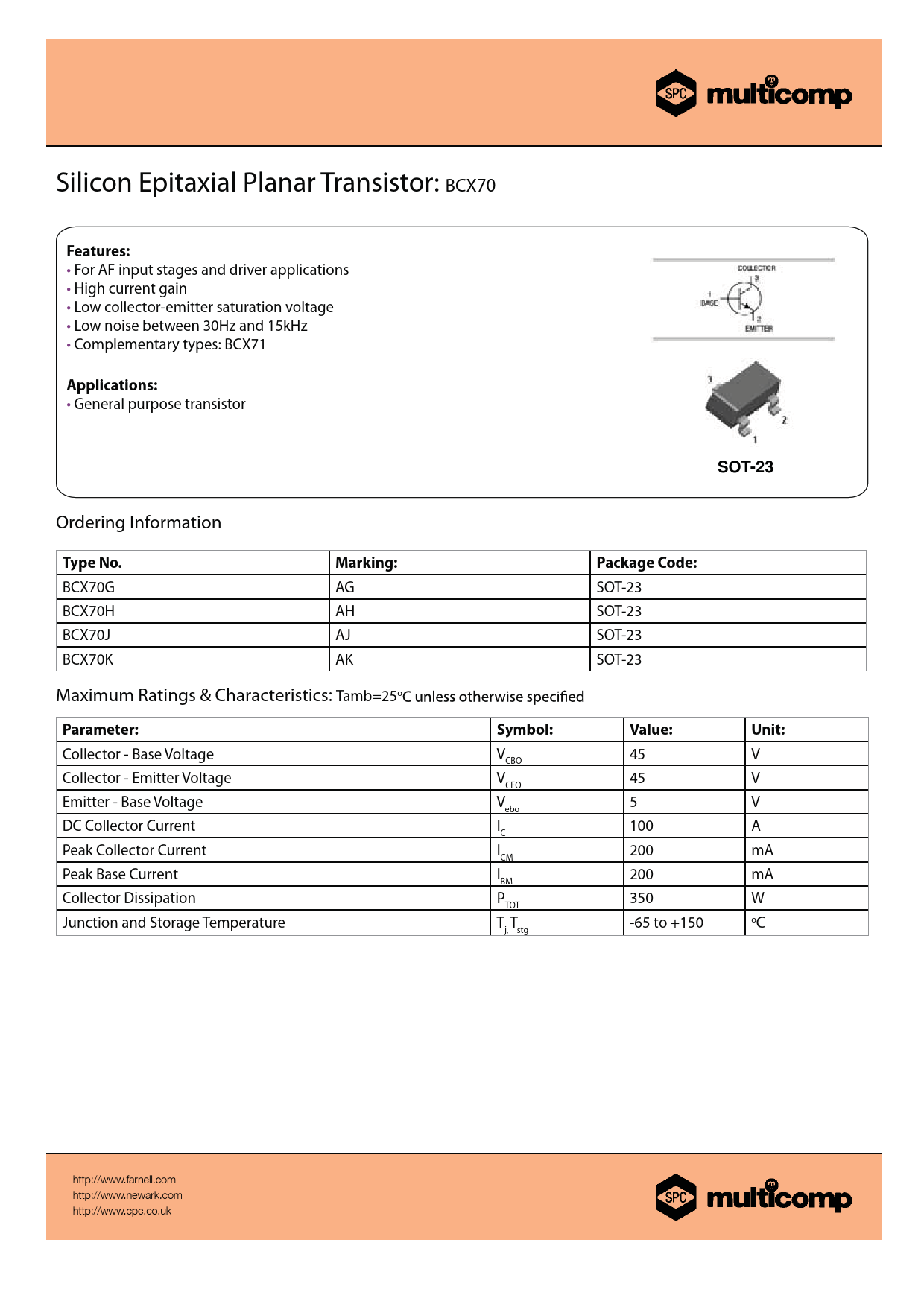

Silicon Epitaxial Planar Transistor: BCX70
Features:
tFor AF input stages and driver applications tHigh current gain tLow collector-emitter saturation voltage tLow noise between 30Hz and 15kHz tComplementary types: BCX71
Applications:
tGeneral purpose transistor
SOT-23
Ordering Information
Type No. Marking: Package Code:
BCX70G AG SOT-23 BCX70H AH SOT-23 BCX70J AJ SOT-23 BCX70K AK SOT-23 Maximum Ratings & Characteristics: Tamb=25o
Parameter: Symbol: Value: Unit:
Collector - Base Voltage V 45 V CBO Collector - Emitter Voltage V 45 V CEO Emitter - Base Voltage V 5 V ebo DC Collector Current I 100 A C Peak Collector Current I 200 mA CM Peak Base Current I 200 mA BM Collector Dissipation P 350 W TOT Junction and Storage Temperature T T -65 to +150 oC j, stg O[[W!^^^MHYULSSJVT O[[W!^^^UL^HYRJVT O[[W!^^^JWJJV\R
