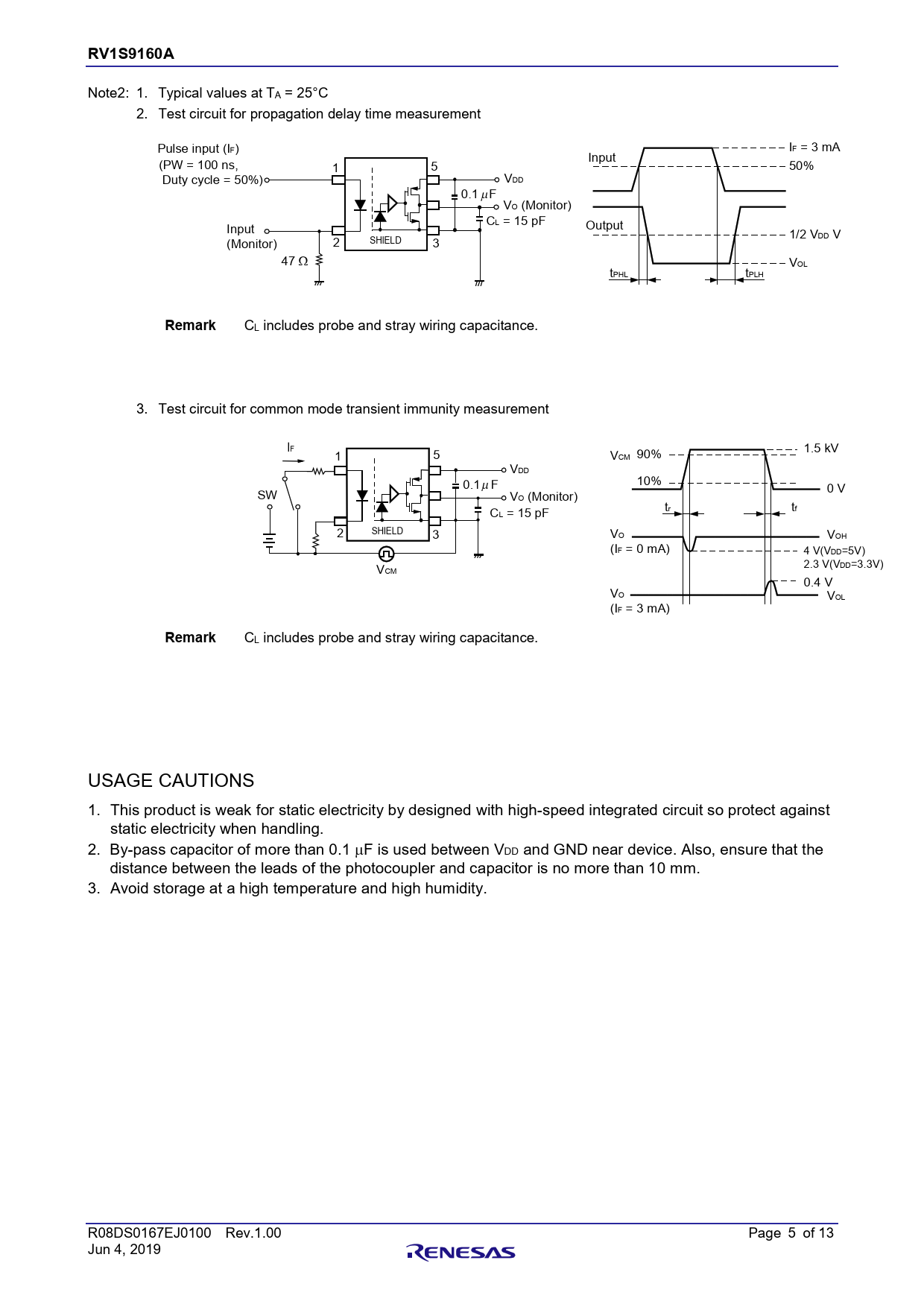

RV1S9160A 章題 Note2: 1. Typical values at TA = 25°C 2. Test circuit for propagation delay time measurement Pulse input (IF) I F = 3 mA Input (PW = 100 ns, 1 5 50% Duty cycle = 50%) VDD 0.1 F VO (Monitor) CL = 15 pF Output Input 1/2 VDD V (Monitor) 2 SHIELD 3 47 W VOL tPHL tPLH Remark CL includes probe and stray wiring capacitance. 3. Test circuit for common mode transient immunity measurement IF 1.5 kV 1 5 VCM 90% VDD 10% 0.1  F 0 V SW VO (Monitor) tr tf CL = 15 pF SHIELD 2 3 VO VOH (IF = 0 mA) 4 V(VDD=5V) V 2.3 V(VDD=3.3V) CM 0.4 V VO VOL (IF = 3 mA) Remark CL includes probe and stray wiring capacitance. USAGE CAUTIONS 1. This product is weak for static electricity by designed with high-speed integrated circuit so protect against static electricity when handling. 2. By-pass capacitor of more than 0.1 F is used between VDD and GND near device. Also, ensure that the distance between the leads of the photocoupler and capacitor is no more than 10 mm. 3. Avoid storage at a high temperature and high humidity. R08DS0167EJ0100 Rev.1.00 Page 5 of 13 Jun 4, 2019
