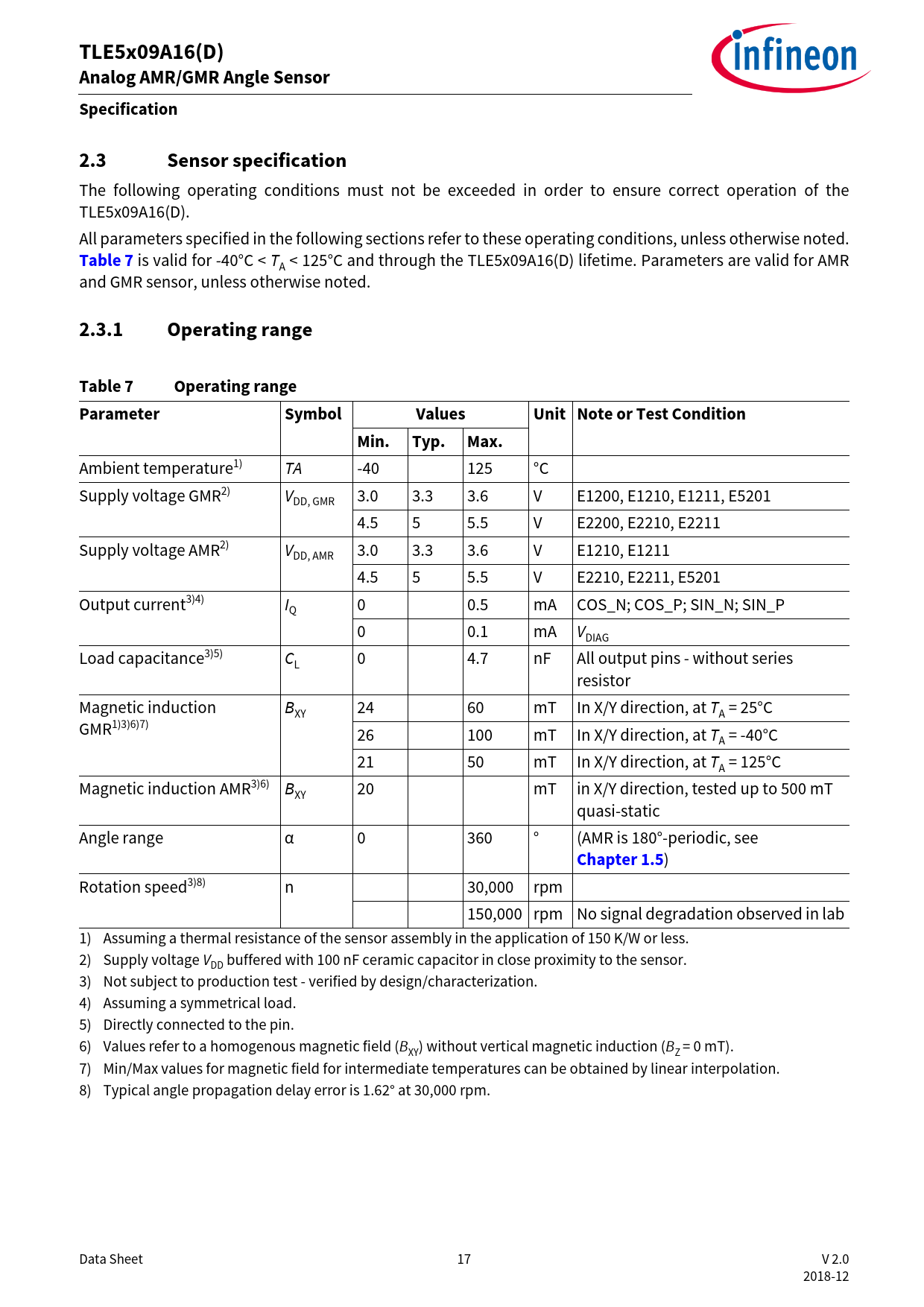

TLE5x09A16(D) Analog AMR/GMR Angle Sensor Specification 2.3 Sensor specification
The following operating conditions must not be exceeded in order to ensure correct operation of the TLE5x09A16(D). All parameters specified in the following sections refer to these operating conditions, unless otherwise noted.
Table 7
is valid for -40°C < T < 125°C and through the TLE5x09A16(D) lifetime. Parameters are valid for AMR A and GMR sensor, unless otherwise noted.
2.3.1 Operating range Table 7 Operating range Parameter Symbol Values Unit Note or Test Condition Min. Typ. Max.
Ambient temperature1) TA -40 125 °C Supply voltage GMR2) V 3.0 3.3 3.6 V E1200, E1210, E1211, E5201 DD, GMR 4.5 5 5.5 V E2200, E2210, E2211 Supply voltage AMR2) V 3.0 3.3 3.6 V E1210, E1211 DD, AMR 4.5 5 5.5 V E2210, E2211, E5201 Output current3)4) I 0 0.5 mA COS_N; COS_P; SIN_N; SIN_P Q 0 0. C 0 4.7 nF All output pins - without series L 1 mA VDIAG Load capacitance3)5) resistor Magnetic induction B 24 60 mT In X/Y direction, at T = 25°C XY A GMR1)3)6)7) 26 100 mT In X/Y direction, at T = -40°C A 21 50 mT In X/Y direction, at T = 125°C A Magnetic induction AMR3)6) B 20 mT in X/Y direction, tested up to 500 mT XY quasi-static Angle range α 0 360 ° (AMR is 180°-periodic, see
Chapter 1.5
) Rotation speed3)8) n 30,000 rpm 150,000 rpm No signal degradation observed in lab 1) Assuming a thermal resistance of the sensor assembly in the application of 150 K/W or less. 2) Supply voltage V buffered with 100 nF ceramic capacitor in close proximity to the sensor. DD 3) Not subject to production test - verified by design/characterization. 4) Assuming a symmetrical load. 5) Directly connected to the pin. 6) Values refer to a homogenous magnetic field (B ) without vertical magnetic induction (B = 0 mT). XY Z 7) Min/Max values for magnetic field for intermediate temperatures can be obtained by linear interpolation. 8) Typical angle propagation delay error is 1.62° at 30,000 rpm. Data Sheet 17 V 2.0 2018-12 Document Outline Features Functional Safety Product Validation Potential Applications Description Table of Contents 1 Functional description 1.1 General 1.2 Pin configuration 1.3 Pin description 1.4 Block diagram 1.5 Dual die angle output 2 Specification 2.1 Application circuit 2.2 Absolute maximum ratings 2.3 Sensor specification 2.3.1 Operating range 2.3.2 Electrical parameters 2.3.3 Output parameters 2.4 Error diagnosis 2.5 Angle performance 2.6 Electrostatic discharge protection 2.7 Electro magnetic compatibility (EMC) 3 Package information 3.1 Package parameters 3.2 Package outlines 3.3 Footprint 3.4 Packing 3.5 Marking 4 Revision history
