Datasheet VEML6035 (Vishay) - 4
| 制造商 | Vishay |
| 描述 | Low Power, High Sensitivity, I²C, Accuracy Ambient Light Sensor |
| 页数 / 页 | 15 / 4 — VEML6035. PARAMETER TIMING INFORMATION |
| 文件格式/大小 | PDF / 222 Kb |
| 文件语言 | 英语 |
VEML6035. PARAMETER TIMING INFORMATION
该数据表的模型线
文件文字版本
VEML6035
www.vishay.com Vishay Semiconductors
PARAMETER TIMING INFORMATION
I2C bus clock (SCLK) I2C bus data SA7 SA6 SA5 SA4 SA3 SA2 SA1 SA7 SA6 SA5 SA4 SA3 SA2 SA1 SA0
W

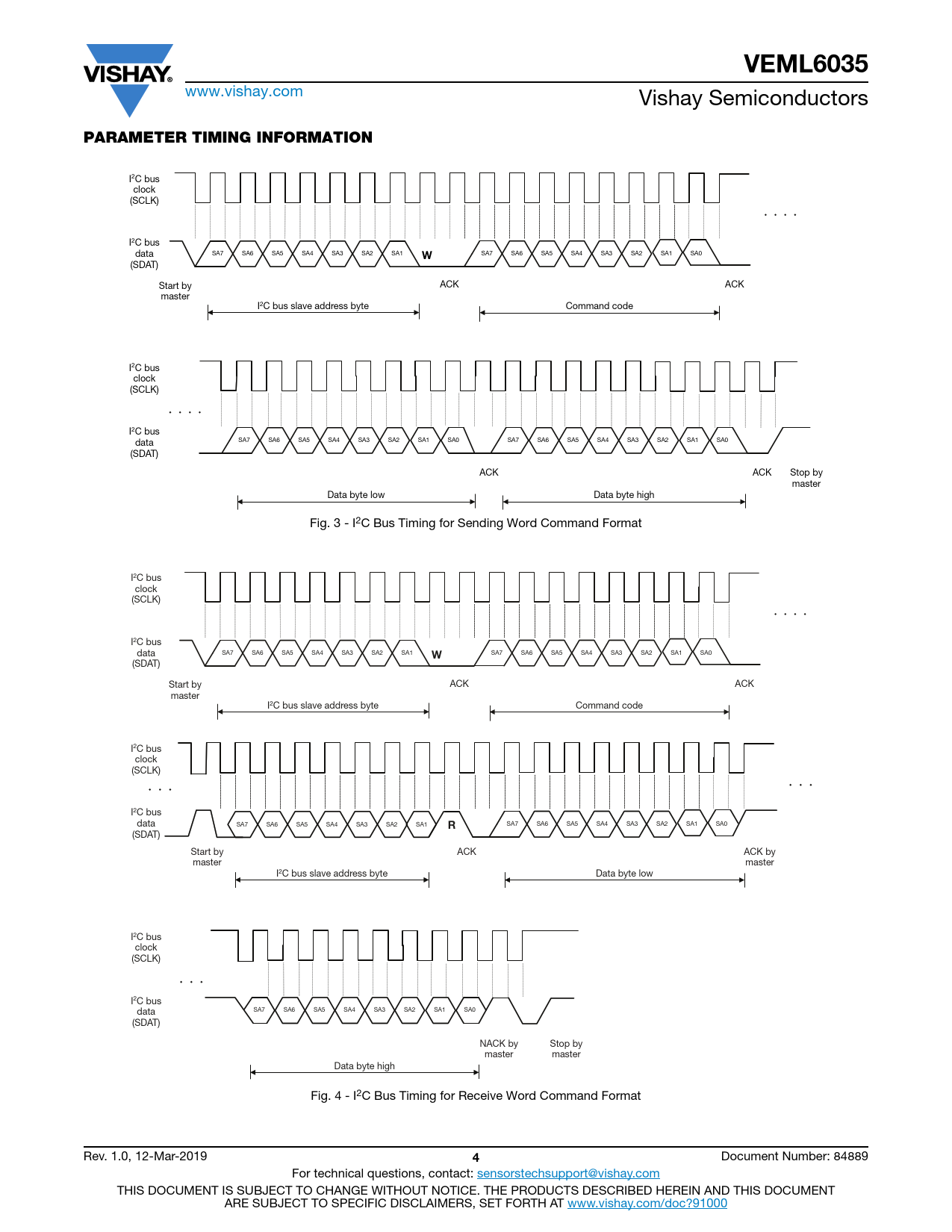

(SDAT) Start by ACK ACK master I2C bus slave address byte Command code I2C bus clock (SCLK) I2C bus data SA7 SA6 SA5 SA4 SA3 SA2 SA1 SA0 SA7 SA6 SA5 SA4 SA3 SA2 SA1 SA0 (SDAT) ACK ACK Stop by master Data byte low Data byte high Fig. 3 - I2C Bus Timing for Sending Word Command Format I2C bus clock (SCLK) I2C bus data SA7 SA6 SA5 SA4 SA3 SA2 SA1 SA7 SA6 SA5 SA4 SA3 SA2 SA1 SA0
W
(SDAT) Start by ACK ACK master I2C bus slave address byte Command code I2C bus clock (SCLK) I2C bus data SA7 SA6 SA5 SA4 SA3 SA2 SA1 SA7 SA6 SA5 SA4 SA3 SA2 SA1 SA0
R
(SDAT) Start by ACK ACK by master master I2C bus slave address byte Data byte low I2C bus clock (SCLK) I2C bus data SA7 SA6 SA5 SA4 SA3 SA2 SA1 SA0 (SDAT) NACK by Stop by master master Data byte high Fig. 4 - I2C Bus Timing for Receive Word Command Format Rev. 1.0, 12-Mar-2019
4
Document Number: 84889 For technical questions, contact: sensorstechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
