Marking Code. Tape and Reel Specification. Ordering Information. Part Number. Qty per Reel. Pocket Pitch. Reel Size. RClamp3324P
该数据表的模型线
文件文字版本

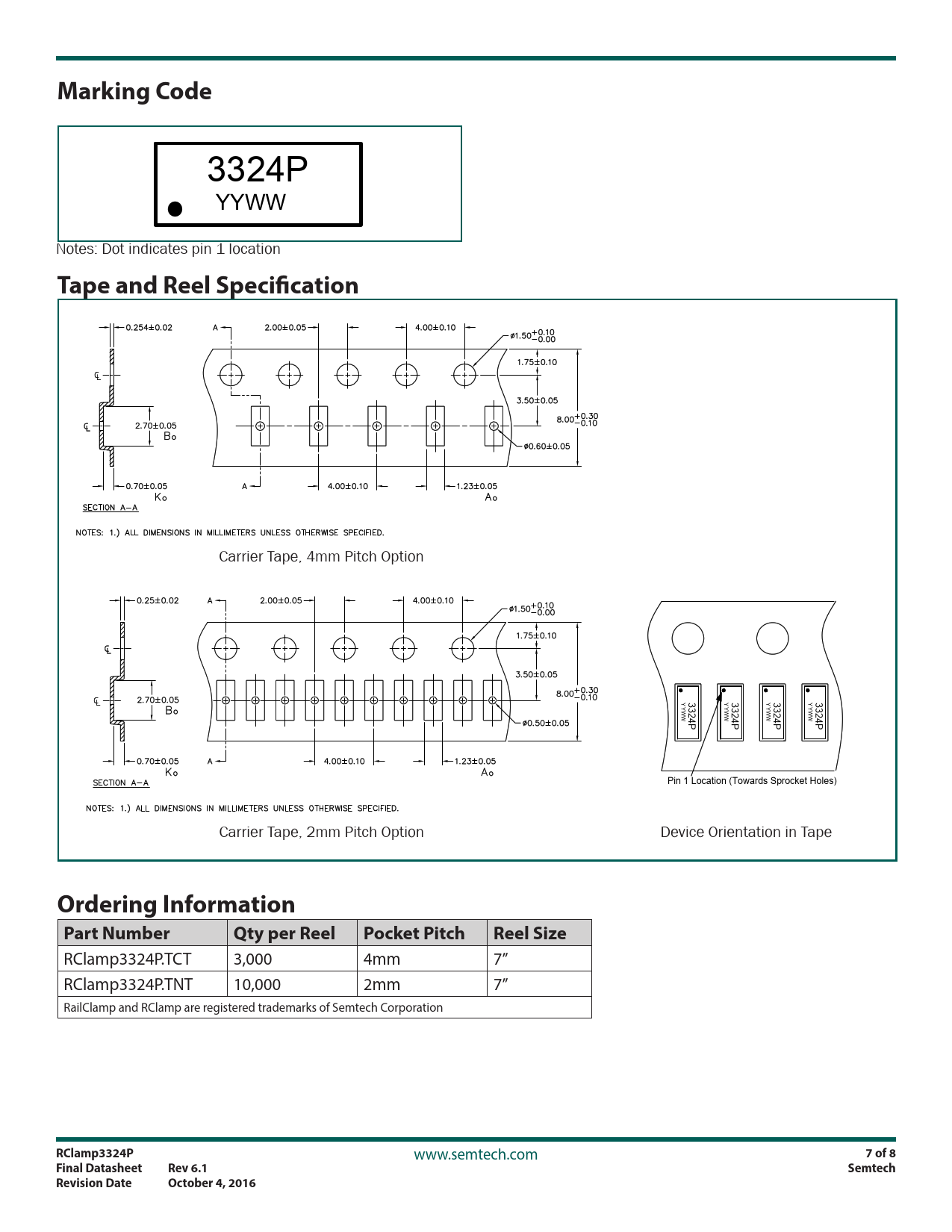

Marking Code
3324P YYWW Notes: Dot indicates pin 1 location
Tape and Reel Specification
Carrier Tape, 4mm Pitch Option YYW 332 YYW 332 YYW 332 YYW 332 W 4P W 4P W 4P W 4P Pin 1 Location (Towards Sprocket Holes) Carrier Tape, 2mm Pitch Option Device Orientation in Tape
Ordering Information Part Number Qty per Reel Pocket Pitch Reel Size
RClamp3324P.TCT 3,000 4mm 7” RClamp3324P.TNT 10,000 2mm 7” RailClamp and RClamp are registered trademarks of Semtech Corporation
RClamp3324P
www.semtech.com
7 of 8 Final Datasheet Rev 6.1 Semtech Revision Date October 4, 2016
