Datasheet LTC2050, LTC2050HV (Analog Devices) - 2
| 制造商 | Analog Devices |
| 描述 | High Voltage Zero-Drift Operational Amplifier in SOT-23 with Extended Temperature Range |
| 页数 / 页 | 18 / 2 — ABSOLUTE MAXIMUM RATINGS. (Note 1). PIN CONFIGURATION. ORDER INFORMATION … |
| 修订版 | E |
| 文件格式/大小 | PDF / 880 Kb |
| 文件语言 | 英语 |
ABSOLUTE MAXIMUM RATINGS. (Note 1). PIN CONFIGURATION. ORDER INFORMATION LEAD FREE FINISH. TAPE AND REEL. PART MARKING*
文件文字版本

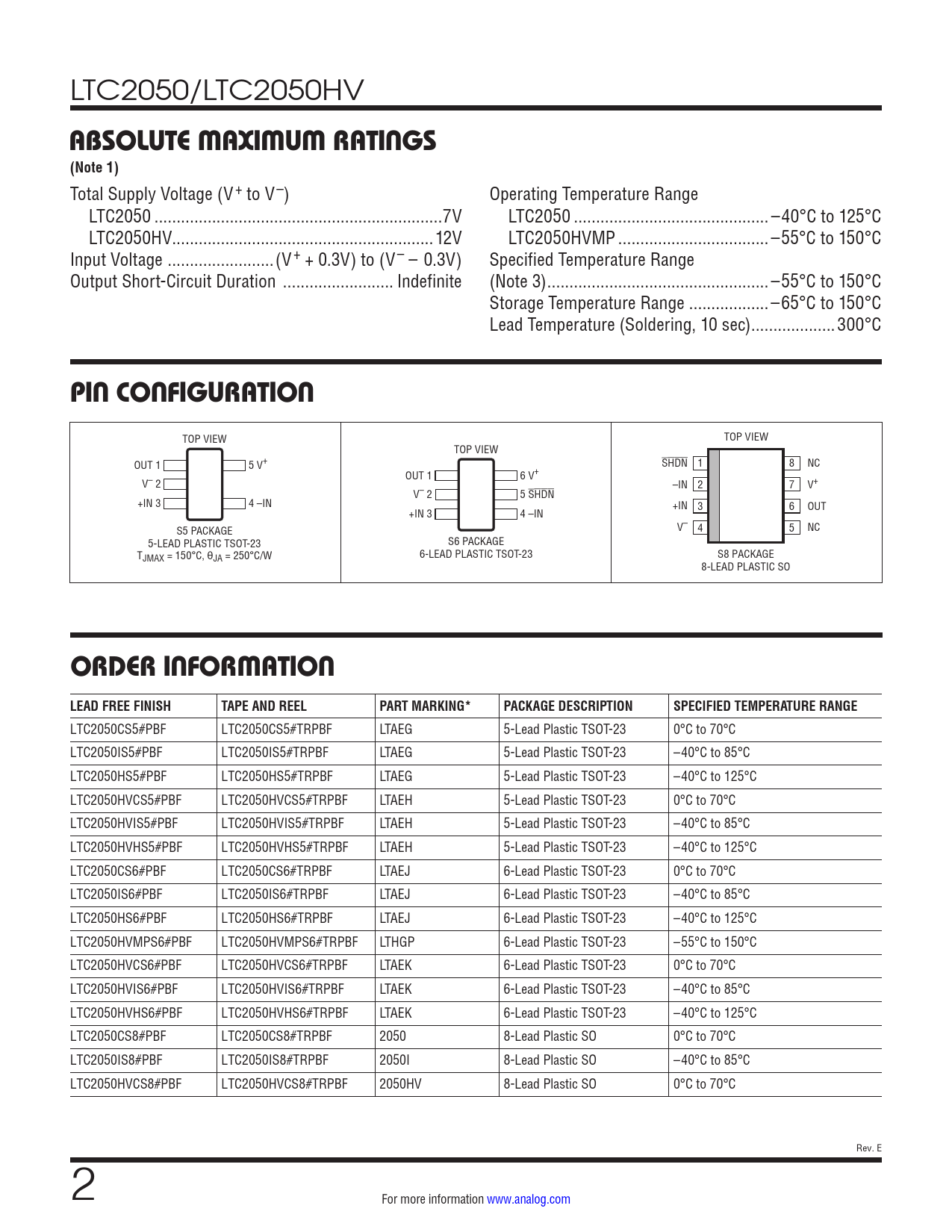

LTC2050/LTC2050HV
ABSOLUTE MAXIMUM RATINGS (Note 1)
Total Supply Voltage (V+ to V–) Operating Temperature Range LTC2050 ...7V LTC2050 .. –40°C to 125°C LTC2050HV...12V LTC2050HVMP ..–55°C to 150°C Input Voltage ..(V+ + 0.3V) to (V– – 0.3V) Specified Temperature Range Output Short-Circuit Duration ... Indefinite (Note 3) ..–55°C to 150°C Storage Temperature Range ..–65°C to 150°C Lead Temperature (Soldering, 10 sec) ...300°C
PIN CONFIGURATION
TOP VIEW TOP VIEW TOP VIEW OUT 1 5 V+ SHDN 1 8 NC OUT 1 6 V+ V– 2 –IN 2 7 V+ V– 2 5 SHDN +IN 3 4 –IN +IN 3 6 OUT +IN 3 4 –IN S5 PACKAGE V– 4 5 NC 5-LEAD PLASTIC TSOT-23 S6 PACKAGE TJMAX = 150°C, θJA = 250°C/W 6-LEAD PLASTIC TSOT-23 S8 PACKAGE TJMAX = 150°C, θJA = 230°C/W 8-LEAD PLASTIC SO TJMAX = 150°C, θJA = 190°C/W
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION SPECIFIED TEMPERATURE RANGE
LTC2050CS5#PBF LTC2050CS5#TRPBF LTAEG 5-Lead Plastic TSOT-23 0°C to 70°C LTC2050IS5#PBF LTC2050IS5#TRPBF LTAEG 5-Lead Plastic TSOT-23 –40°C to 85°C LTC2050HS5#PBF LTC2050HS5#TRPBF LTAEG 5-Lead Plastic TSOT-23 –40°C to 125°C LTC2050HVCS5#PBF LTC2050HVCS5#TRPBF LTAEH 5-Lead Plastic TSOT-23 0°C to 70°C LTC2050HVIS5#PBF LTC2050HVIS5#TRPBF LTAEH 5-Lead Plastic TSOT-23 –40°C to 85°C LTC2050HVHS5#PBF LTC2050HVHS5#TRPBF LTAEH 5-Lead Plastic TSOT-23 –40°C to 125°C LTC2050CS6#PBF LTC2050CS6#TRPBF LTAEJ 6-Lead Plastic TSOT-23 0°C to 70°C LTC2050IS6#PBF LTC2050IS6#TRPBF LTAEJ 6-Lead Plastic TSOT-23 –40°C to 85°C LTC2050HS6#PBF LTC2050HS6#TRPBF LTAEJ 6-Lead Plastic TSOT-23 –40°C to 125°C LTC2050HVMPS6#PBF LTC2050HVMPS6#TRPBF LTHGP 6-Lead Plastic TSOT-23 –55°C to 150°C LTC2050HVCS6#PBF LTC2050HVCS6#TRPBF LTAEK 6-Lead Plastic TSOT-23 0°C to 70°C LTC2050HVIS6#PBF LTC2050HVIS6#TRPBF LTAEK 6-Lead Plastic TSOT-23 –40°C to 85°C LTC2050HVHS6#PBF LTC2050HVHS6#TRPBF LTAEK 6-Lead Plastic TSOT-23 –40°C to 125°C LTC2050CS8#PBF LTC2050CS8#TRPBF 2050 8-Lead Plastic SO 0°C to 70°C LTC2050IS8#PBF LTC2050IS8#TRPBF 2050I 8-Lead Plastic SO –40°C to 85°C LTC2050HVCS8#PBF LTC2050HVCS8#TRPBF 2050HV 8-Lead Plastic SO 0°C to 70°C Rev. E 2 For more information www.analog.com Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Test Circuits Applications Information Typical Applications Package Description Revision History Typical Application Related Parts
ABSOLUTE MAXIMUM RATINGS (Note 1)
Total Supply Voltage (V+ to V–) Operating Temperature Range LTC2050 ...7V LTC2050 .. –40°C to 125°C LTC2050HV...12V LTC2050HVMP ..–55°C to 150°C Input Voltage ..(V+ + 0.3V) to (V– – 0.3V) Specified Temperature Range Output Short-Circuit Duration ... Indefinite (Note 3) ..–55°C to 150°C Storage Temperature Range ..–65°C to 150°C Lead Temperature (Soldering, 10 sec) ...300°C
PIN CONFIGURATION
TOP VIEW TOP VIEW TOP VIEW OUT 1 5 V+ SHDN 1 8 NC OUT 1 6 V+ V– 2 –IN 2 7 V+ V– 2 5 SHDN +IN 3 4 –IN +IN 3 6 OUT +IN 3 4 –IN S5 PACKAGE V– 4 5 NC 5-LEAD PLASTIC TSOT-23 S6 PACKAGE TJMAX = 150°C, θJA = 250°C/W 6-LEAD PLASTIC TSOT-23 S8 PACKAGE TJMAX = 150°C, θJA = 230°C/W 8-LEAD PLASTIC SO TJMAX = 150°C, θJA = 190°C/W
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION SPECIFIED TEMPERATURE RANGE
LTC2050CS5#PBF LTC2050CS5#TRPBF LTAEG 5-Lead Plastic TSOT-23 0°C to 70°C LTC2050IS5#PBF LTC2050IS5#TRPBF LTAEG 5-Lead Plastic TSOT-23 –40°C to 85°C LTC2050HS5#PBF LTC2050HS5#TRPBF LTAEG 5-Lead Plastic TSOT-23 –40°C to 125°C LTC2050HVCS5#PBF LTC2050HVCS5#TRPBF LTAEH 5-Lead Plastic TSOT-23 0°C to 70°C LTC2050HVIS5#PBF LTC2050HVIS5#TRPBF LTAEH 5-Lead Plastic TSOT-23 –40°C to 85°C LTC2050HVHS5#PBF LTC2050HVHS5#TRPBF LTAEH 5-Lead Plastic TSOT-23 –40°C to 125°C LTC2050CS6#PBF LTC2050CS6#TRPBF LTAEJ 6-Lead Plastic TSOT-23 0°C to 70°C LTC2050IS6#PBF LTC2050IS6#TRPBF LTAEJ 6-Lead Plastic TSOT-23 –40°C to 85°C LTC2050HS6#PBF LTC2050HS6#TRPBF LTAEJ 6-Lead Plastic TSOT-23 –40°C to 125°C LTC2050HVMPS6#PBF LTC2050HVMPS6#TRPBF LTHGP 6-Lead Plastic TSOT-23 –55°C to 150°C LTC2050HVCS6#PBF LTC2050HVCS6#TRPBF LTAEK 6-Lead Plastic TSOT-23 0°C to 70°C LTC2050HVIS6#PBF LTC2050HVIS6#TRPBF LTAEK 6-Lead Plastic TSOT-23 –40°C to 85°C LTC2050HVHS6#PBF LTC2050HVHS6#TRPBF LTAEK 6-Lead Plastic TSOT-23 –40°C to 125°C LTC2050CS8#PBF LTC2050CS8#TRPBF 2050 8-Lead Plastic SO 0°C to 70°C LTC2050IS8#PBF LTC2050IS8#TRPBF 2050I 8-Lead Plastic SO –40°C to 85°C LTC2050HVCS8#PBF LTC2050HVCS8#TRPBF 2050HV 8-Lead Plastic SO 0°C to 70°C Rev. E 2 For more information www.analog.com Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Test Circuits Applications Information Typical Applications Package Description Revision History Typical Application Related Parts
