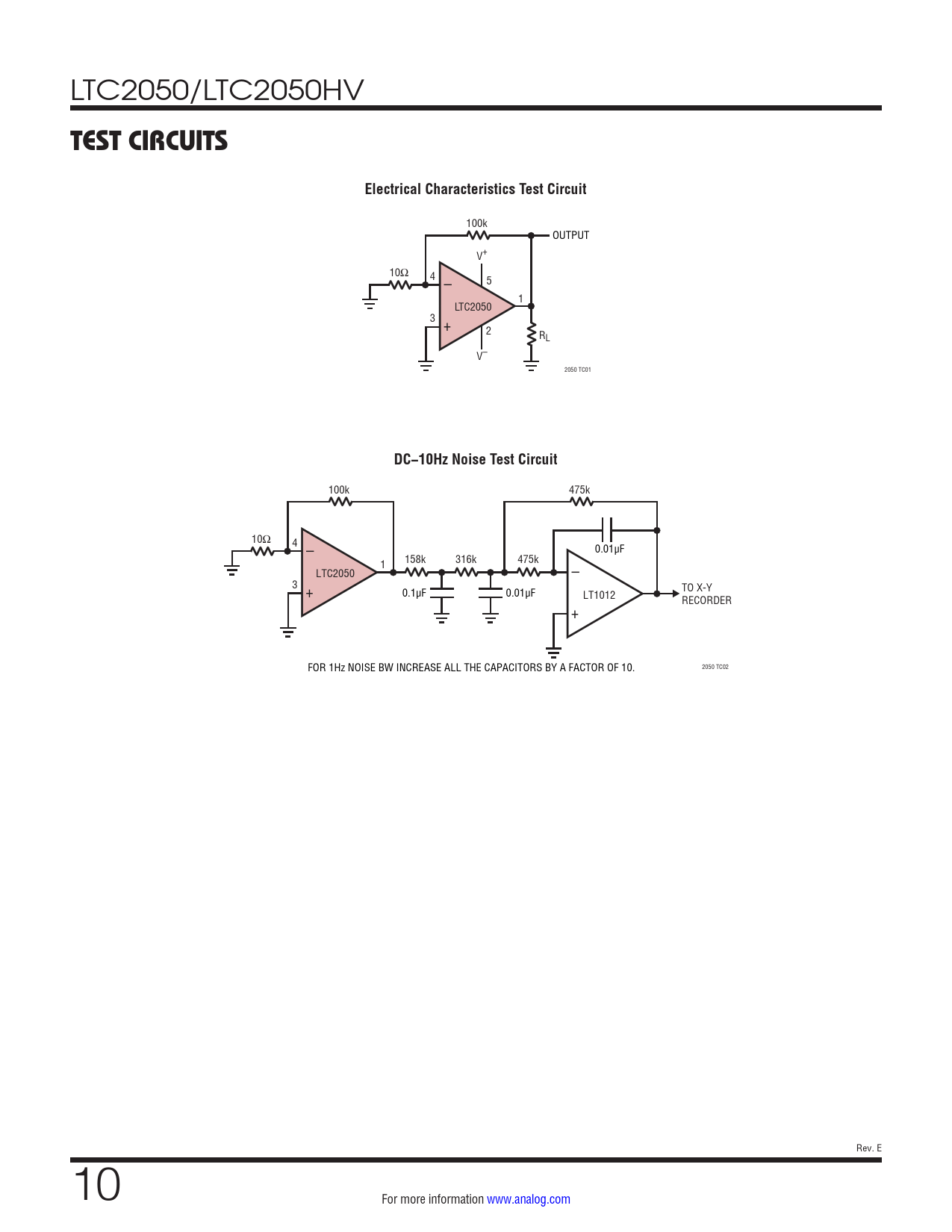

LTC2050/LTC2050HV TEST CIRCUITSElectrical Characteristics Test Circuit 100k OUTPUT V+ 10Ω 4 – 5 1 LTC2050 3 + 2 RL V– 2050 TC01 DC−10Hz Noise Test Circuit 100k 475k 10Ω 4 – 0.01µF 1 158k 316k 475k LTC2050 – 3 + 0.1µF 0.01µF TO X-Y LT1012 RECORDER + 2050 TC02 FOR 1Hz NOISE BW INCREASE ALL THE CAPACITORS BY A FACTOR OF 10. Rev. E 10 For more information www.analog.com Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Test Circuits Applications Information Typical Applications Package Description Revision History Typical Application Related Parts
