Datasheet for Industrial R1540x-Y (Ricoh)
| 制造商 | Ricoh |
| 描述 | High Noise Immunity 42 V Input Voltage 70 mA Voltage Tracker for Industrial Applications |
| 页数 / 页 | 24 / 1 — R1540x-Y Series. High Noise Immunity 42 V Input Voltage 70 mA Voltage … |
| 文件格式/大小 | PDF / 1.3 Mb |
| 文件语言 | 英语 |
R1540x-Y Series. High Noise Immunity 42 V Input Voltage 70 mA Voltage Tracker for Industrial Applications. OVERVIEW
该数据表的模型线
文件文字版本

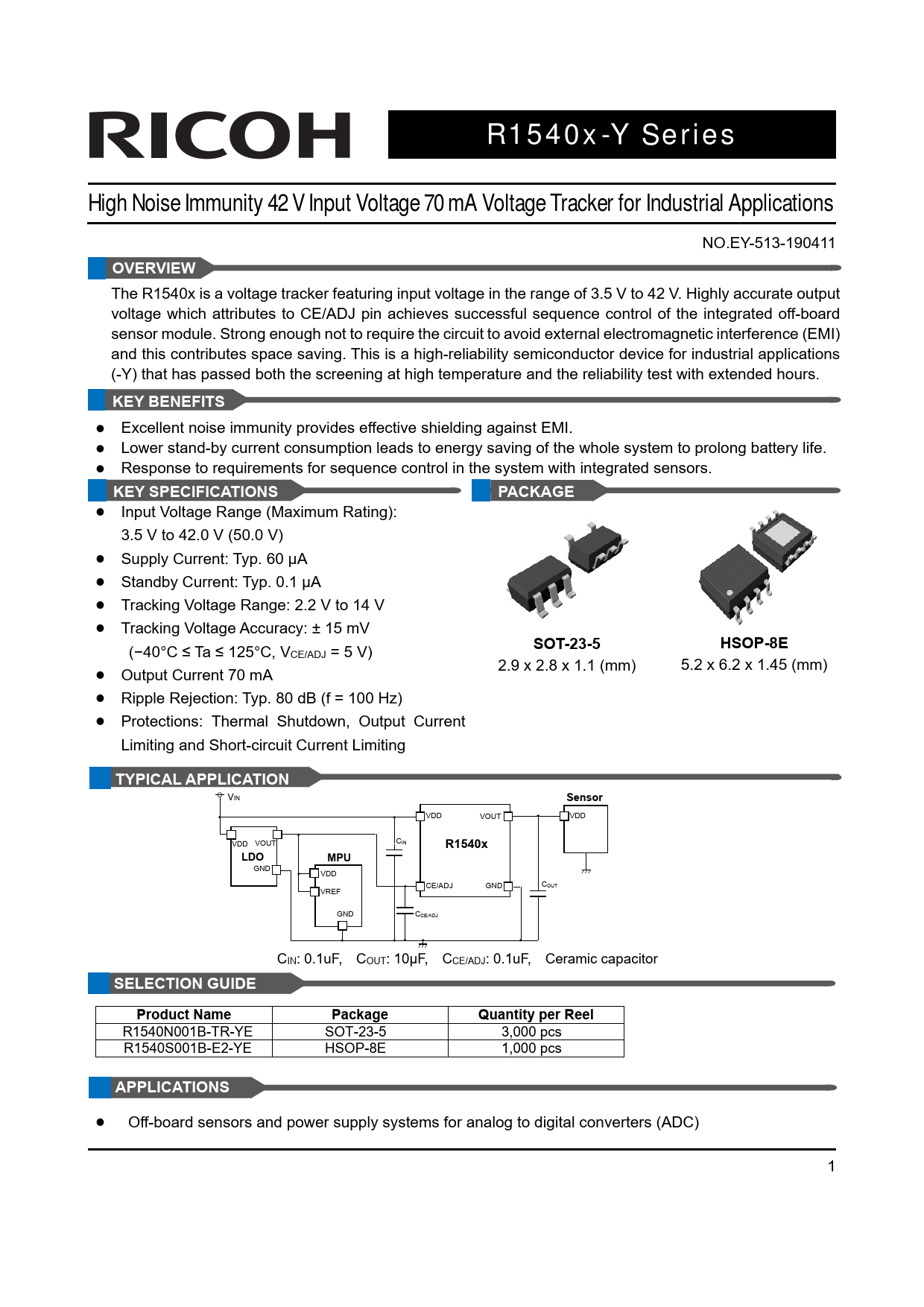

R1540x-Y Series High Noise Immunity 42 V Input Voltage 70 mA Voltage Tracker for Industrial Applications
NO.EY-513-190411
OVERVIEW
The R1540x is a voltage tracker featuring input voltage in the range of 3.5 V to 42 V. Highly accurate output voltage which attributes to CE/ADJ pin achieves successful sequence control of the integrated off-board sensor module. Strong enough not to require the circuit to avoid external electromagnetic interference (EMI) and this contributes space saving. This is a high-reliability semiconductor device for industrial applications (-Y) that has passed both the screening at high temperature and the reliability test with extended hours.
KEY BENEFITS
Excellent noise immunity provides effective shielding against EMI. Lower stand-by current consumption leads to energy saving of the whole system to prolong battery life. Response to requirements for sequence control in the system with integrated sensors.
KEY SPECIFICATIONS PACKAGE
Input Voltage Range (Maximum Rating): 3.5 V to 42.0 V (50.0 V) Supply Current: Typ. 60 µA Standby Current: Typ. 0.1 μA Tracking Voltage Range: 2.2 V to 14 V Tracking Voltage Accuracy: ± 15 mV (−40°C ≤ Ta ≤ 125°C, V
SOT-23-5 HSOP-8E
CE/ADJ = 5 V) 2.9 x 2.8 x 1.1 (mm) 5.2 x 6.2 x 1.45 (mm) Output Current 70 mA Ripple Rejection: Typ. 80 dB (f = 100 Hz) Protections: Thermal Shutdown, Output Current Limiting and Short-circuit Current Limiting
TYPICAL APPLICATION
VIN
Sensor
VDD VOUT VDD CIN VDD VOUT
R1540x LDO MPU
GND VDD CE/ADJ GND COUT VREF GND CCE/ADJ CIN: 0.1uF, COUT: 10µF, CCE/ADJ: 0.1uF, Ceramic capacitor
SELECTION GUIDE Product Name Package Quantity per Reel
R1540N001B-TR-YE SOT-23-5 3,000 pcs R1540S001B-E2-YE HSOP-8E 1,000 pcs
APPLICATIONS
Off-board sensors and power supply systems for analog to digital converters (ADC) 1
