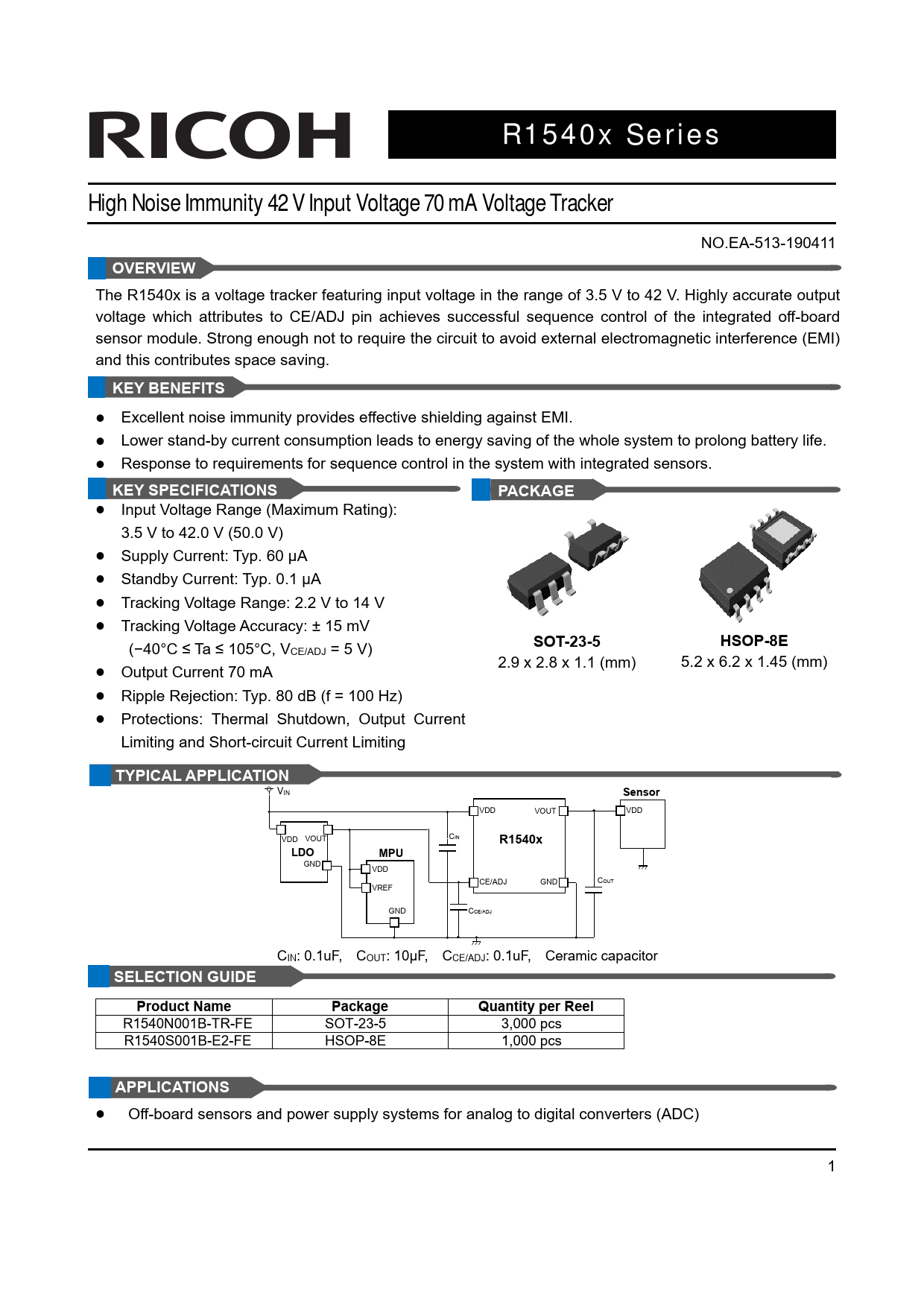

R1540x Series High Noise Immunity 42 V Input Voltage 70 mA Voltage Tracker
NO.EA-513-190411
OVERVIEW
The R1540x is a voltage tracker featuring input voltage in the range of 3.5 V to 42 V. Highly accurate output voltage which attributes to CE/ADJ pin achieves successful sequence control of the integrated off-board sensor module. Strong enough not to require the circuit to avoid external electromagnetic interference (EMI) and this contributes space saving.
KEY BENEFITS
Excellent noise immunity provides effective shielding against EMI. Lower stand-by current consumption leads to energy saving of the whole system to prolong battery life. Response to requirements for sequence control in the system with integrated sensors.
KEY SPECIFICATIONS PACKAGE
Input Voltage Range (Maximum Rating): 3.5 V to 42.0 V (50.0 V) Supply Current: Typ. 60 µA Standby Current: Typ. 0.1 μA Tracking Voltage Range: 2.2 V to 14 V Tracking Voltage Accuracy: ± 15 mV (−40°C ≤ Ta ≤ 105°C, V
SOT-23-5 HSOP-8E
CE/ADJ = 5 V) 2.9 x 2.8 x 1.1 (mm) 5.2 x 6.2 x 1.45 (mm) Output Current 70 mA Ripple Rejection: Typ. 80 dB (f = 100 Hz) Protections: Thermal Shutdown, Output Current Limiting and Short-circuit Current Limiting
TYPICAL APPLICA TION
VIN
Sensor
VDD VOUT VDD CIN VDD VOUT
R1540x LDO MPU
GND VDD CE/ADJ GND COUT VREF GND C CE/ADJ CIN: 0.1uF, COUT: 10µF, CCE/ADJ: 0.1uF, Ceramic capacitor
SELECTION GUIDE Product Name Package Quantity per Reel
R1540N001B-TR-FE SOT-23-5 3,000 pcs R1540S001B-E2-FE HSOP-8E 1,000 pcs
APPLICATIONS
Off-board sensors and power supply systems for analog to digital converters (ADC) 1
