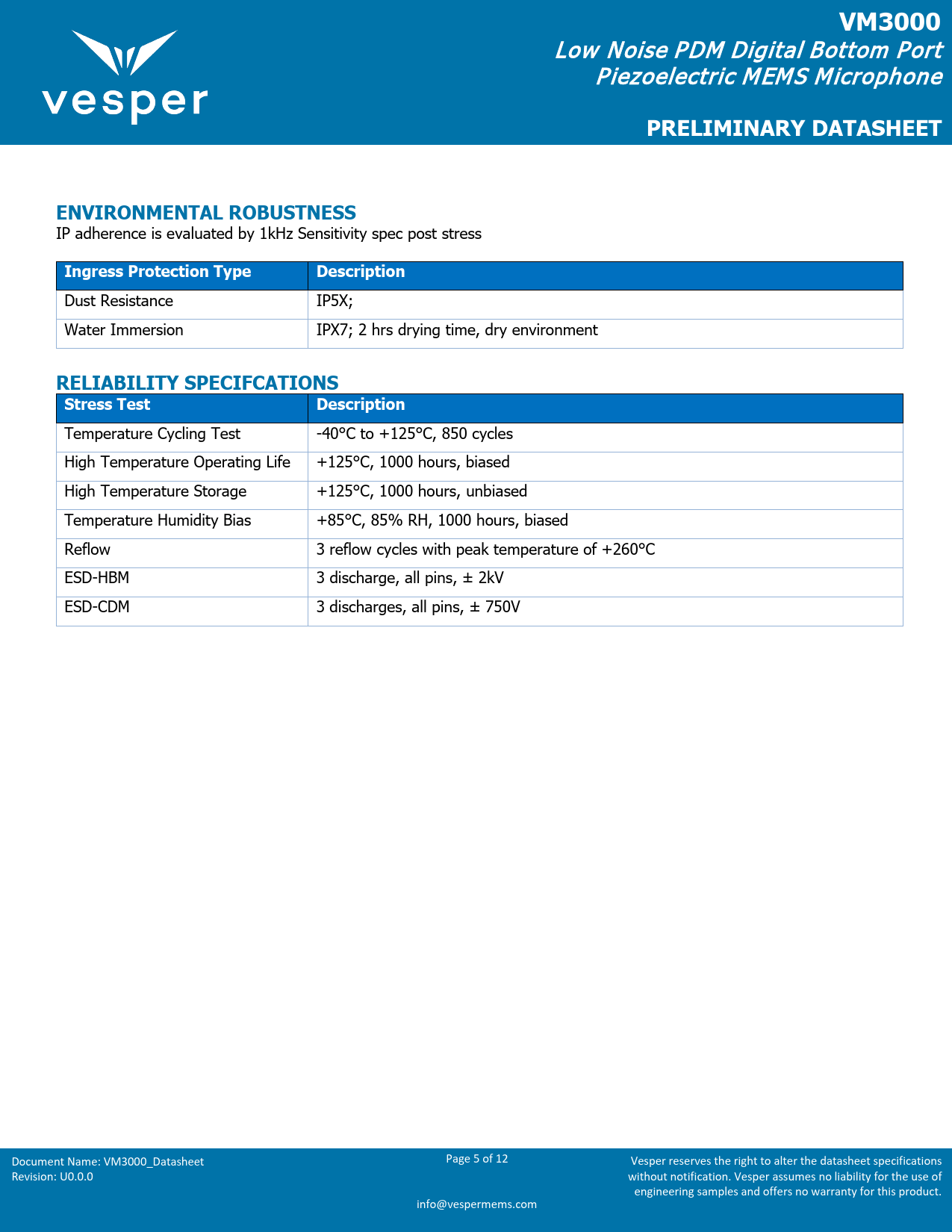

VM3000
Low Noise PDM Digital Bottom Port Piezoelectric MEMS Microphone
PRELIMINARY DATASHEET ENVIRONMENTAL ROBUSTNESS
IP adherence is evaluated by 1kHz Sensitivity spec post stress
Ingress Protection Type Description
Dust Resistance IP5X; Water Immersion IPX7; 2 hrs drying time, dry environment
RELIABILITY SPECIFCATIONS Stress Test Description
Temperature Cycling Test -40°C to +125°C, 850 cycles High Temperature Operating Life +125°C, 1000 hours, biased High Temperature Storage +125°C, 1000 hours, unbiased Temperature Humidity Bias +85°C, 85% RH, 1000 hours, biased Reflow 3 reflow cycles with peak temperature of +260°C ESD-HBM 3 discharge, all pins, ± 2kV ESD-CDM 3 discharges, all pins, ± 750V Document Name: VM3000_Datasheet Page 5 of 12 Vesper reserves the right to alter the datasheet specifications Revision: U0.0.0 without notification. Vesper assumes no liability for the use of engineering samples and offers no warranty for this product. info@vespermems.com Document Outline GENERAL DESCRIPTION FEATURES APPLICATIONS ORDERING INFORMATION BLOCK DIAGRAM TYPICAL APPLICATION CIRCUIT TABLE OF CONTENTS SPECIFICATIONS PDM DIGITAL SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ENVIRONMENTAL ROBUSTNESS RELIABILITY SPECIFCATIONS MICROPHONE OPERATION MICROPHONE MODES TIMING SPECIFICATIONS TYPICAL PERFORMANCE CHARACTERISTICS SOLDER REFLOW PROFILE HANDLING INSTRUCTIONS DIMENSIONS AND PIN LAYOUT PCB DESIGN AND LAND PATTERN LAYOUT TAPE AND REEL SPECIFICATIONS LID MARKING SUPPORTING DOCUMENTS COMPLIANCE INFORMATION CONTACT DETAILS LEGAL INFORMATION REVISION HISTORY
