CA139, CA139A, CA239, CA339, LM339, LM2901, LM3302. Absolute Maximum Ratings. Thermal Information. Operating Conditions
该数据表的模型线
文件文字版本

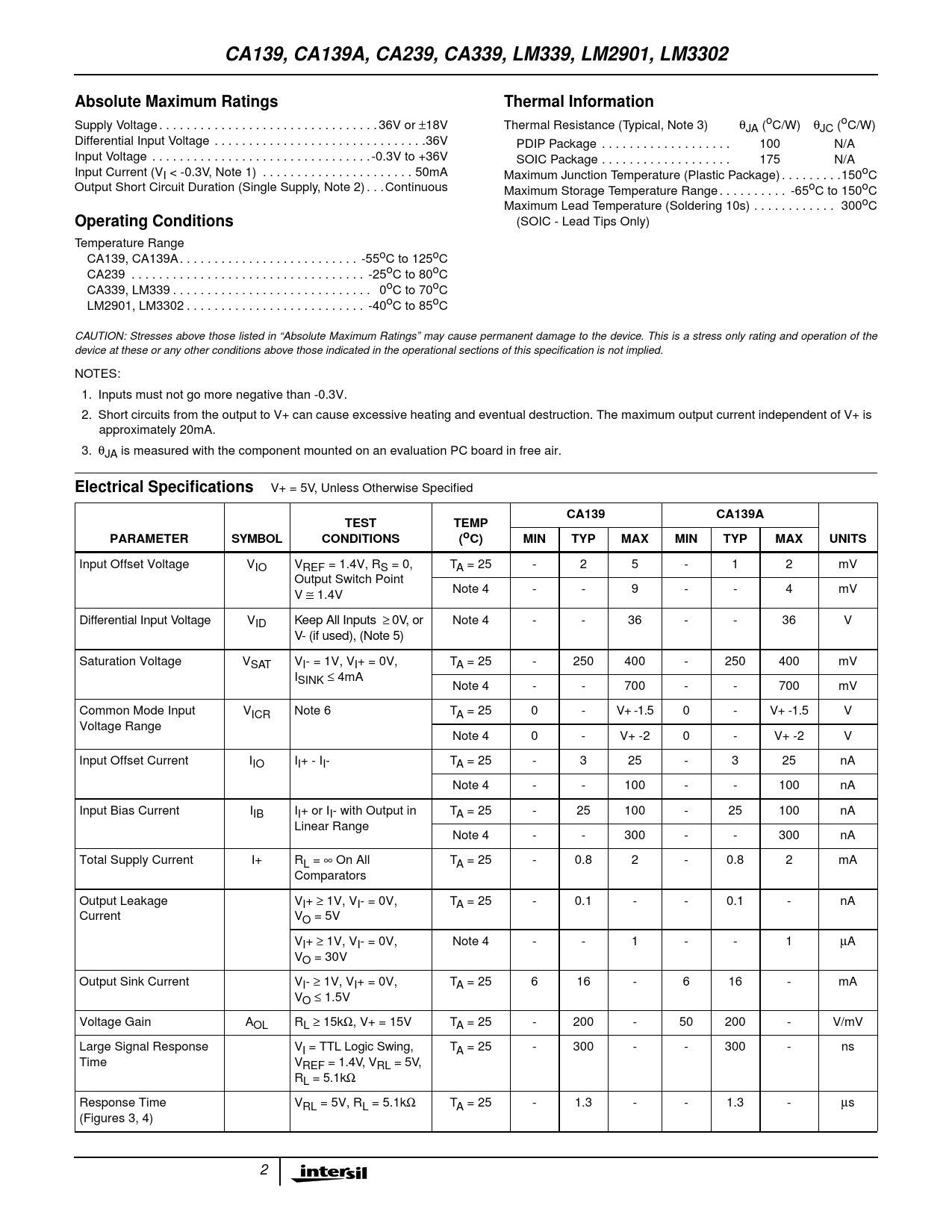

CA139, CA139A, CA239, CA339, LM339, LM2901, LM3302 Absolute Maximum Ratings Thermal Information
Supply Voltage . 36V or ±18V Thermal Resistance (Typical, Note 3) θJA (oC/W) θJC (oC/W) Differential Input Voltage . .36V PDIP Package . 100 N/A Input Voltage . -0.3V to +36V SOIC Package . 175 N/A Input Current (VI < -0.3V, Note 1) . 50mA Maximum Junction Temperature (Plastic Package) . .150oC Output Short Circuit Duration (Single Supply, Note 2) . Continuous Maximum Storage Temperature Range . -65oC to 150oC Maximum Lead Temperature (Soldering 10s) . 300oC
Operating Conditions
(SOIC - Lead Tips Only) Temperature Range CA139, CA139A . -55oC to 125oC CA239 . -25oC to 80oC CA339, LM339 . 0oC to 70oC LM2901, LM3302 . -40oC to 85oC CAUTION: Stresses above those listed in “Absolute Maximum Ratings” may cause permanent damage to the device. This is a stress only rating and operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. NOTES: 1. Inputs must not go more negative than -0.3V. 2. Short circuits from the output to V+ can cause excessive heating and eventual destruction. The maximum output current independent of V+ is approximately 20mA. 3. θJA is measured with the component mounted on an evaluation PC board in free air.
Electrical Specifications
V+ = 5V, Unless Otherwise Specified
CA139 CA139A TEST TEMP PARAMETER SYMBOL CONDITIONS (oC) MIN TYP MAX MIN TYP MAX UNITS
Input Offset Voltage VIO VREF = 1.4V, RS = 0, TA = 25 - 2 5 - 1 2 mV Output Switch Point Note 4 - - 9 - - 4 mV V ≅ 1.4V Differential Input Voltage VID Keep All Inputs ≥ 0V, or Note 4 - - 36 - - 36 V V- (if used), (Note 5) Saturation Voltage VSAT VI- = 1V, VI+ = 0V, TA = 25 - 250 400 - 250 400 mV ISINK ≤ 4mA Note 4 - - 700 - - 700 mV Common Mode Input VICR Note 6 TA = 25 0 - V+ -1.5 0 - V+ -1.5 V Voltage Range Note 4 0 - V+ -2 0 - V+ -2 V Input Offset Current IIO II+ - II- TA = 25 - 3 25 - 3 25 nA Note 4 - - 100 - - 100 nA Input Bias Current IIB II+ or II- with Output in TA = 25 - 25 100 - 25 100 nA Linear Range Note 4 - - 300 - - 300 nA Total Supply Current I+ RL = ∞ On All TA = 25 - 0.8 2 - 0.8 2 mA Comparators Output Leakage VI+ ≥ 1V, VI- = 0V, TA = 25 - 0.1 - - 0.1 - nA Current VO = 5V VI+ ≥ 1V, VI- = 0V, Note 4 - - 1 - - 1 µA VO = 30V Output Sink Current VI- ≥ 1V, VI+ = 0V, TA = 25 6 16 - 6 16 - mA VO ≤ 1.5V Voltage Gain AOL RL ≥ 15kΩ, V+ = 15V TA = 25 - 200 - 50 200 - V/mV Large Signal Response VI = TTL Logic Swing, TA = 25 - 300 - - 300 - ns Time VREF = 1.4V, VRL = 5V, RL = 5.1kΩ Response Time VRL = 5V, RL = 5.1kΩ TA = 25 - 1.3 - - 1.3 - µs (Figures 3, 4) 2
Supply Voltage . 36V or ±18V Thermal Resistance (Typical, Note 3) θJA (oC/W) θJC (oC/W) Differential Input Voltage . .36V PDIP Package . 100 N/A Input Voltage . -0.3V to +36V SOIC Package . 175 N/A Input Current (VI < -0.3V, Note 1) . 50mA Maximum Junction Temperature (Plastic Package) . .150oC Output Short Circuit Duration (Single Supply, Note 2) . Continuous Maximum Storage Temperature Range . -65oC to 150oC Maximum Lead Temperature (Soldering 10s) . 300oC
Operating Conditions
(SOIC - Lead Tips Only) Temperature Range CA139, CA139A . -55oC to 125oC CA239 . -25oC to 80oC CA339, LM339 . 0oC to 70oC LM2901, LM3302 . -40oC to 85oC CAUTION: Stresses above those listed in “Absolute Maximum Ratings” may cause permanent damage to the device. This is a stress only rating and operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. NOTES: 1. Inputs must not go more negative than -0.3V. 2. Short circuits from the output to V+ can cause excessive heating and eventual destruction. The maximum output current independent of V+ is approximately 20mA. 3. θJA is measured with the component mounted on an evaluation PC board in free air.
Electrical Specifications
V+ = 5V, Unless Otherwise Specified
CA139 CA139A TEST TEMP PARAMETER SYMBOL CONDITIONS (oC) MIN TYP MAX MIN TYP MAX UNITS
Input Offset Voltage VIO VREF = 1.4V, RS = 0, TA = 25 - 2 5 - 1 2 mV Output Switch Point Note 4 - - 9 - - 4 mV V ≅ 1.4V Differential Input Voltage VID Keep All Inputs ≥ 0V, or Note 4 - - 36 - - 36 V V- (if used), (Note 5) Saturation Voltage VSAT VI- = 1V, VI+ = 0V, TA = 25 - 250 400 - 250 400 mV ISINK ≤ 4mA Note 4 - - 700 - - 700 mV Common Mode Input VICR Note 6 TA = 25 0 - V+ -1.5 0 - V+ -1.5 V Voltage Range Note 4 0 - V+ -2 0 - V+ -2 V Input Offset Current IIO II+ - II- TA = 25 - 3 25 - 3 25 nA Note 4 - - 100 - - 100 nA Input Bias Current IIB II+ or II- with Output in TA = 25 - 25 100 - 25 100 nA Linear Range Note 4 - - 300 - - 300 nA Total Supply Current I+ RL = ∞ On All TA = 25 - 0.8 2 - 0.8 2 mA Comparators Output Leakage VI+ ≥ 1V, VI- = 0V, TA = 25 - 0.1 - - 0.1 - nA Current VO = 5V VI+ ≥ 1V, VI- = 0V, Note 4 - - 1 - - 1 µA VO = 30V Output Sink Current VI- ≥ 1V, VI+ = 0V, TA = 25 6 16 - 6 16 - mA VO ≤ 1.5V Voltage Gain AOL RL ≥ 15kΩ, V+ = 15V TA = 25 - 200 - 50 200 - V/mV Large Signal Response VI = TTL Logic Swing, TA = 25 - 300 - - 300 - ns Time VREF = 1.4V, VRL = 5V, RL = 5.1kΩ Response Time VRL = 5V, RL = 5.1kΩ TA = 25 - 1.3 - - 1.3 - µs (Figures 3, 4) 2
