Datasheet ICM7555 (NXP) - 10
| 制造商 | NXP |
| 描述 | General purpose CMOS timer |
| 页数 / 页 | 22 / 10 — NXP Semiconductors. ICM7555. General purpose CMOS timer |
| 文件格式/大小 | PDF / 125 Kb |
| 文件语言 | 英语 |
NXP Semiconductors. ICM7555. General purpose CMOS timer
该数据表的模型线
ICM7555
文件文字版本
NXP Semiconductors ICM7555 General purpose CMOS timer

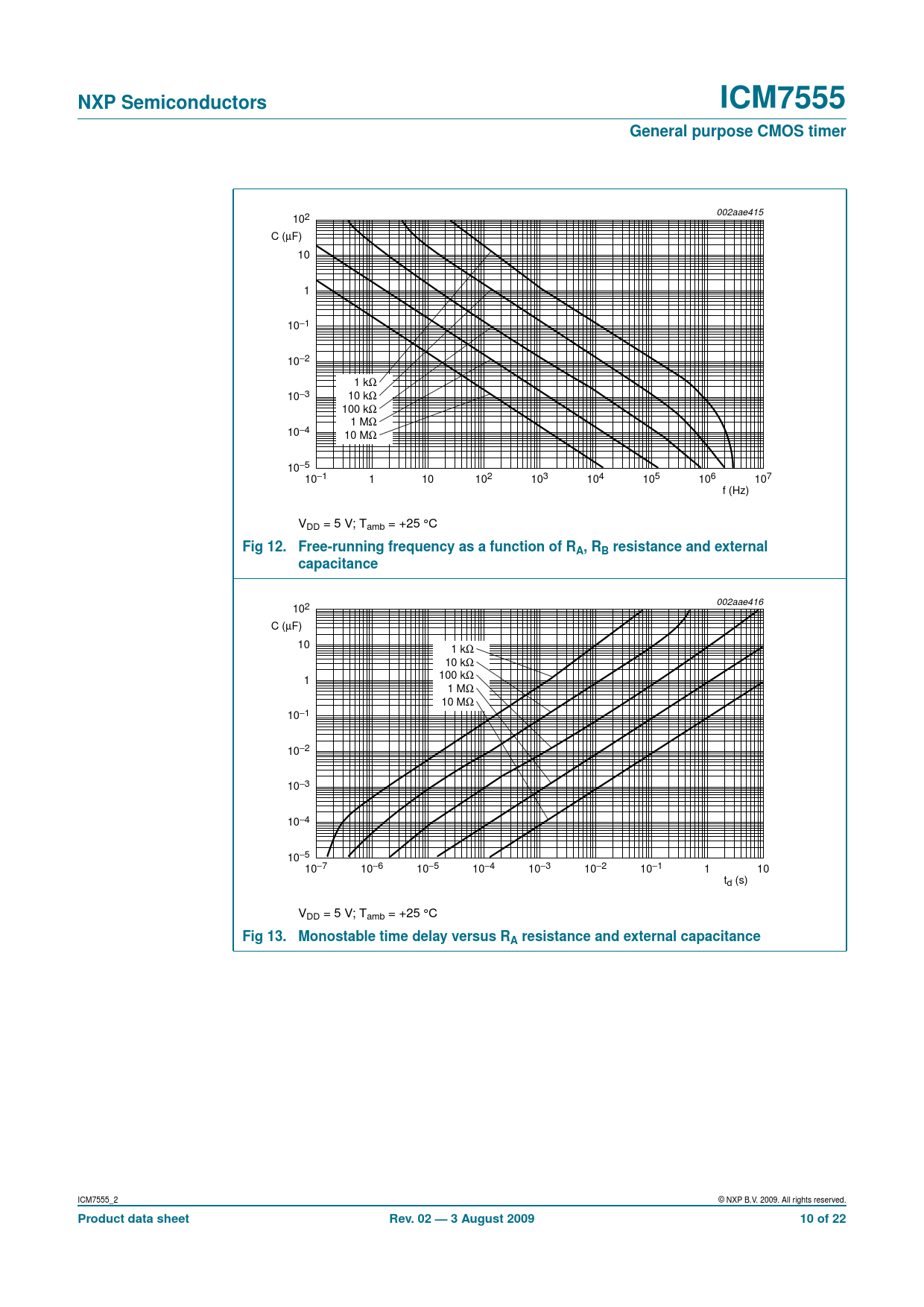

002aae415 102 C (µF) 10 1 10−1 10−2 1 kΩ 10−3 10 kΩ 100 kΩ 1 MΩ 10−4 10 MΩ 10−5 10−1 1 106 105 104 103 102 10 107 f (Hz) VDD = 5 V; Tamb = +25 °C
Fig 12. Free-running frequency as a function of RA, RB resistance and external capacitance
002aae416 102 C (µF) 10 1 kΩ 10 kΩ 1 100 kΩ 1 MΩ 10 MΩ 10−1 10−2 10−3 10−4 10−5 10−7 10−1 10−2 10−3 10−4 10−5 10−6 1 10 td (s) VDD = 5 V; Tamb = +25 °C
Fig 13. Monostable time delay versus RA resistance and external capacitance
ICM7555_2 © NXP B.V. 2009. All rights reserved.
Product data sheet Rev. 02 — 3 August 2009 10 of 22
