Datasheet SEP8706 (Honeywell)
| 制造商 | Honeywell |
| 描述 | AlGaAs Infrared Emitting Diode |
| 页数 / 页 | 4 / 1 — SEP8706 AlGaAs Infrared Emitting Diode. FEATURES. DESCRIPTION. OUTLINE … |
| 文件格式/大小 | PDF / 430 Kb |
| 文件语言 | 英语 |
SEP8706 AlGaAs Infrared Emitting Diode. FEATURES. DESCRIPTION. OUTLINE DIMENSIONS
该数据表的模型线
文件文字版本

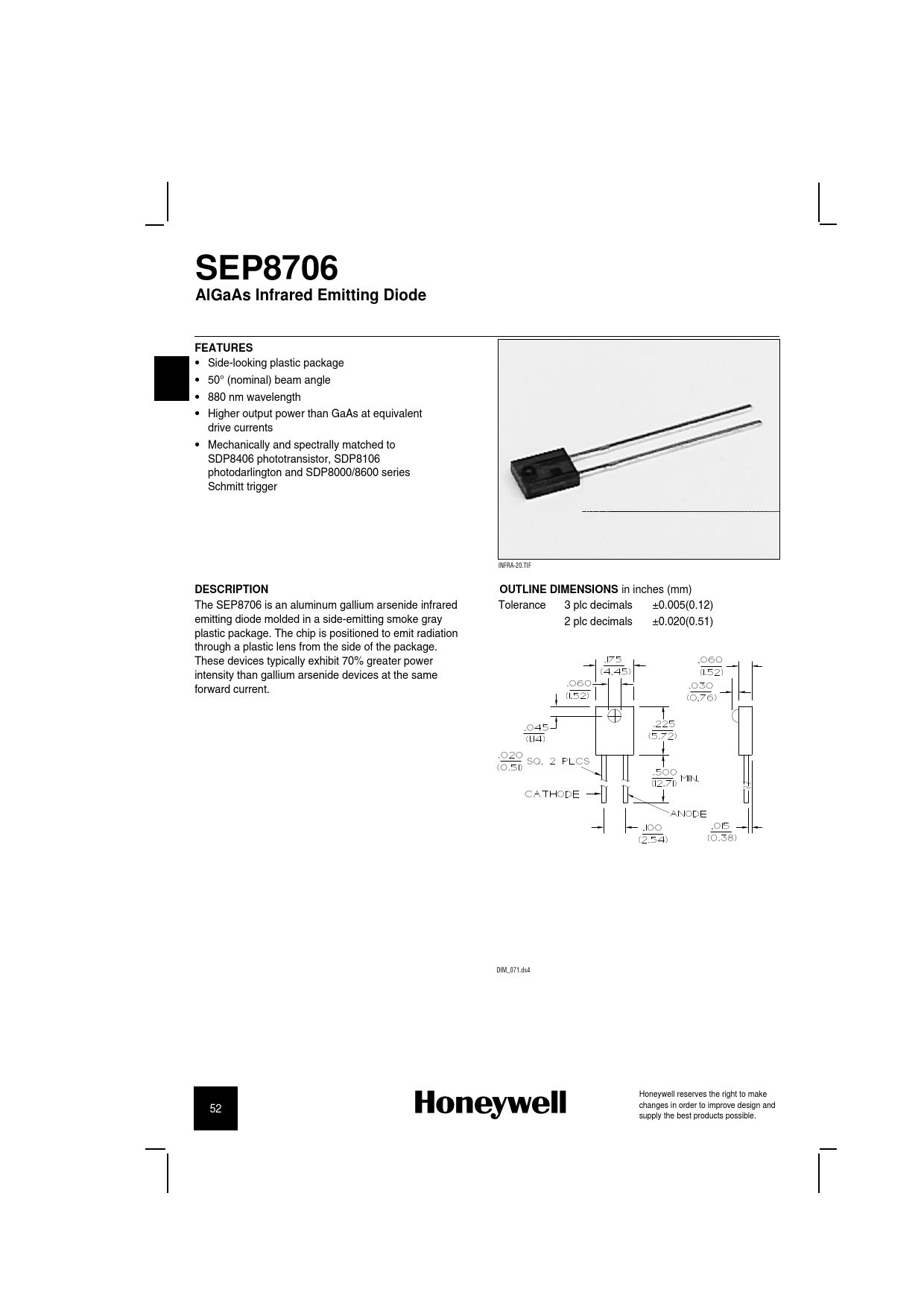

SEP8706 AlGaAs Infrared Emitting Diode FEATURES
• Side-looking plastic package • 50¡ (nominal) beam angle • 880 nm wavelength • Higher output power than GaAs at equivalent drive currents • Mechanically and spectrally matched to SDP8406 phototransistor, SDP8106 photodarlington and SDP8000/8600 series Schmitt trigger INFRA-20.TIF
DESCRIPTION OUTLINE DIMENSIONS
in inches (mm) The SEP8706 is an aluminum gallium arsenide infrared Tolerance 3 plc decimals ±0.005(0.12) emitting diode molded in a side-emitting smoke gray 2 plc decimals ±0.020(0.51) plastic package. The chip is positioned to emit radiation through a plastic lens from the side of the package. These devices typically exhibit 70% greater power intensity than gallium arsenide devices at the same forward current. DIM_071.ds4 Honeywell reserves the right to make changes in order to improve design and 52 h supply the best products possible.
• Side-looking plastic package • 50¡ (nominal) beam angle • 880 nm wavelength • Higher output power than GaAs at equivalent drive currents • Mechanically and spectrally matched to SDP8406 phototransistor, SDP8106 photodarlington and SDP8000/8600 series Schmitt trigger INFRA-20.TIF
DESCRIPTION OUTLINE DIMENSIONS
in inches (mm) The SEP8706 is an aluminum gallium arsenide infrared Tolerance 3 plc decimals ±0.005(0.12) emitting diode molded in a side-emitting smoke gray 2 plc decimals ±0.020(0.51) plastic package. The chip is positioned to emit radiation through a plastic lens from the side of the package. These devices typically exhibit 70% greater power intensity than gallium arsenide devices at the same forward current. DIM_071.ds4 Honeywell reserves the right to make changes in order to improve design and 52 h supply the best products possible.
