| 描述 | Automotive P-Channel 60 V (D-S) 175 °C MOSFET |
| 页数 / 页 | 10 / 9 — PAD Pattern. RECOMMENDED MINIMUM PAD FOR PowerPAK® SO-8L SINGLE |
| 文件格式/大小 | PDF / 212 Kb |
| 文件语言 | 英语 |
PAD Pattern. RECOMMENDED MINIMUM PAD FOR PowerPAK® SO-8L SINGLE
该数据表的模型线
文件文字版本
PAD Pattern
www.vishay.com Vishay Siliconix

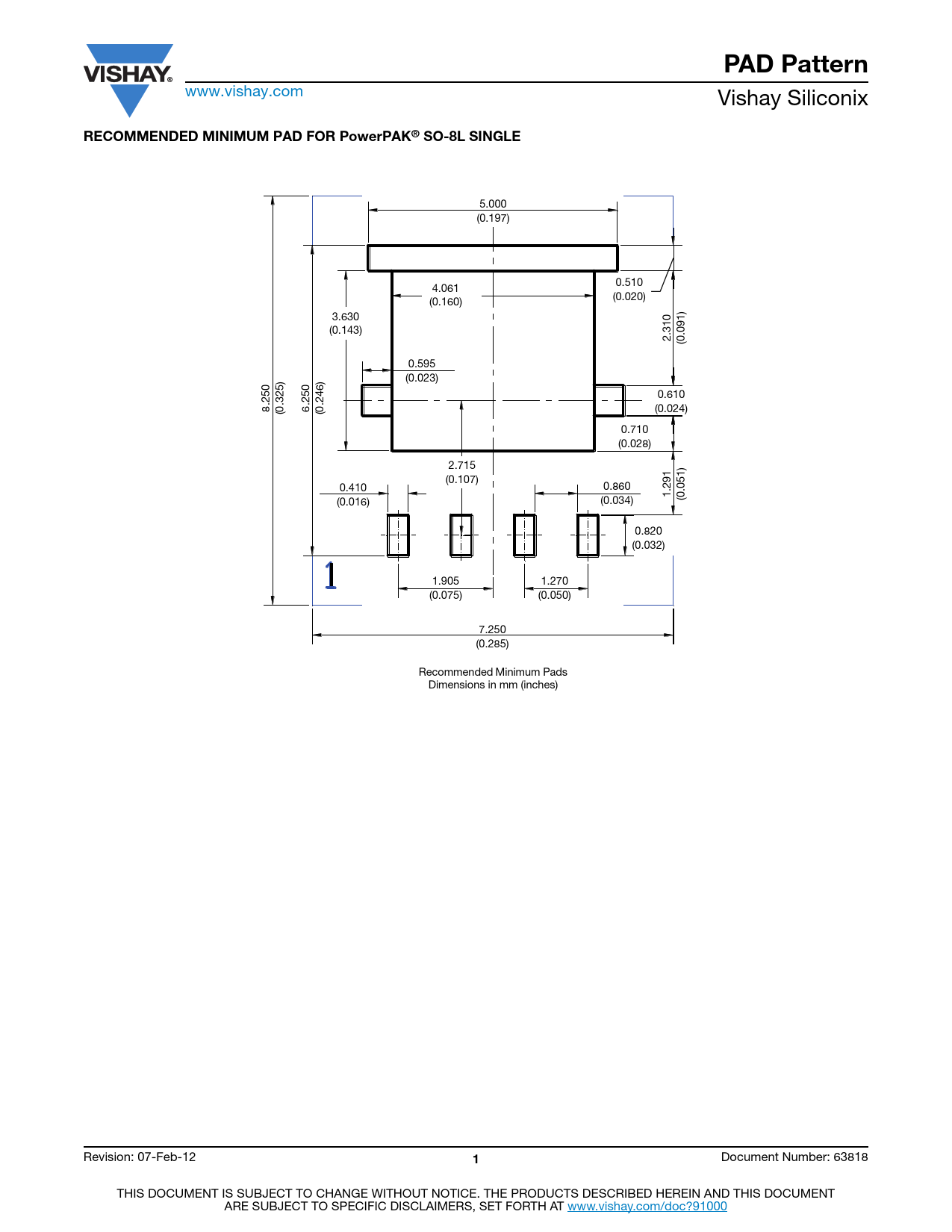

RECOMMENDED MINIMUM PAD FOR PowerPAK® SO-8L SINGLE
5.000 (0.197) 0.510 4.061 (0.020) (0.160) 3.630 (0.143) 2.310 (0.091) 0.595 (0.023) 0.610 8.250 (0.024) (0.325) 6.250 (0.246) 0.710 (0.028) 2.715 (0.107) 0.410 0.860 1.291 (0.051) (0.016) (0.034) 0.820 (0.032) 1.905 1.270 (0.075) (0.050) 7.250 (0.285) Recommended Minimum Pads Dimensions in mm (inches) Revision: 07-Feb-12
1
Document Number: 63818 THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
www.vishay.com Vishay Siliconix
RECOMMENDED MINIMUM PAD FOR PowerPAK® SO-8L SINGLE
5.000 (0.197) 0.510 4.061 (0.020) (0.160) 3.630 (0.143) 2.310 (0.091) 0.595 (0.023) 0.610 8.250 (0.024) (0.325) 6.250 (0.246) 0.710 (0.028) 2.715 (0.107) 0.410 0.860 1.291 (0.051) (0.016) (0.034) 0.820 (0.032) 1.905 1.270 (0.075) (0.050) 7.250 (0.285) Recommended Minimum Pads Dimensions in mm (inches) Revision: 07-Feb-12
