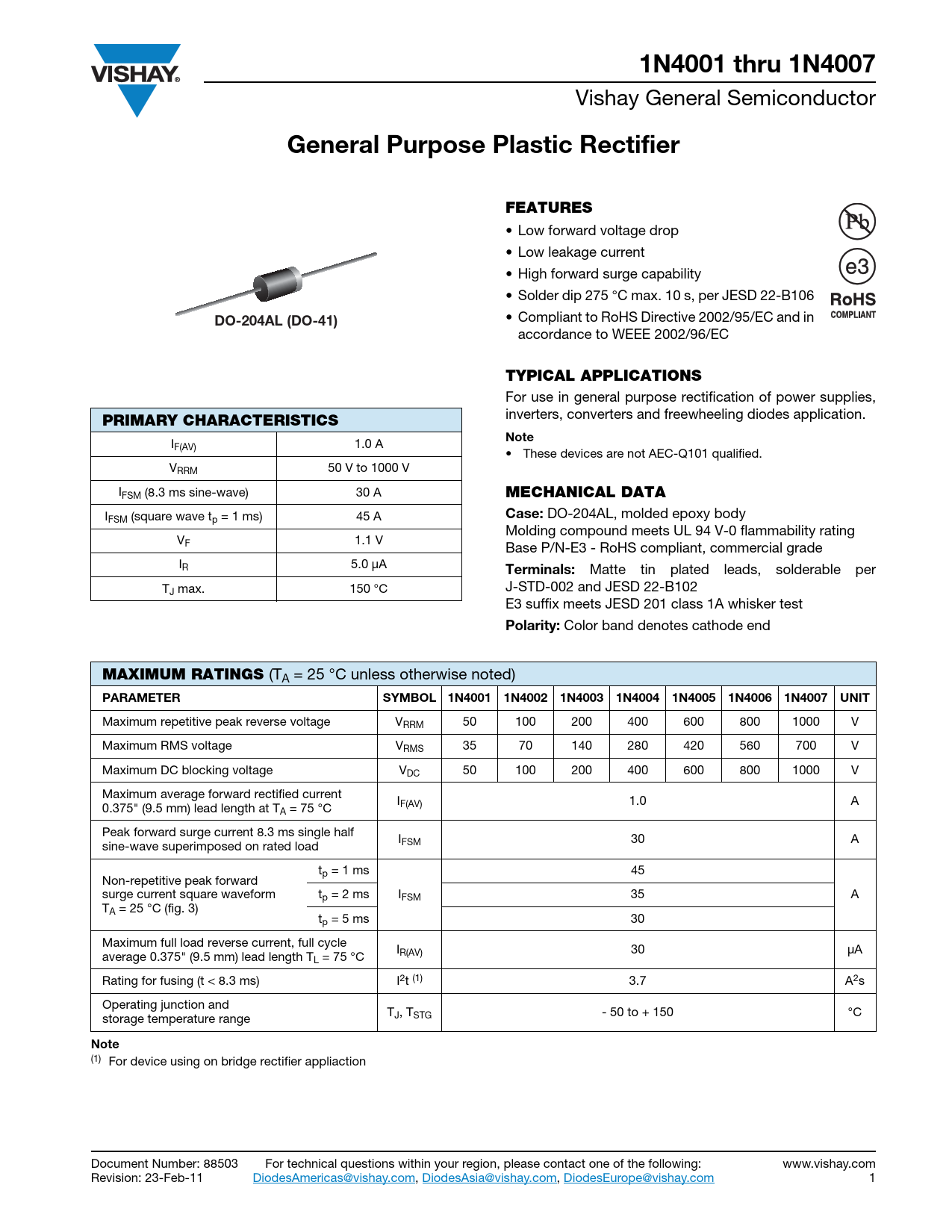

1N4001 thru 1N4007. General Purpose Plastic Rectifier. FEATURES. DO-204AL (DO-41). TYPICAL APPLICATIONS. PRIMARY CHARACTERISTICS
该数据表的模型线
文件文字版本
1N4001 thru 1N4007
Vishay General Semiconductor
General Purpose Plastic Rectifier FEATURES
• Low forward voltage drop • Low leakage current • High forward surge capability • Solder dip 275 °C max. 10 s, per JESD 22-B106 • Compliant to RoHS Directive 2002/95/EC and in
DO-204AL (DO-41)
accordance to WEEE 2002/96/EC
TYPICAL APPLICATIONS
For use in general purpose rectification of power supplies, inverters, converters and freewheeling diodes application.
PRIMARY CHARACTERISTICS Note
IF(AV) 1.0 A • These devices are not AEC-Q101 qualified. VRRM 50 V to 1000 V IFSM (8.3 ms sine-wave) 30 A
MECHANICAL DATA
I
Case:
DO-204AL, molded epoxy body FSM (square wave tp = 1 ms) 45 A Molding compound meets UL 94 V-0 flammability rating VF 1.1 V Base P/N-E3 - RoHS compliant, commercial grade IR 5.0 μA
Terminals:
Matte tin plated leads, solderable per T J-STD-002 and JESD 22-B102 J max. 150 °C E3 suffix meets JESD 201 class 1A whisker test
Polarity:
Color band denotes cathode end
MAXIMUM RATINGS
(TA = 25 °C unless otherwise noted)
PARAMETER SYMBOL 1N4001 1N4002 1N4003 1N4004 1N4005 1N4006 1N4007 UNIT
Maximum repetitive peak reverse voltage VRRM 50 100 200 400 600 800 1000 V Maximum RMS voltage VRMS 35 70 140 280 420 560 700 V Maximum DC blocking voltage VDC 50 100 200 400 600 800 1000 V Maximum average forward rectified current I 0.375" (9.5 mm) lead length at T F(AV) 1.0 A A = 75 °C Peak forward surge current 8.3 ms single half I sine-wave superimposed on rated load FSM 30 A tp = 1 ms 45 Non-repetitive peak forward surge current square waveform tp = 2 ms IFSM 35 A TA = 25 °C (fig. 3) tp = 5 ms 30 Maximum full load reverse current, full cycle I average 0.375" (9.5 mm) lead length T R(AV) 30 μA L = 75 °C Rating for fusing (t < 8.3 ms) I2t (1) 3.7 A2s Operating junction and T storage temperature range J, TSTG - 50 to + 150 °C
Note
(1) For device using on bridge rectifier appliaction Document Number: 88503 For technical questions within your region, please contact one of the following: www.vishay.com Revision: 23-Feb-11 DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com 1
