TMD2635 −
Electrical Characteristics

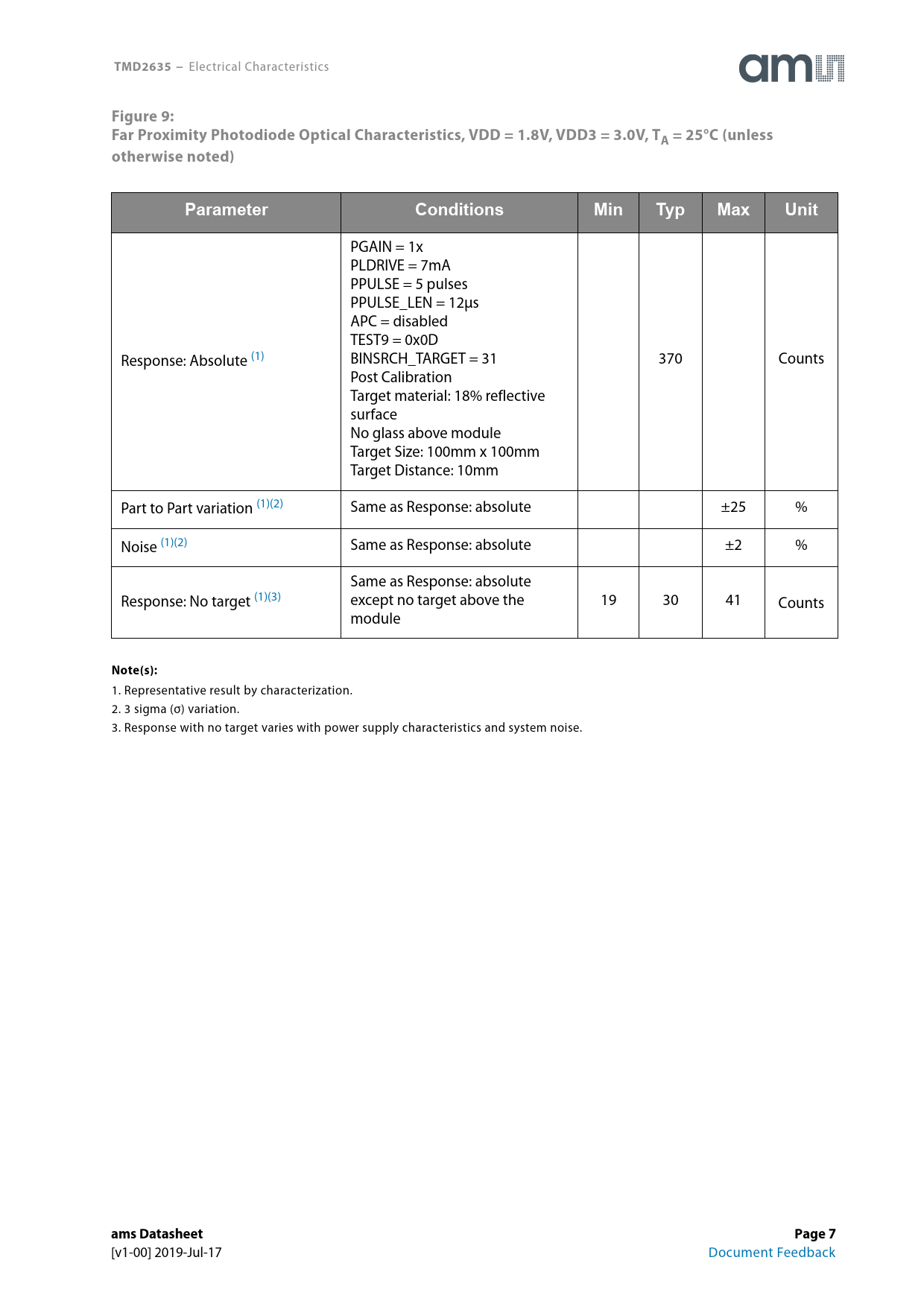

Figure 9: Far Proximity Photodiode Optical Characteristics, VDD = 1.8V, VDD3 = 3.0V, TA = 25°C (unless otherwise noted) Parameter Conditions Min Typ Max Unit
PGAIN = 1x PLDRIVE = 7mA PPULSE = 5 pulses PPULSE_LEN = 12μs APC = disabled TEST9 = 0x0D Response: Absolute (1) BINSRCH_TARGET = 31 370 Counts Post Calibration Target material: 18% reflective surface No glass above module Target Size: 100mm x 100mm Target Distance: 10mm Part to Part variation (1)(2) Same as Response: absolute ±25 % Noise (1)(2) Same as Response: absolute ±2 % Same as Response: absolute Response: No target (1)(3) except no target above the 19 30 41 Counts module
Note(s):
1. Representative result by characterization. 2. 3 sigma (σ) variation. 3. Response with no target varies with power supply characteristics and system noise.
ams Datasheet Page 7
