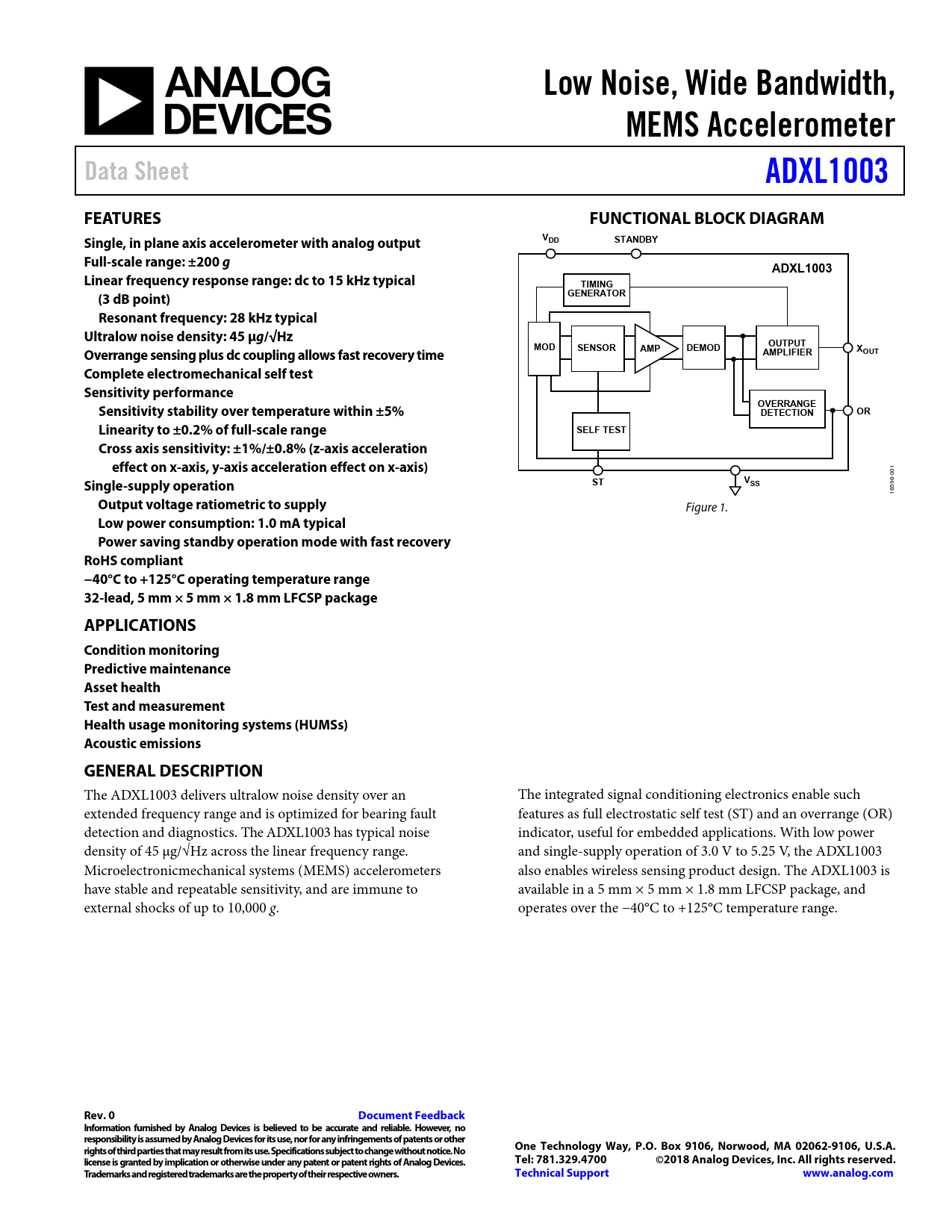

Low Noise, Wide Bandwidth, MEMS Accelerometer Data Sheet ADXL1003 FEATURES FUNCTIONAL BLOCK DIAGRAM V Single, in plane axis accelerometer with analog output DD STANDBY Full-scale range: ±200 g ADXL1003 Linear frequency response range: dc to 15 kHz typical TIMING GENERATOR (3 dB point) Resonant frequency: 28 kHz typical Ultralow noise density: 45 μg /√Hz MOD SENSOR OUTPUT AMP DEMOD X Overrange sensing plus dc coupling allows fast recovery time AMPLIFIER OUT Complete electromechanical self test Sensitivity performance OVERRANGE Sensitivity stability over temperature within ±5% DETECTION OR Linearity to ±0.2% of full-scale range SELF TEST Cross axis sensitivity: ±1%/±0.8% (z-axis acceleration effect on x-axis, y-axis acceleration effect on x-axis)
001
Single-supply operation ST VSS
96- 165
Output voltage ratiometric to supply
Figure 1.
Low power consumption: 1.0 mA typical Power saving standby operation mode with fast recovery RoHS compliant −40°C to +125°C operating temperature range 32-lead, 5 mm × 5 mm × 1.8 mm LFCSP package APPLICATIONS Condition monitoring Predictive maintenance Asset health Test and measurement Health usage monitoring systems (HUMSs) Acoustic emissions GENERAL DESCRIPTION
The ADXL1003 delivers ultralow noise density over an The integrated signal conditioning electronics enable such extended frequency range and is optimized for bearing fault features as full electrostatic self test (ST) and an overrange (OR) detection and diagnostics. The ADXL1003 has typical noise indicator, useful for embedded applications. With low power density of 45 μg/√Hz across the linear frequency range. and single-supply operation of 3.0 V to 5.25 V, the ADXL1003 Microelectronicmechanical systems (MEMS) accelerometers also enables wireless sensing product design. The ADXL1003 is have stable and repeatable sensitivity, and are immune to available in a 5 mm × 5 mm × 1.8 mm LFCSP package, and external shocks of up to 10,000 g. operates over the −40°C to +125°C temperature range.
