Datasheet ADXL375 (Analog Devices) - 5
| 制造商 | Analog Devices |
| 描述 | 3-Axis, ±200 g Digital MEMS Accelerometer |
| 页数 / 页 | 10 / 5 — SENSOR INPUT. SENSITIVITY. 0 g. OFFSET. NOISE. OUTPUT DATA RATE AND … |
| 文件格式/大小 | PDF / 174 Kb |
| 文件语言 | 英语 |
SENSOR INPUT. SENSITIVITY. 0 g. OFFSET. NOISE. OUTPUT DATA RATE AND BANDWIDTH. SELF-TEST. POWER SUPPLY. TEMPERATURE. WEIGHT
该数据表的模型线
文件文字版本

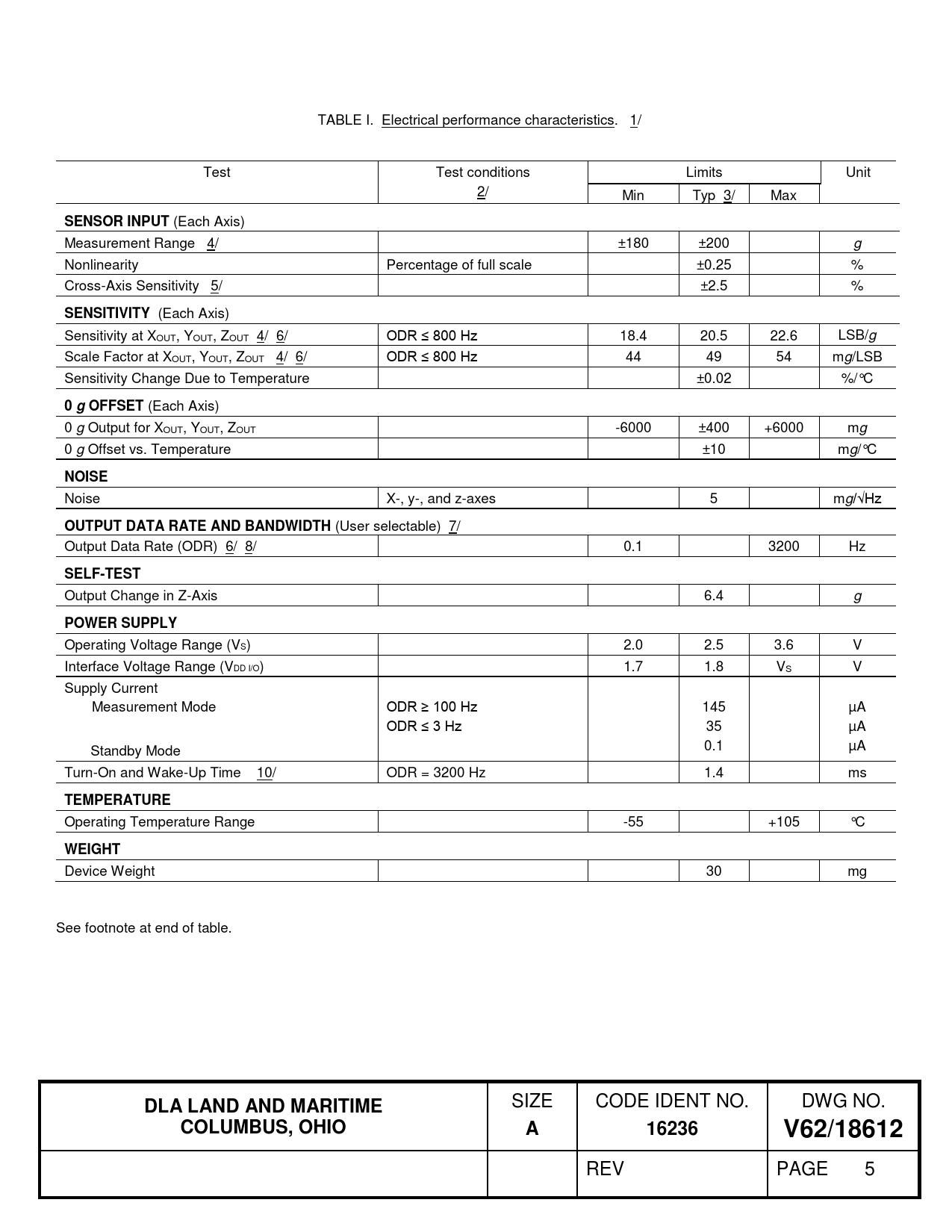

TABLE I. Electrical performance characteristics. 1/ Test Test conditions Limits Unit 2/ Min Typ 3/ Max
SENSOR INPUT
(Each Axis) Measurement Range 4/ ±180 ±200 g Nonlinearity Percentage of full scale ±0.25 % Cross-Axis Sensitivity 5/ ±2.5 %
SENSITIVITY
(Each Axis) Sensitivity at XOUT, YOUT, ZOUT 4/ 6/ ODR ≤ 800 Hz 18.4 20.5 22.6 LSB/g Scale Factor at XOUT, YOUT, ZOUT 4/ 6/ ODR ≤ 800 Hz 44 49 54 mg/LSB Sensitivity Change Due to Temperature ±0.02 %/°C
0 g OFFSET
(Each Axis) 0 g Output for XOUT, YOUT, ZOUT -6000 ±400 +6000 mg 0 g Offset vs. Temperature ±10 mg/°C
NOISE
Noise X-, y-, and z-axes 5 mg/√Hz
OUTPUT DATA RATE AND BANDWIDTH
(User selectable) 7/ Output Data Rate (ODR) 6/ 8/ 0.1 3200 Hz
SELF-TEST
Output Change in Z-Axis 6.4 g
POWER SUPPLY
Operating Voltage Range (VS) 2.0 2.5 3.6 V Interface Voltage Range (VDD I/O) 1.7 1.8 VS V Supply Current Measurement Mode ODR ≥ 100 Hz 145 µA ODR ≤ 3 Hz 35 µA Standby Mode 0.1 µA Turn-On and Wake-Up Time 10/ ODR = 3200 Hz 1.4 ms
TEMPERATURE
Operating Temperature Range -55 +105 °C
WEIGHT
Device Weight 30 mg See footnote at end of table.
